Fuel Tank Skid Plate: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a support under the skid plate.
  2. Remove the nuts that attach the skid plate to the fuel tank crossmember and the frame crossmember (Fig 1 ).

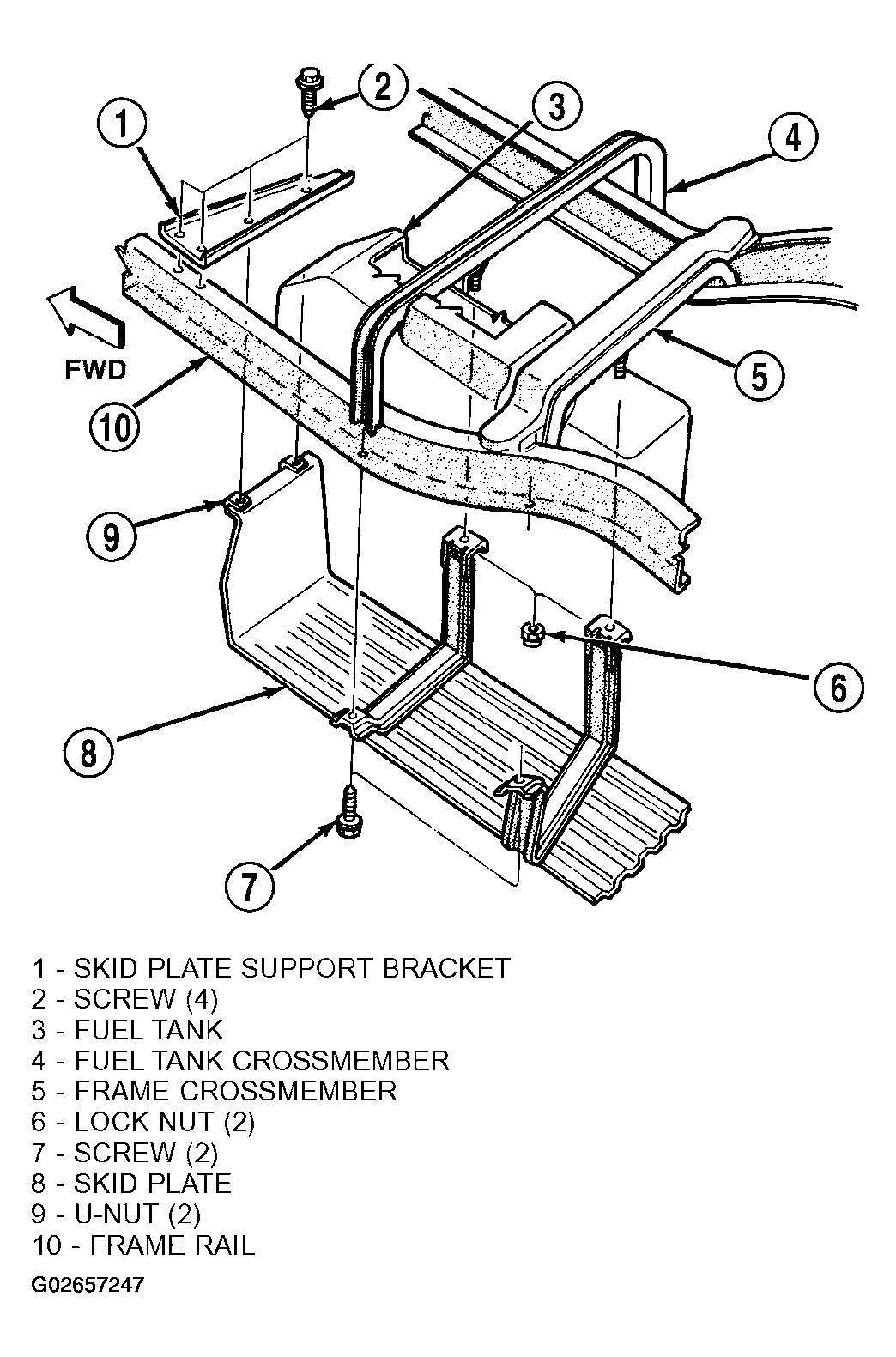

    Fig 1: Removing Nuts That Attach Skid Plate To Fuel Tank Crossmember And Frame Crossmember
    G02657247Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the screws that attach the skid plate to the support bracket and the frame side rail.
  4. Remove the skid plate from the vehicle.
