Front Bumper: Removal

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open hood.
  2. Support front bumper on a suitable lifting device.
  3. Disconnect fog lamp electrical connectors, if equipped.
  4. Remove the push-in fasteners attaching air deflector to bottom of bumper fascia.
  5. Remove the bolts attaching the bumper to the inner bumper bracket. (Fig 1 )

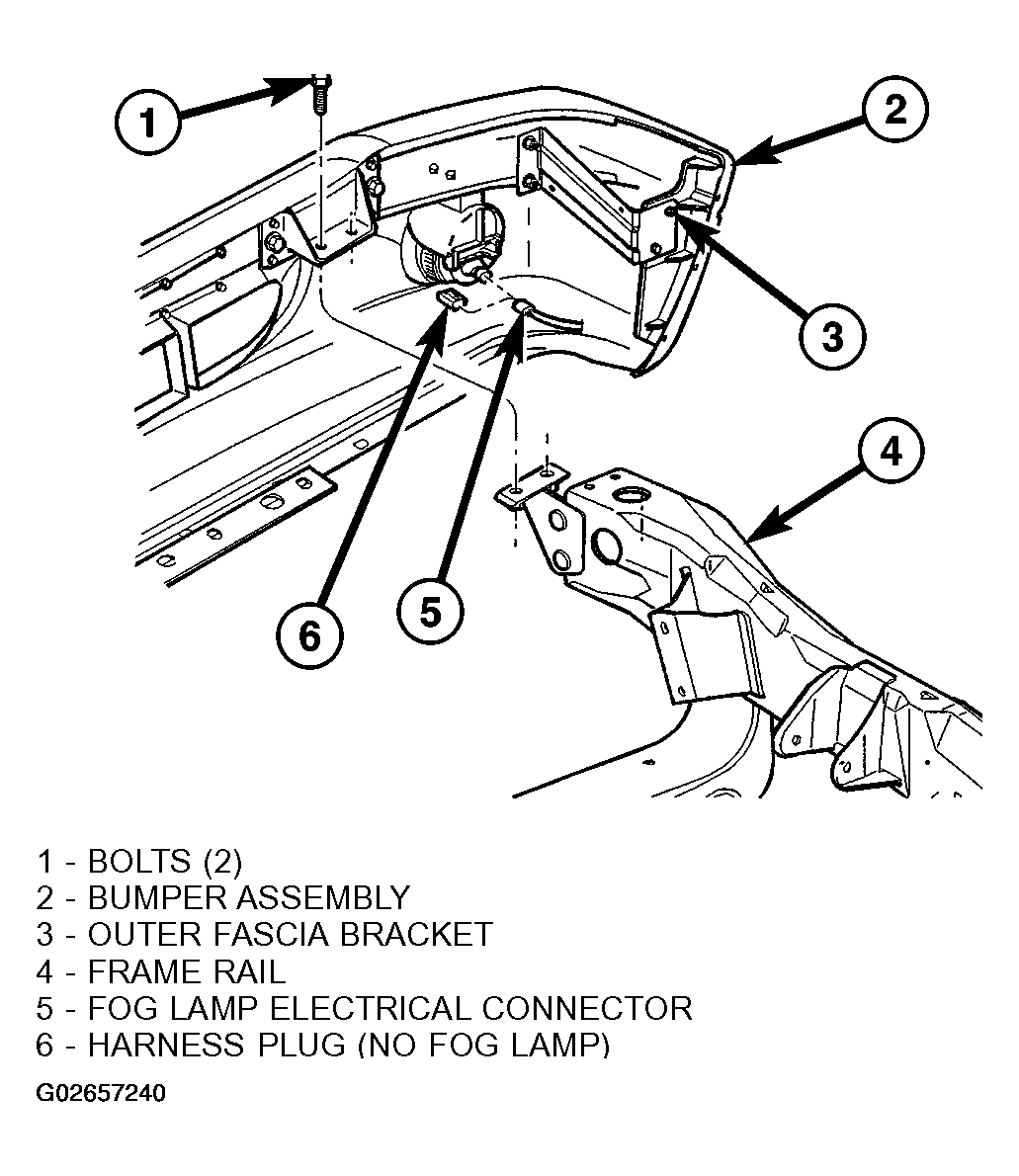

    Fig 1: Removing Bolts Attaching Bumper To Inner Bumper Bracket
    G02657240Courtesy of DAIMLERCHRYSLER CORP.
