Specifications - Frame Dimensions

WARNING: This page is about a different car, the 2004 Dodge Dakota and 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
FRAME DIMENSION SPECIFICATION INDEX

DESCRIPTION FIGURE
4X4 FRAME TOP VIEW 4
4X4 FRAME SIDE VIEW 5
4X2 FRAME TOP VIEW 6
4X2 FRAME SIDE VIEW 7

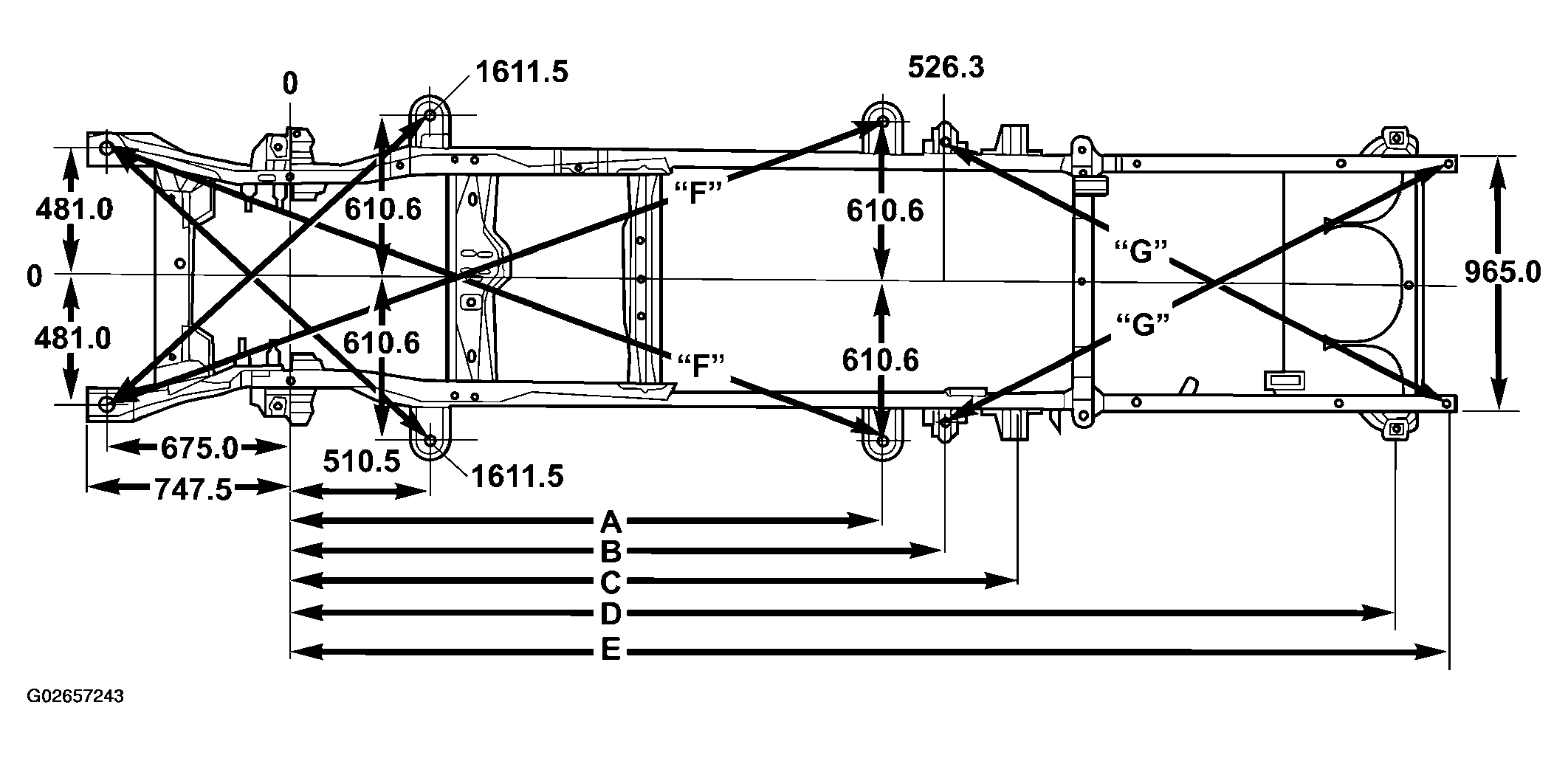

Fig 1: Identifying Dimension Of Frame Top View
G02657243Courtesy of DAIMLERCHRYSLER CORP.
FRAME TOP VIEW DIMENSION SPECIFICATION

WHEELBASE DIMN A DIMN B DIMN C DIMN D DIMN E DIMN F DIMN G
112 1674.8 1901.0 2159.3 3539.4 3738.5 2591.0 2081.7
124 1674.8 1901.0 2464.0 3844.2 4208.5 2591.0 2506.1
131 2156.7 2383.0 2641.9 4022.0 4220.5 3034.9 2081.7

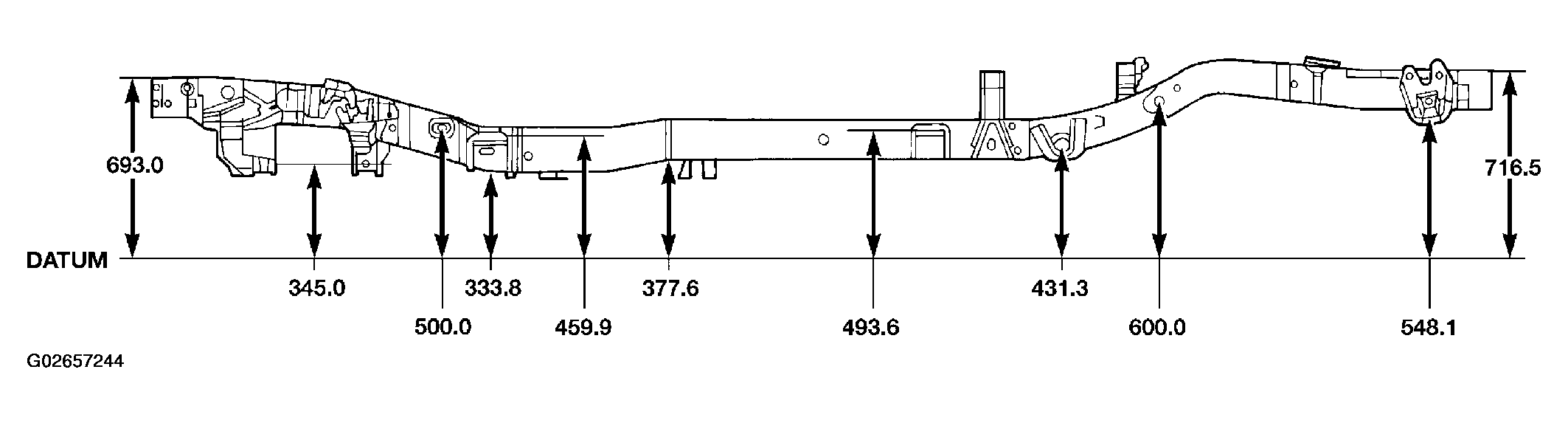

Fig 2: Identifying Dimension Of Frame Side View
G02657244Courtesy of DAIMLERCHRYSLER CORP.

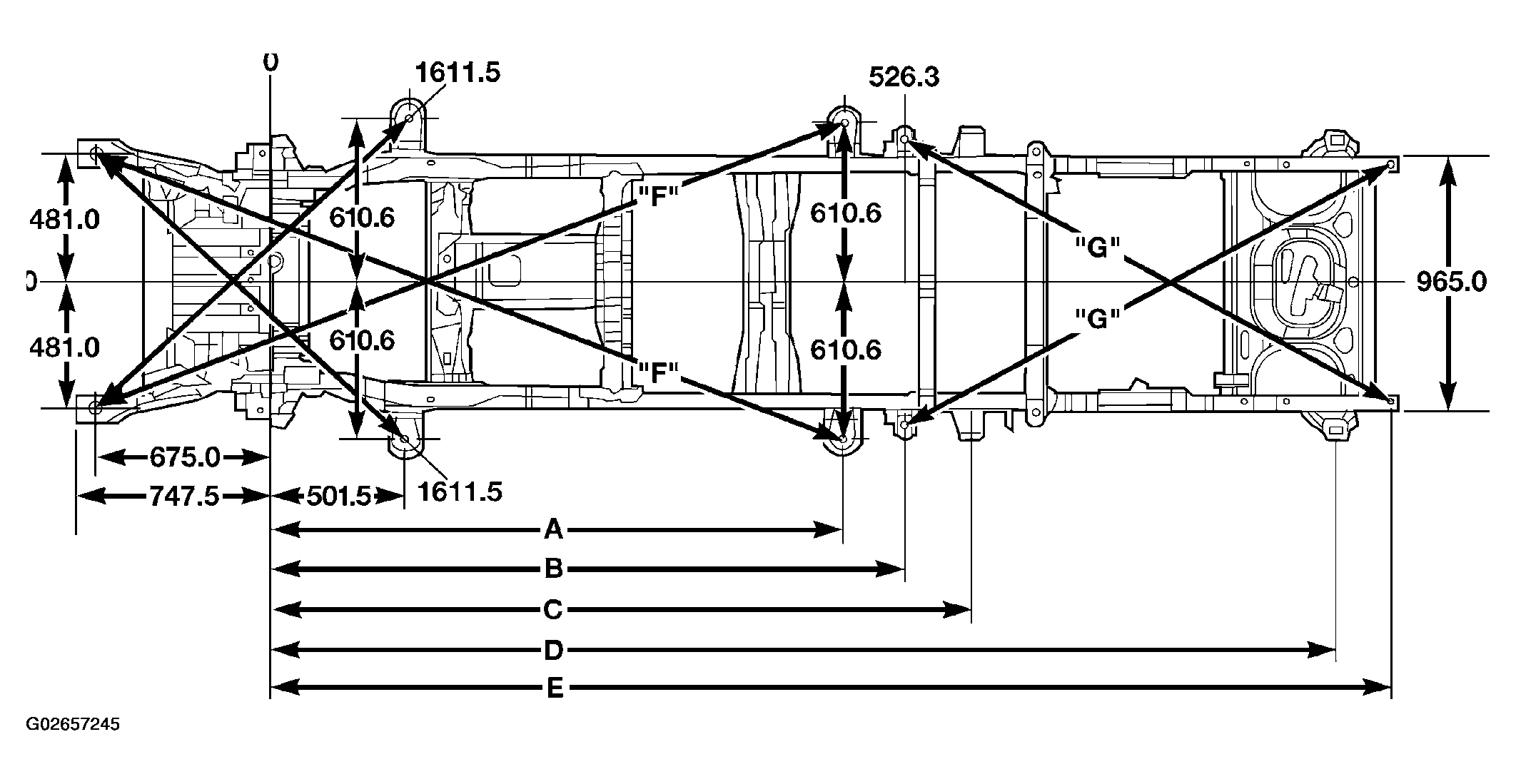

Fig 3: Identifying Dimension Of Frame Top View
G02657245Courtesy of DAIMLERCHRYSLER CORP.
FRAME TOP VIEW DIMENSION SPECIFICATION

WHEELBASE DIMN A DIMN B DIMN C DIMN D DIMN E DIMN F DIMN G
112 1674.8 1901.0 2176.9 3539.5 3738.5 2591.0 2081.7
124 1674.8 1901.0 2481.6 3844.2 4208.5 2591.0 2506.1
131 2156.7 2383.0 2659.5 4022.1 4220 3034.9 2081.7

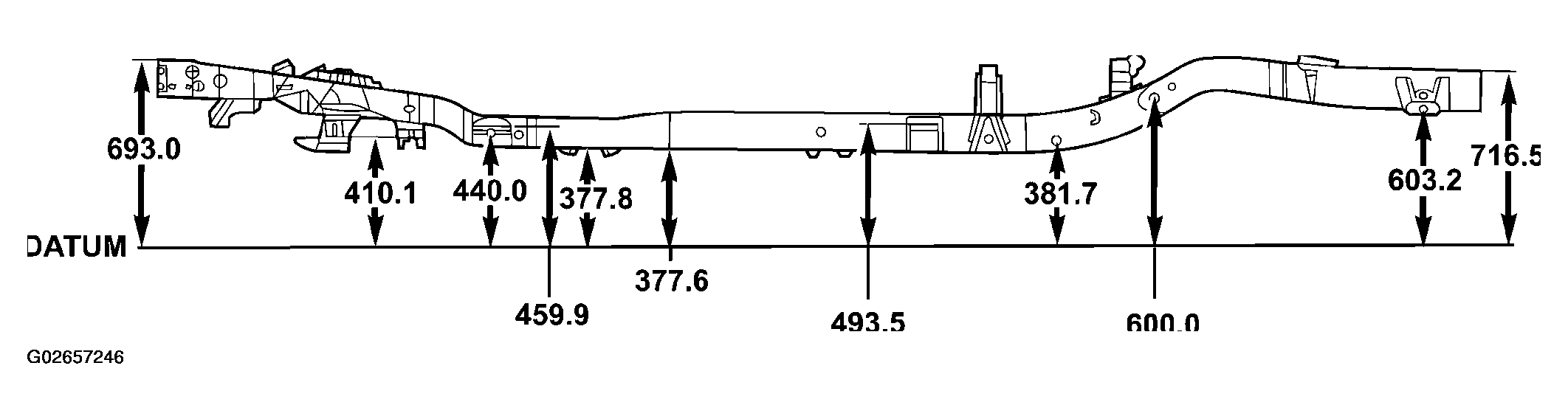

Fig 4: Identifying Dimension Of Frame Side View
G02657246Courtesy of DAIMLERCHRYSLER CORP.
