Intermediate Pipe: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the extension pipe in the muffler and the catalytic converter flange.
  2. If other sections of the exhaust system where loosened in removal, refer to SPECIFICATIONS  for tightening procedures.

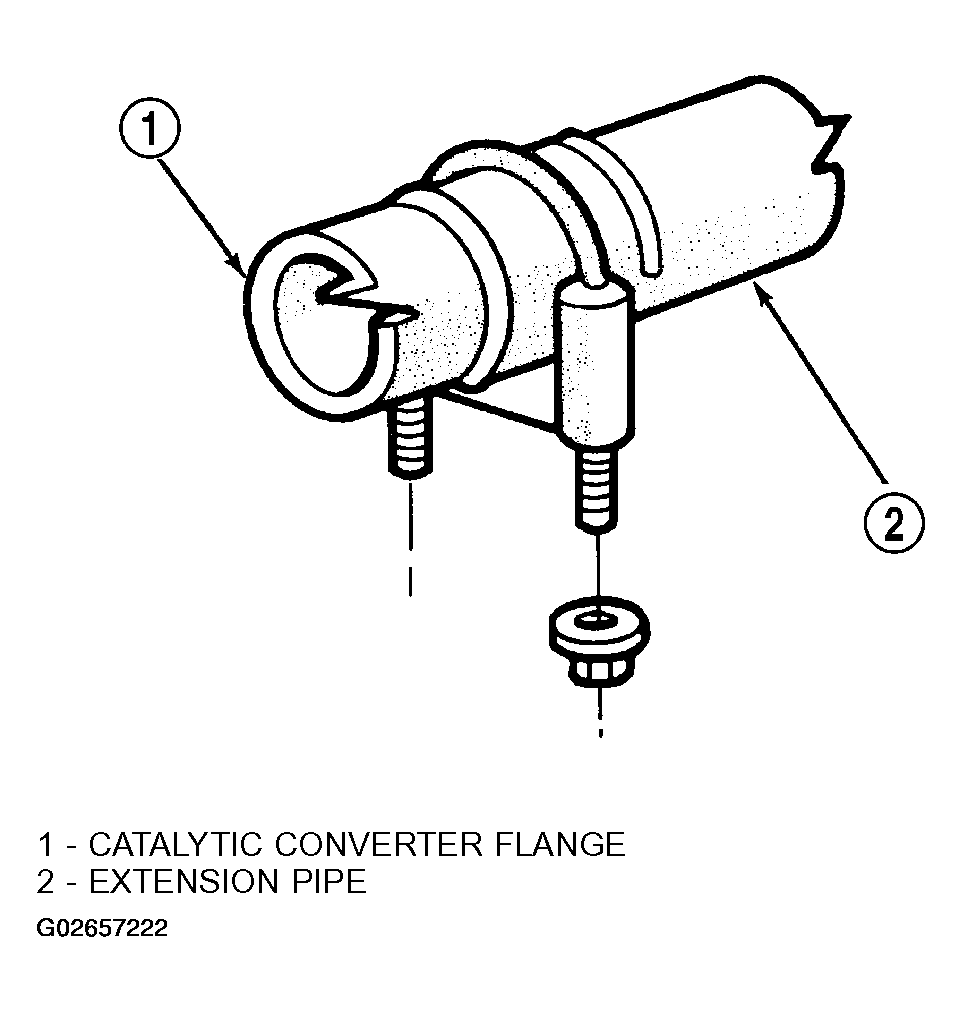

  3. Install the clamps and nuts (Figure ). Tighten the nuts to 47 N.m (35 ft. lbs.) torque.
  4. Lower the vehicle.
  5. Start the engine, inspect for exhaust leaks and exhaust system contact with the body panels. Adjust the alignment, if needed.
