Section 55 (Exhaust System)
>>
Exhaust System
>>
Diagnosis And Testing - Exhaust System
Diagnosis And Testing - Exhaust System
WARNING:
This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

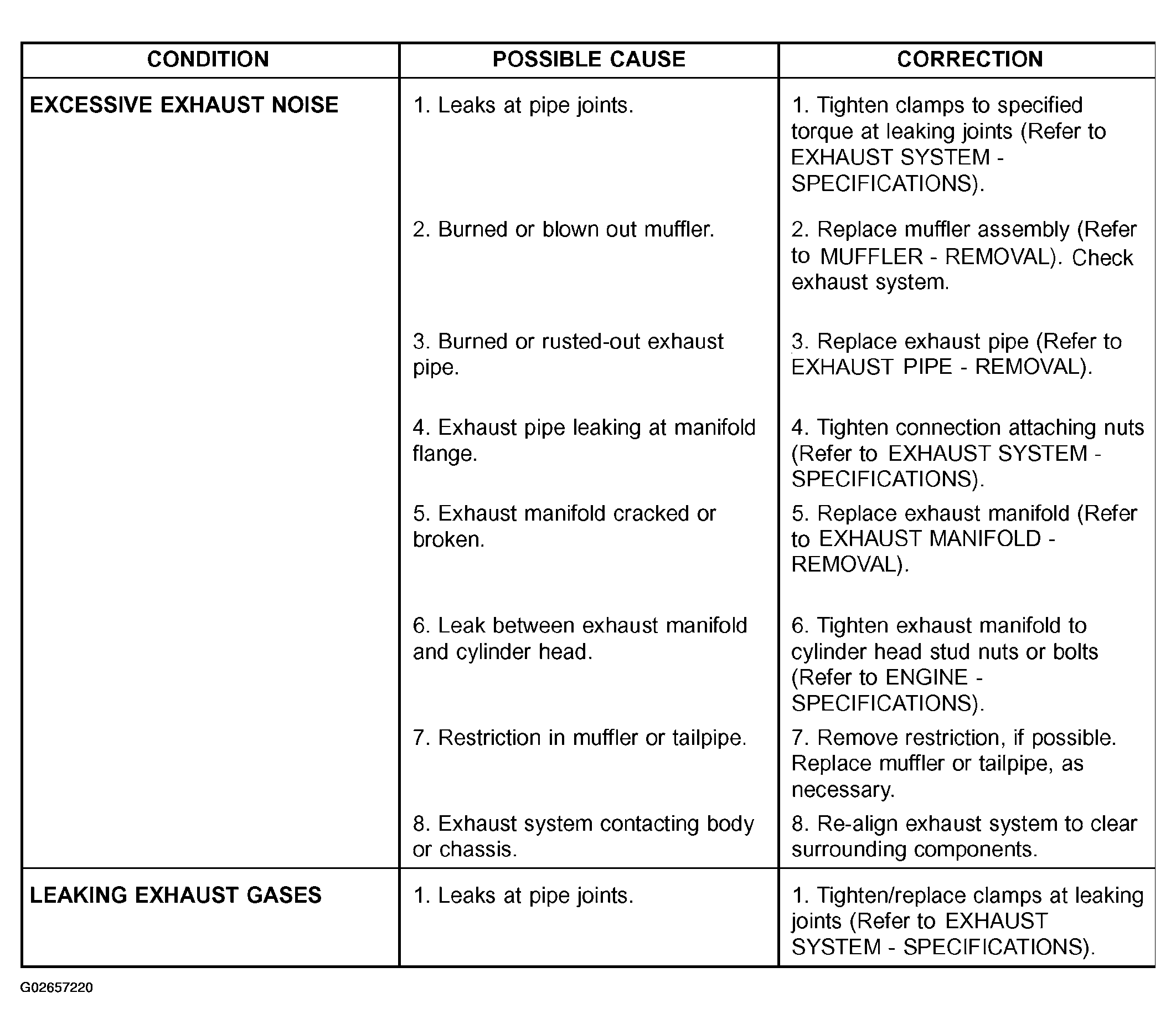

Fig 1: Exhaust System Diagnosis Chart
Courtesy of DAIMLERCHRYSLER CORP.
