Exhaust Pipe - 3.9L & 5.9L: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Connect the exhaust pipe(s) to the exhaust manifold. Tighten the nuts to 34 N.m (25 ft. lbs.) torque.
Align and connect the exhaust pipe to the catalytic converter flange (Fig 1 ). Install exhaust clamp and tighten clamp nuts to 47 N.m (35 ft. lbs.) torque.

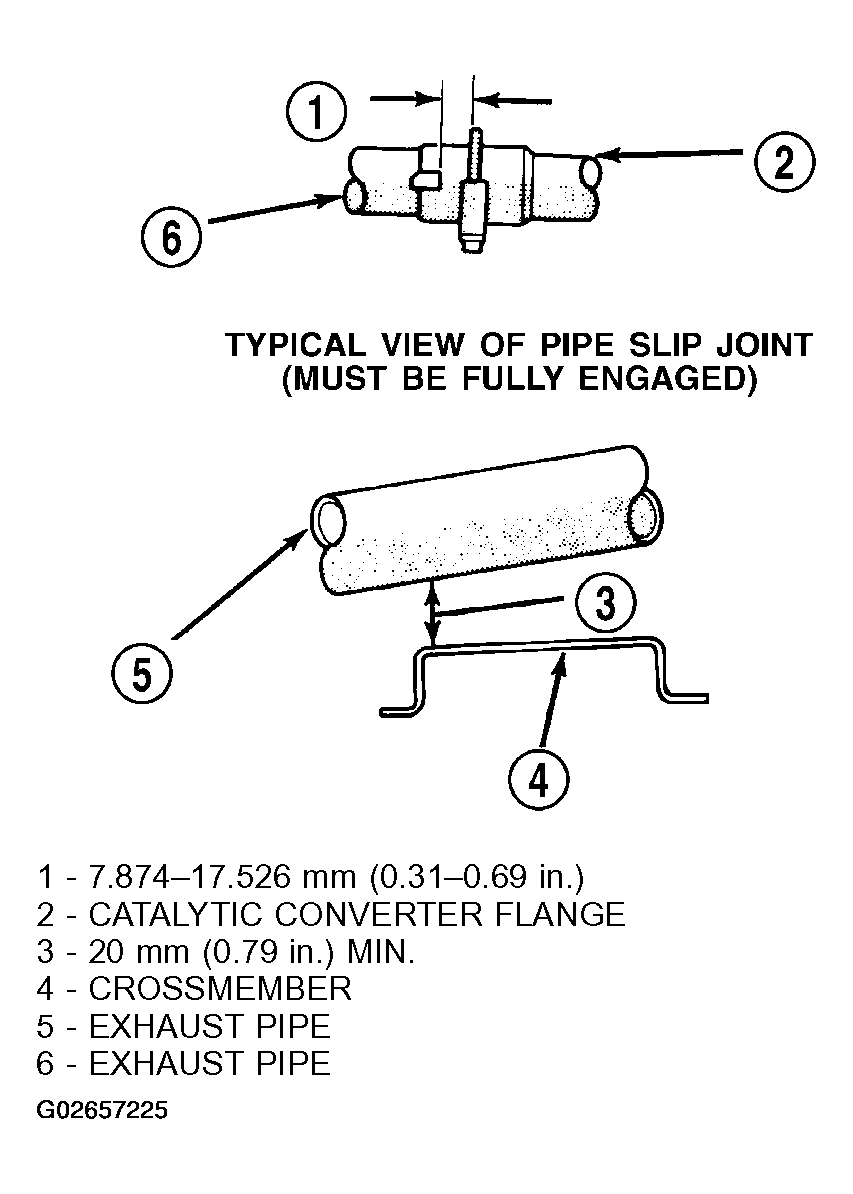

Fig 1: Installing Exhaust Pipe-To-Catalytic Converter Flange
Courtesy of DAIMLERCHRYSLER CORP.
Connect oxygen sensor connector(s).
Lower the vehicle.
Start the engine and inspect for exhaust leaks and exhaust system contact with the body panels. Adjust the alignment, if needed.
