Timing Belt/Chain And Sprockets: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable.
  2. Remove Timing Chain Cover (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S)-REMOVAL ).
  3. Re-install the vibration damper bolt finger tight. Using a suitable socket and breaker bar, rotate the crankshaft to align timing marks as shown in (Fig 1).

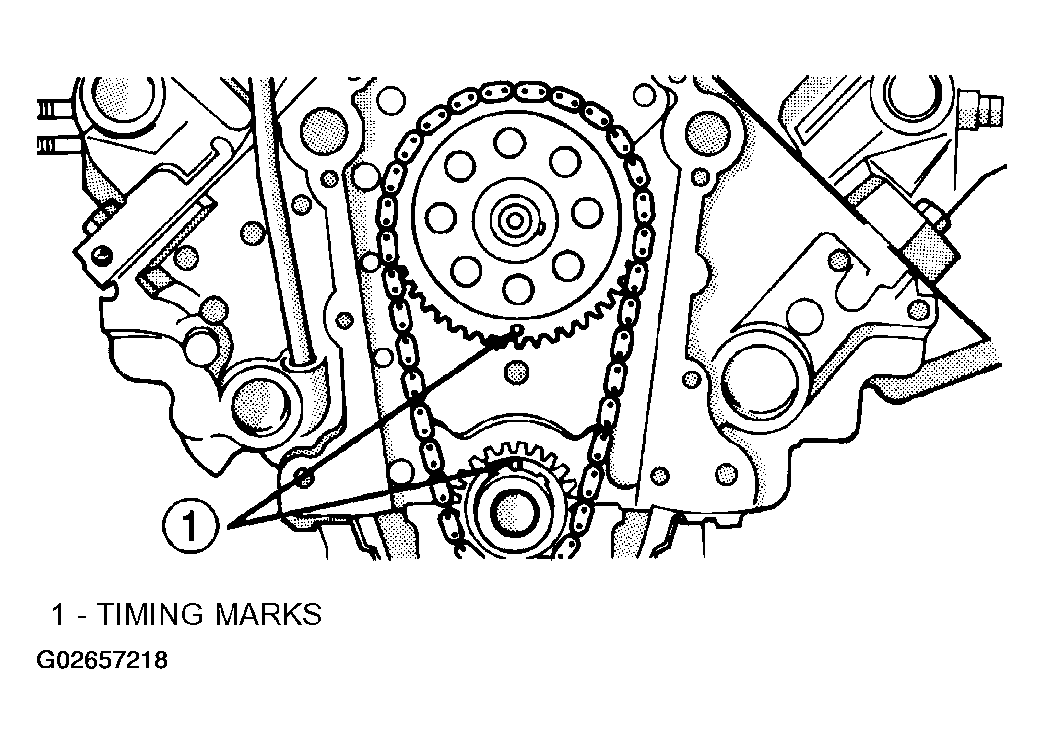

    Fig 1: Aligning Timing Marks
    G02657218Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove camshaft sprocket attaching bolt and remove timing chain with crankshaft and camshaft sprockets.
