Rocker Arm / Adjuster Assembly: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head cover and gasket (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S)-REMOVAL ).
  2. Remove the rocker arm bolts and pivots (Fig 1). Place them on a bench in the same order as removed.

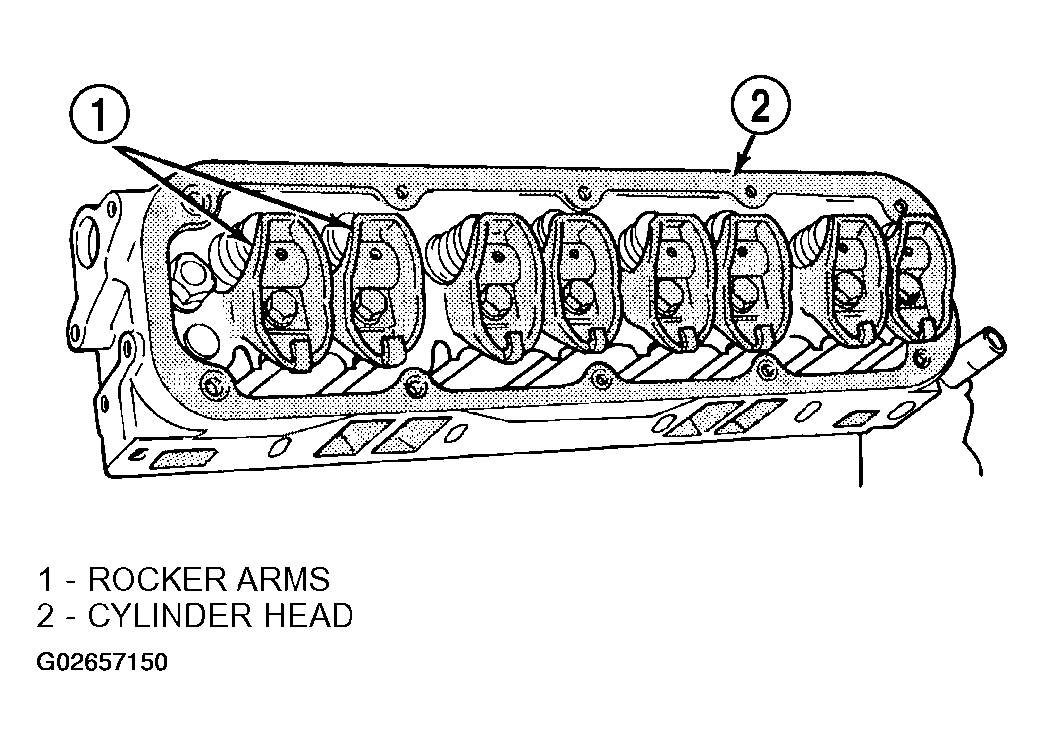

    Fig 1: Removing Rocker Arms
    G02657150Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove the push rods and place them on a bench in the same order as removed.
