Rear Mount: Removal: 2WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable from the battery.
  2. Raise the vehicle on a hoist.
  3. Support the transmission with a jack.
  4. Remove engine support bracket and insulator thru-bolt (Fig 1).

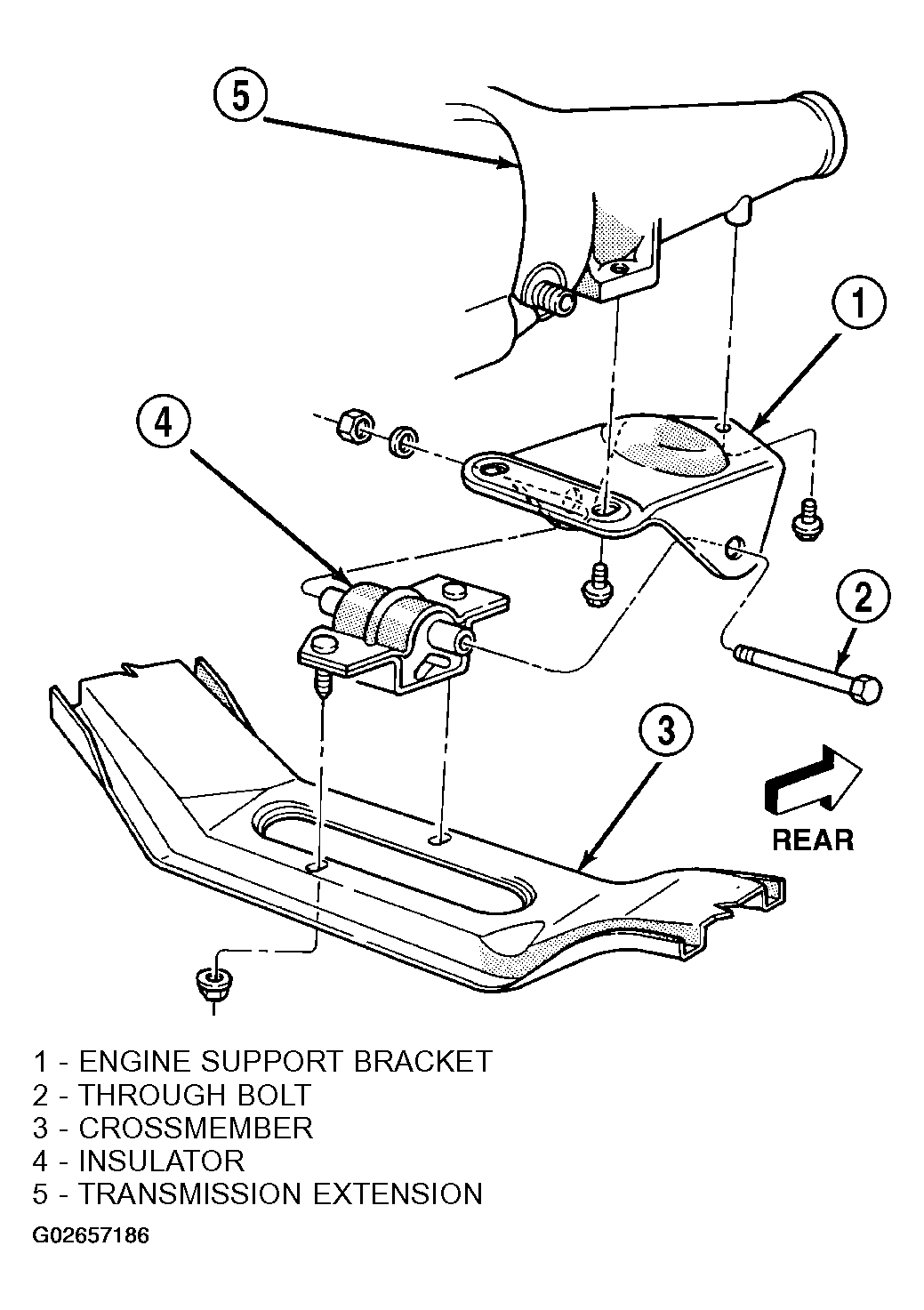

    Fig 1: Removing Rear Insulator-2WD Vehicles
    G02657186Courtesy of DAIMLERCHRYSLER CORP.
  5. Raise the transmission and engine slightly.
  6. Remove stud nuts attaching insulator to cross-member (Fig 1). Remove insulator.
