Rear Mount: Installation: 4WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

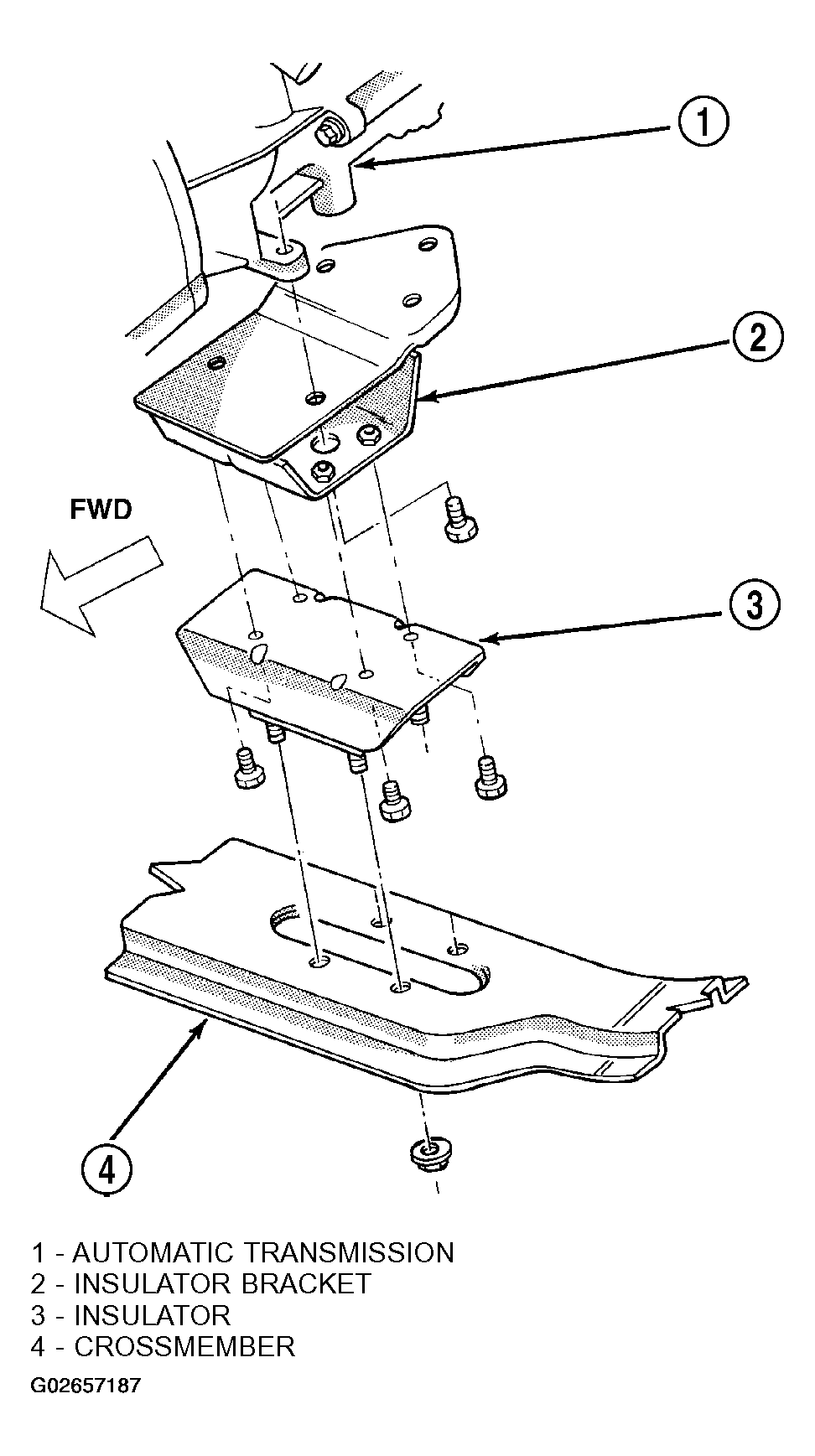

  1. If the insulator bracket was removed, install the bracket to the transmission (Figure). Tighten the bolts to 28 N.m (250 in. lbs.) torque.
  2. Install the bolts holding insulator to insulator bracket. Tighten the bolts to 28 N.m (250 in. lbs.) torque.
  3. Lower rear of transmission while aligning the insulator studs into the mounting support bracket. Install stud nuts and tighten to 28 N.m (250 in. lbs.) torque.
  4. Remove the transmission jack.
  5. Lower the vehicle.
  6. Connect the negative cable to the battery.
