Standard Procedure-Valves, Guides And Springs: Valves

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the remaining margin after the valves are refaced (Fig 1). Valves with less than 1.190 mm (0.047 in.) margin should be discarded.

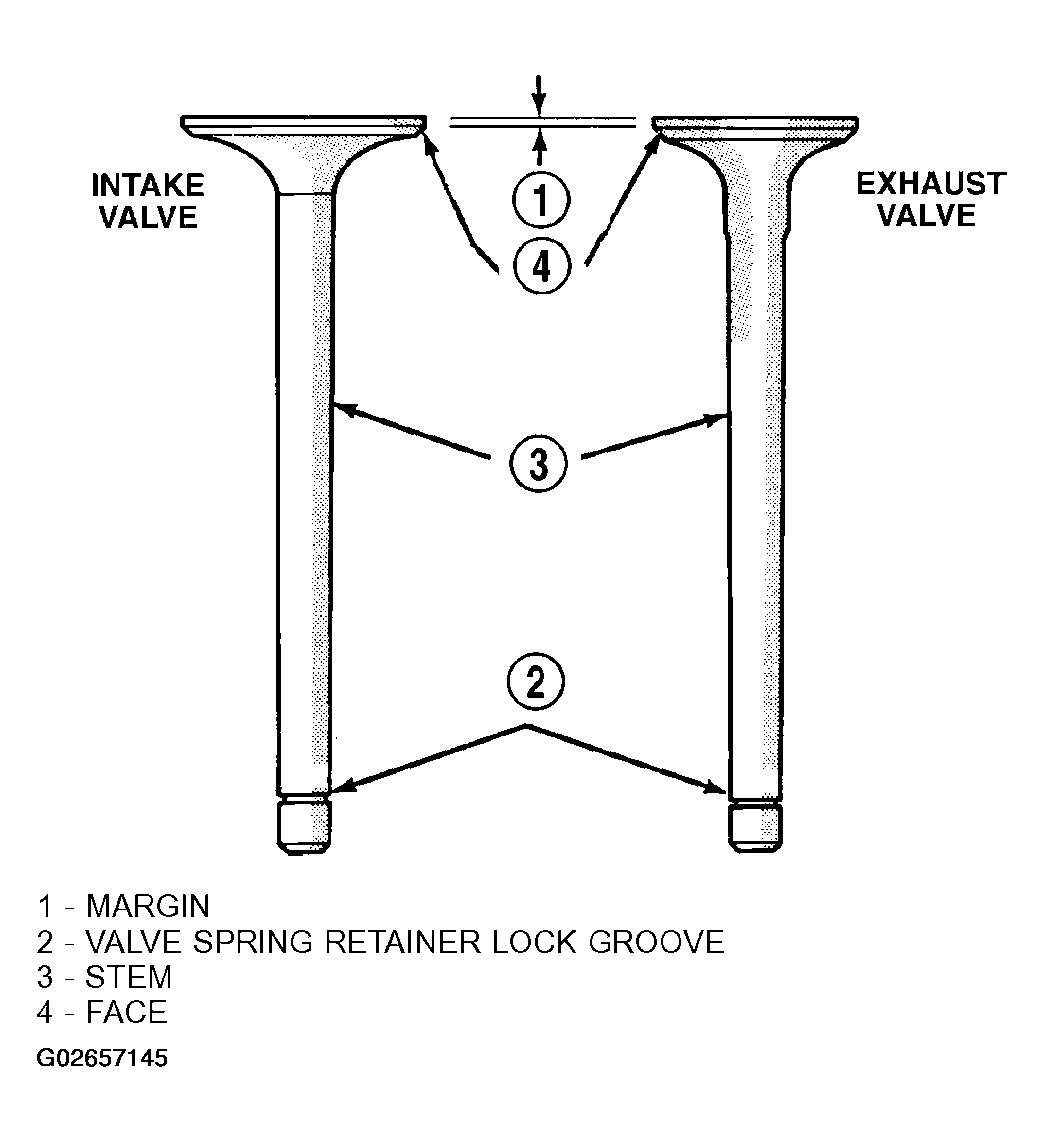

Fig 1: Identifying Intake And Exhaust Valves
G02657145Courtesy of DAIMLERCHRYSLER CORP.
