Front Mount: Installation: 4WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

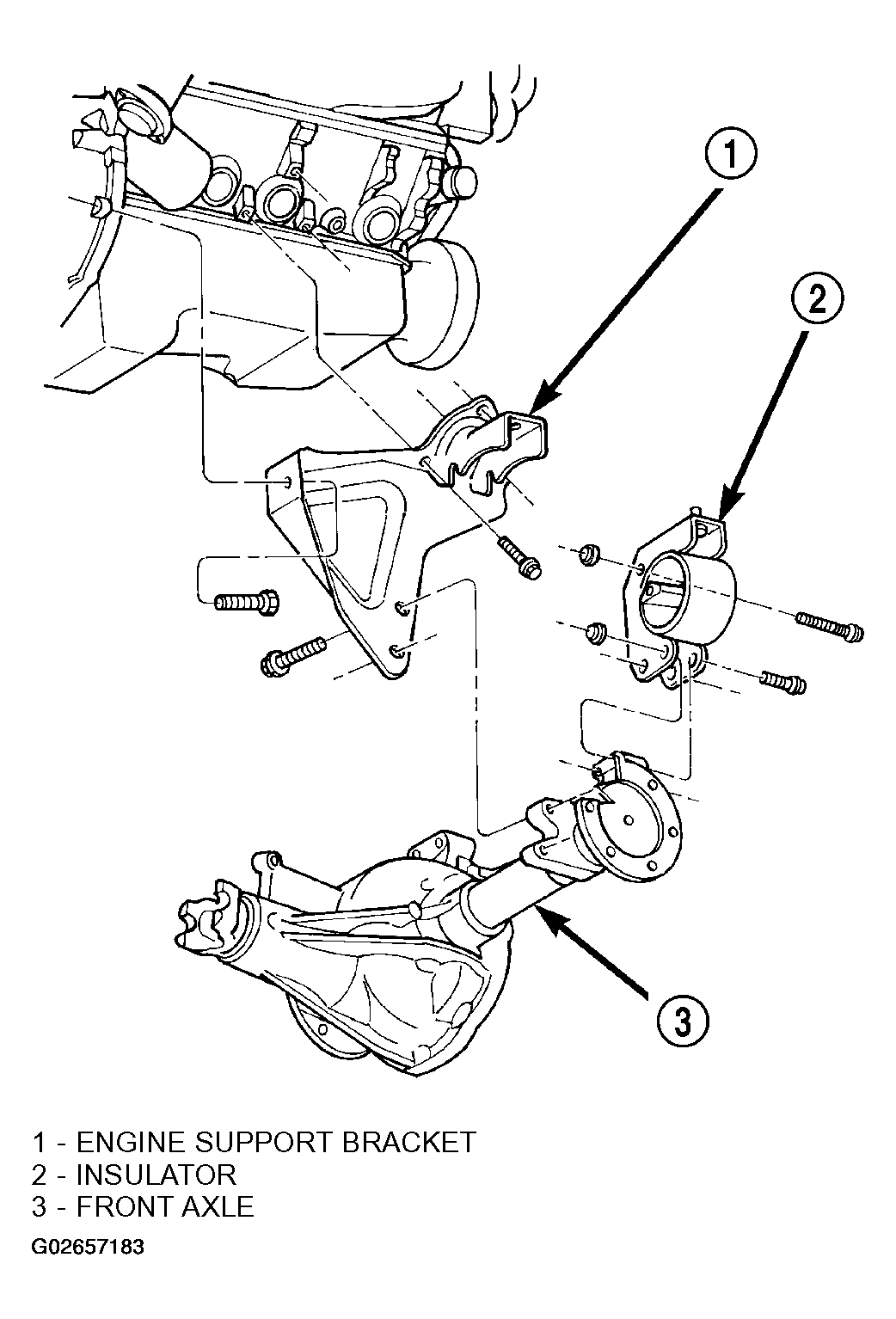

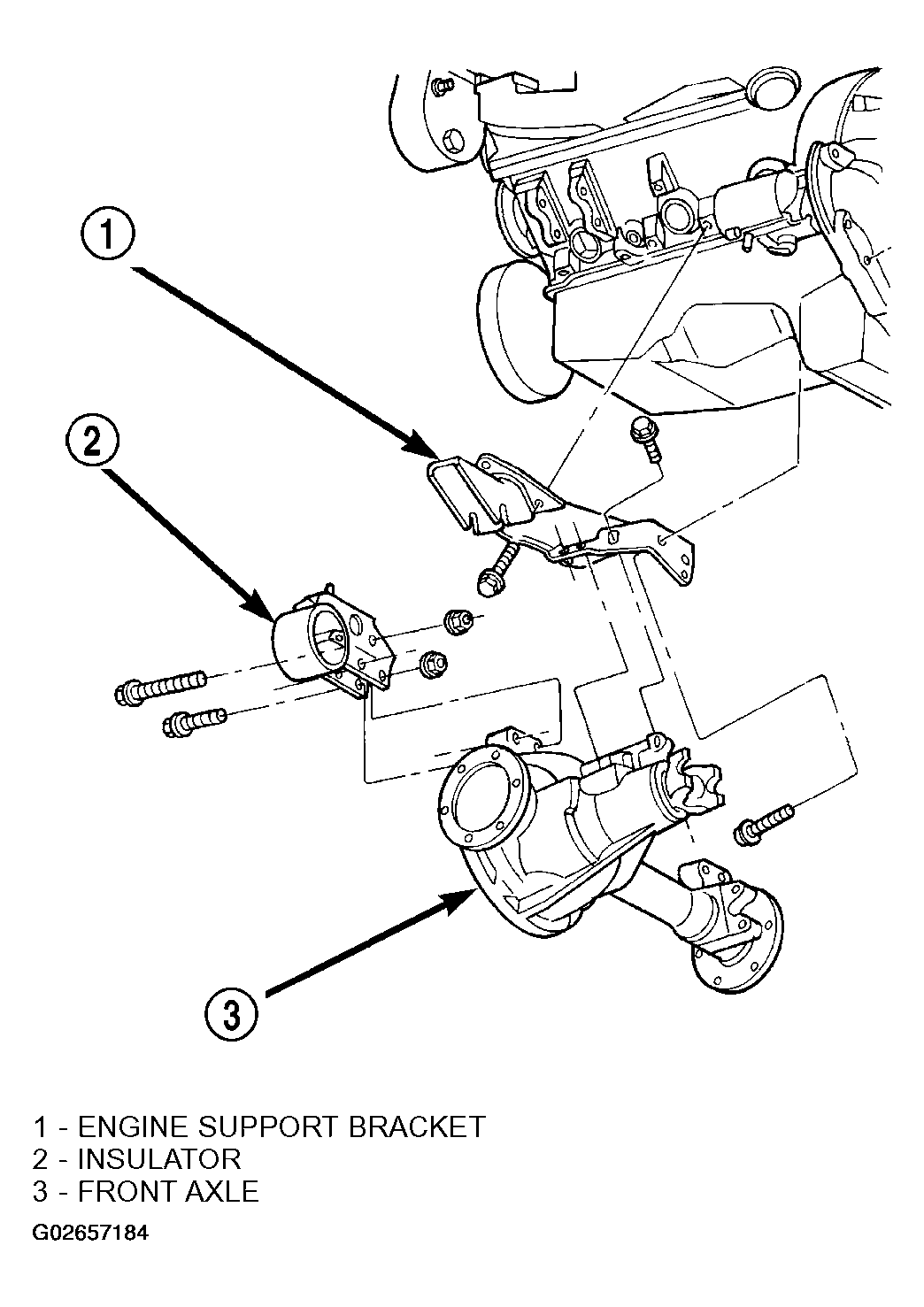

  1. If engine support brackets were removed, install them and their fasteners (Figure) (Figure). Tighten support bracket to block bolts to 41 N.m (30 ft. lbs.). Tighten support bracket to transmission bell-housing bolt(s) to 88 N.m (65 ft. lbs.).
  2. Install Engine mount insulator and tighten insulator to support bracket nut to 41 N.m (30 ft. lbs.). Tighten insulator to support bracket through bolt nut to 102 N.m (75 ft. lbs.).

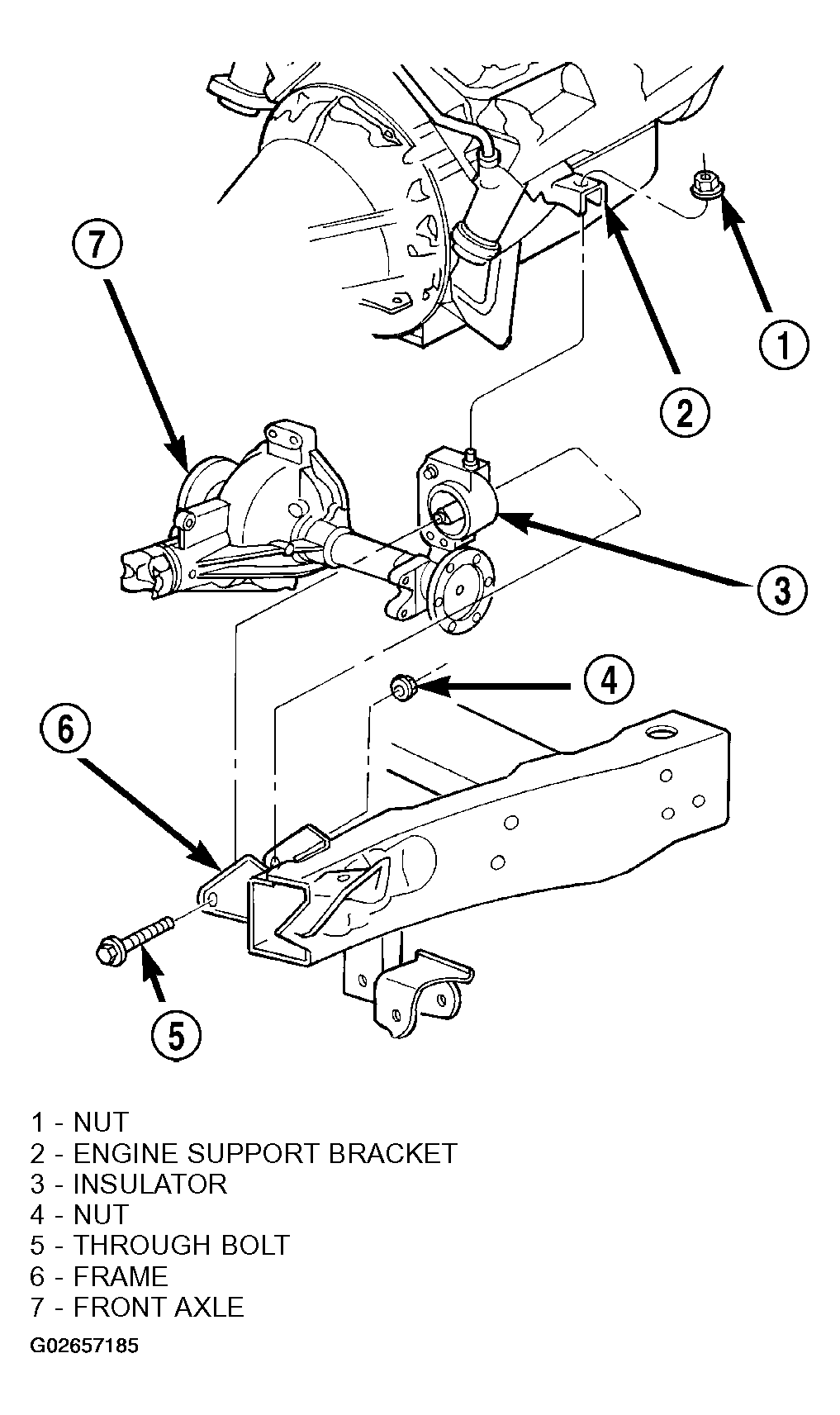

  3. Lower engine and install insulator to frame through bolt and nut (Figure). Tighten nut to 95 N.m (70 ft. lbs.).
  4. Install starter motor (Refer to STARTER ).
  5. Connect starter wires.
  6. Remove engine lifting (support) fixture.
  7. Install front axle assembly (Refer to FRONT AXLE-C205F ).
  8. Lower the vehicle.
  9. Connect the negative cable to the battery.
