Front Mount: Installation: 2WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the engine raised SLIGHTLY, position insulator assembly onto the engine block and install bolts (Figure) (Figure). Tighten the bolts to 41 N.m (30 ft. lbs.) torque.
  2. Lower engine with lifting fixture while guiding insulator assembly into the engine insulator bracket (Fig 1).

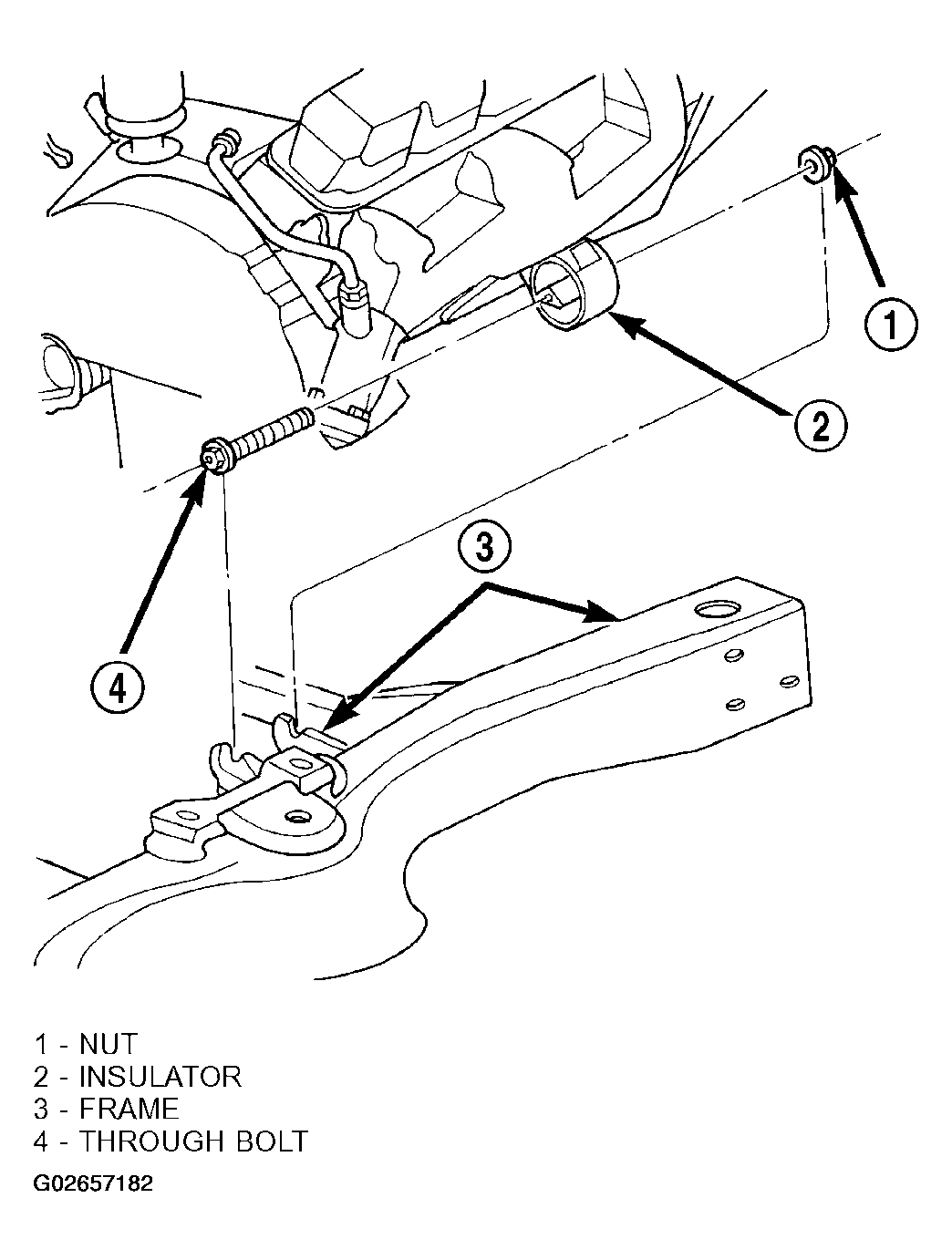

    Fig 1: Engine Mount Insulator At Frame
    G02657182Courtesy of DAIMLERCHRYSLER CORP.
  3. Install insulator to bracket thru-bolt. Tighten the thru-bolt nut to 68 N.m (50 ft. lbs.) torque.
  4. Remove lifting fixture.
  5. Connect the negative cable to the battery.
