Exhaust Manifold: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Raise the vehicle.
  3. Remove the exhaust pipe to manifold nuts.
  4. Lower the vehicle.
  5. Remove three nuts, heat shield and washers from the right side exhaust manifold, if necessary (Fig 1).

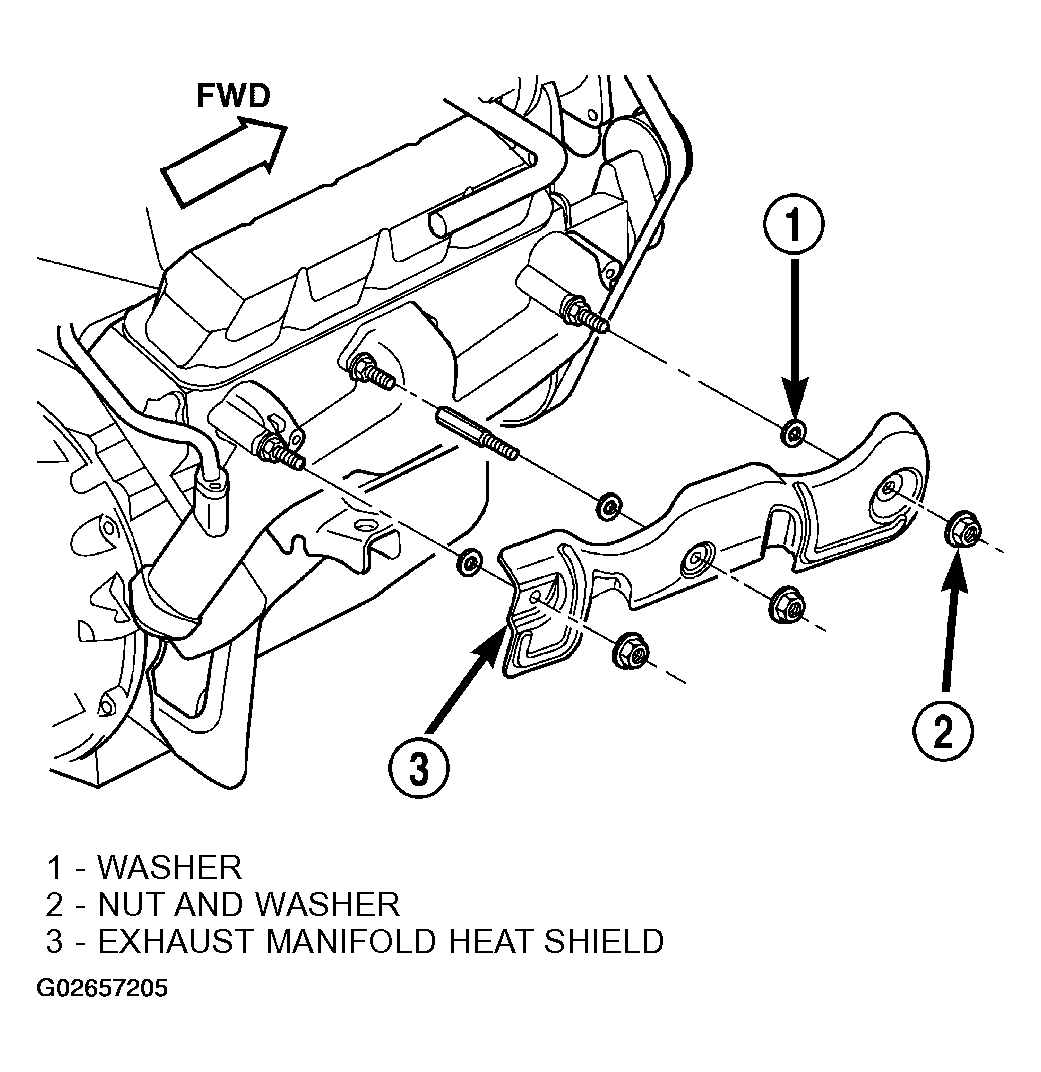

    Fig 1: Removing Exhaust Manifold Heat Shield-Right Side
    G02657205Courtesy of DAIMLERCHRYSLER CORP.
  6. Remove two nuts, heat shield and washers from the left side exhaust manifold, if necessary (Fig 2).

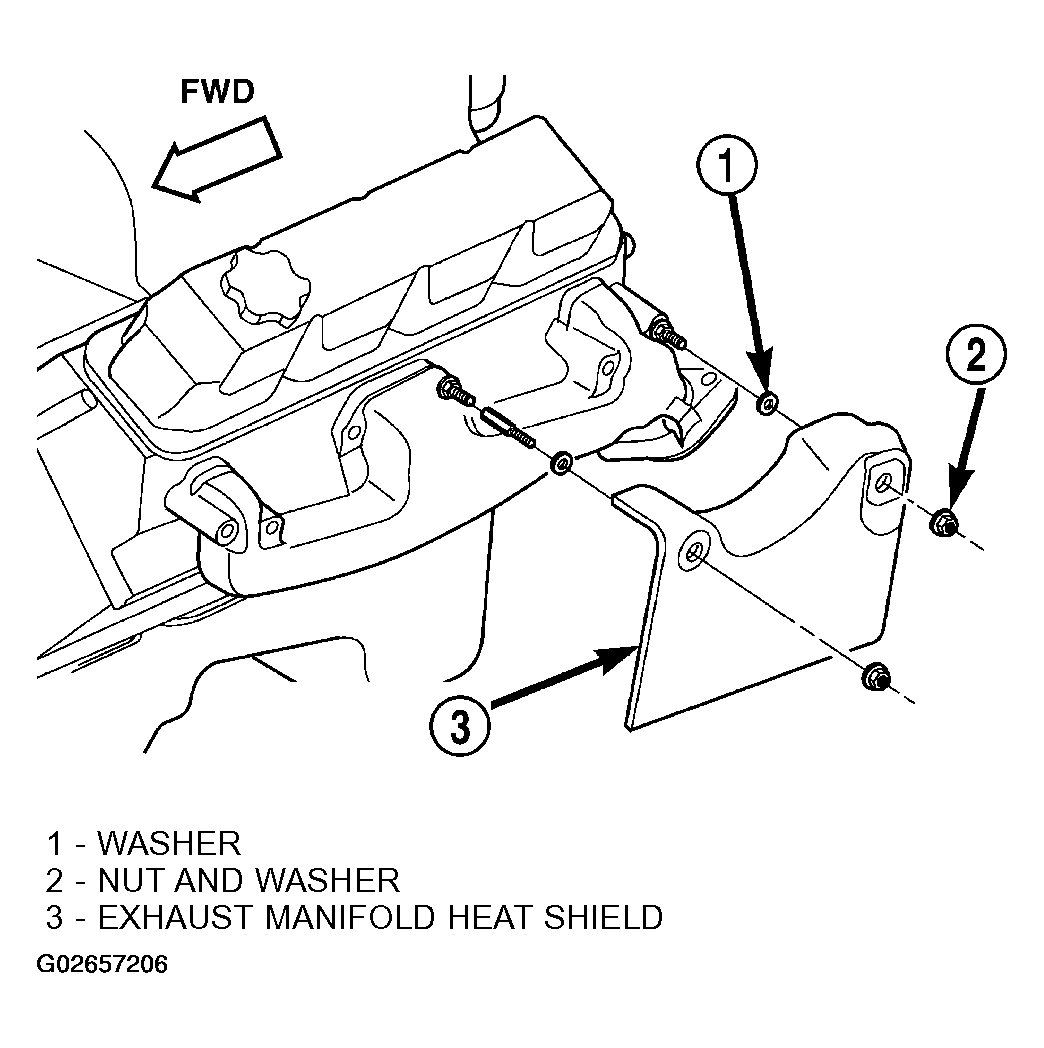

    Fig 2: Removing Exhaust Manifold Heat Shield-Left Side
    G02657206Courtesy of DAIMLERCHRYSLER CORP.
  7. Remove bolts, nuts and washers attaching manifold to cylinder head.
  8. Remove manifold from the cylinder head.
