Exhaust Manifold: Operation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The exhaust manifolds collect the engine exhaust exiting the combustion chambers, then channels the exhaust gases to the exhaust pipes attached to the manifolds.

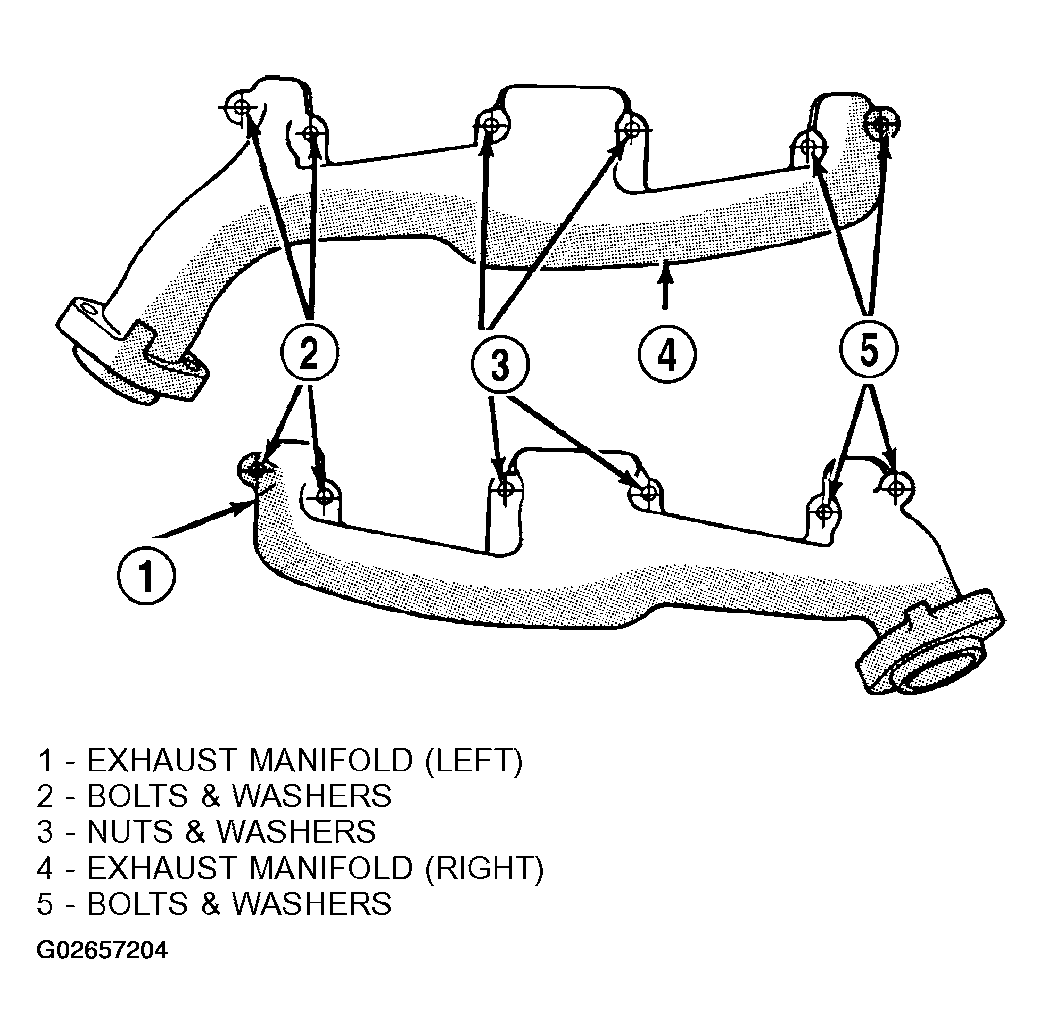

Fig 1: Identifying Exhaust Manifolds-V-8 Gas Engines

Courtesy of DAIMLERCHRYSLER CORP.
