WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

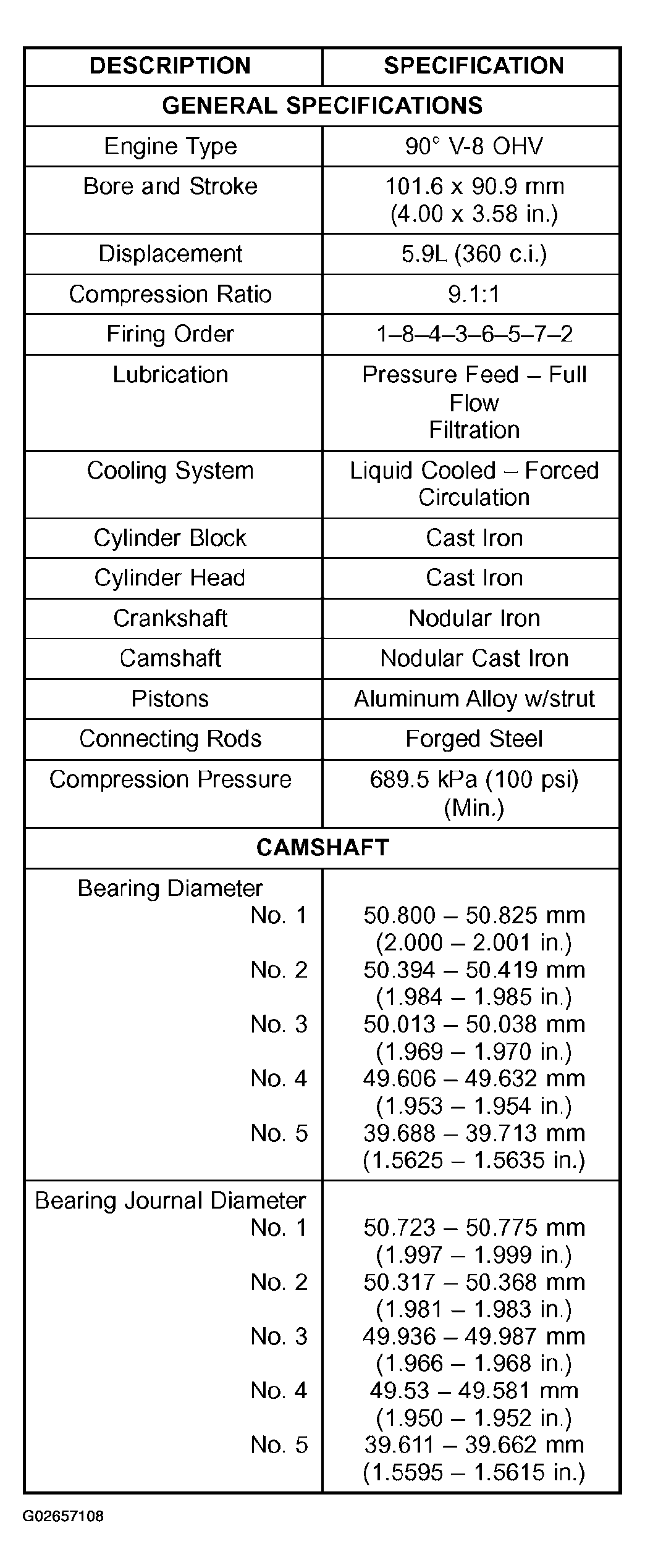

Fig 1: Engine Parts Specifications (1 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

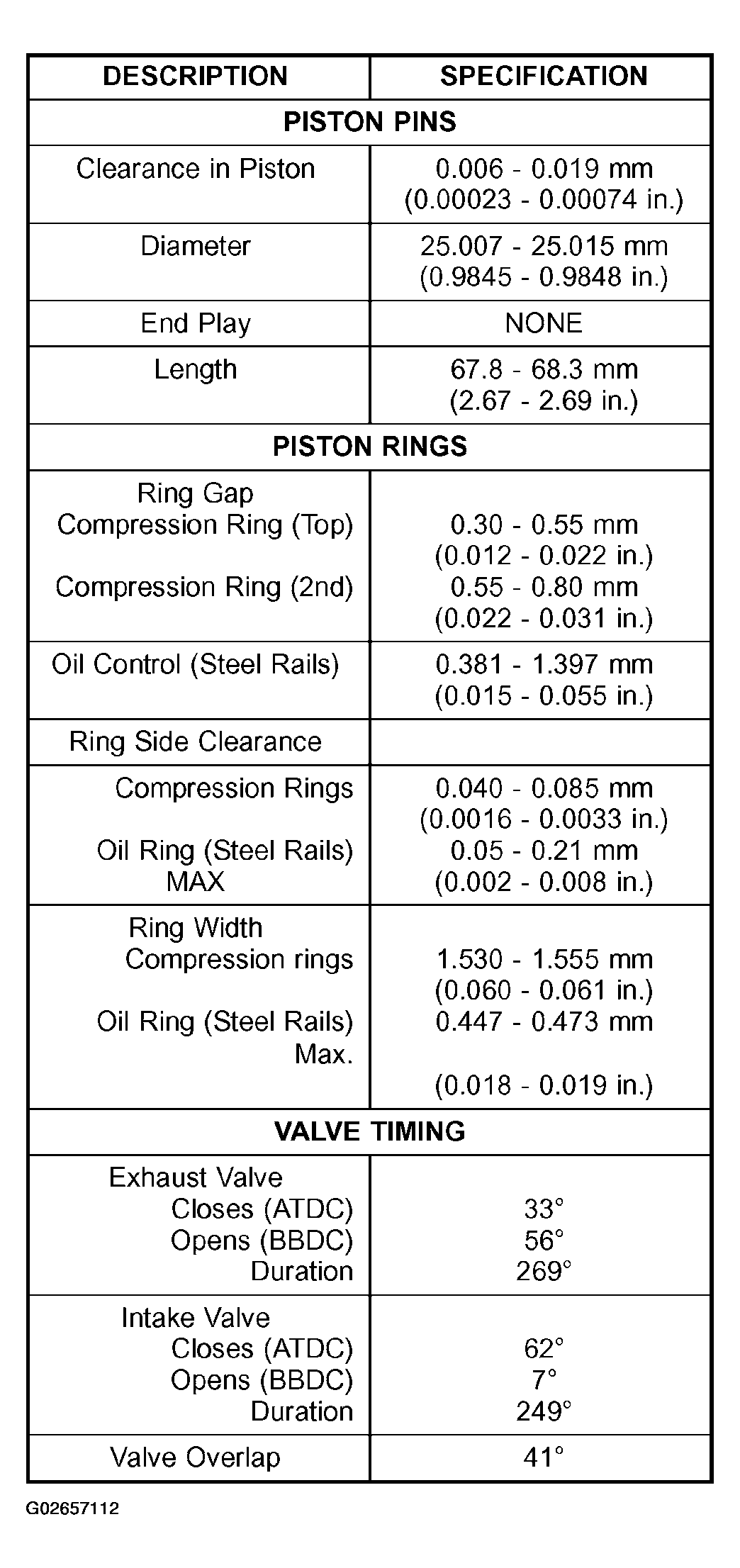

Fig 2: Engine Parts Specifications (2 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

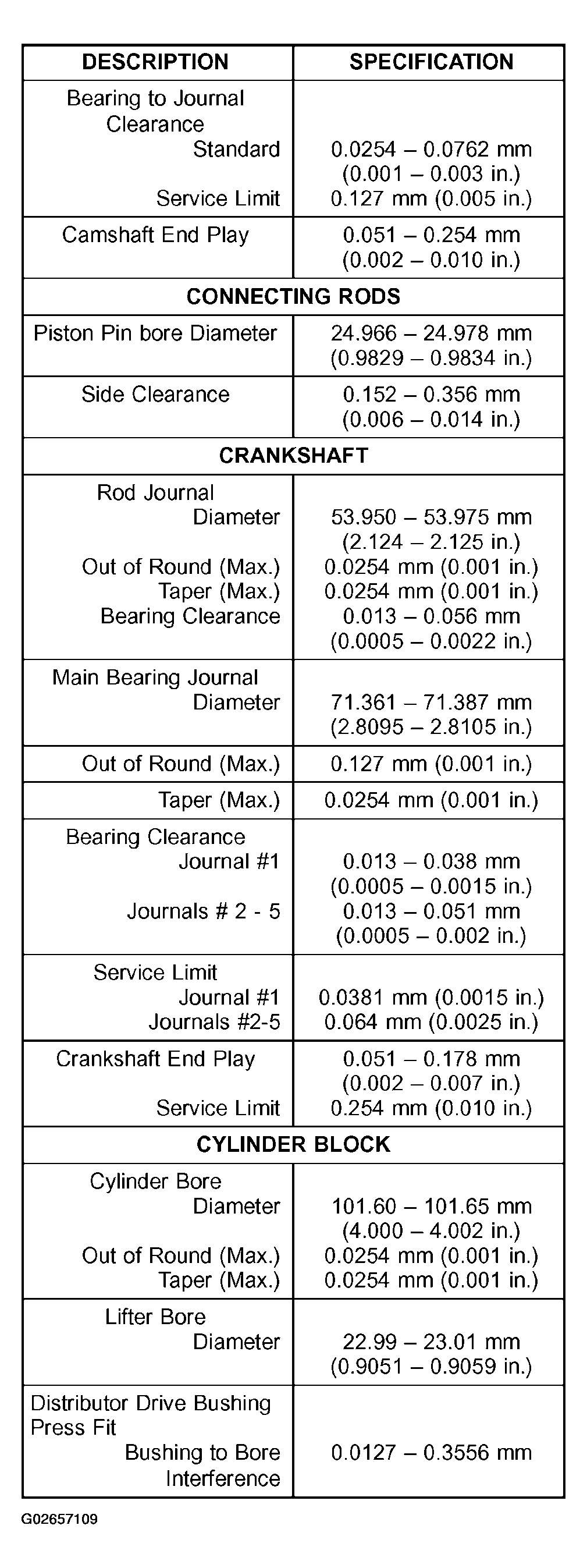

Fig 3: Engine Parts Specifications (3 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

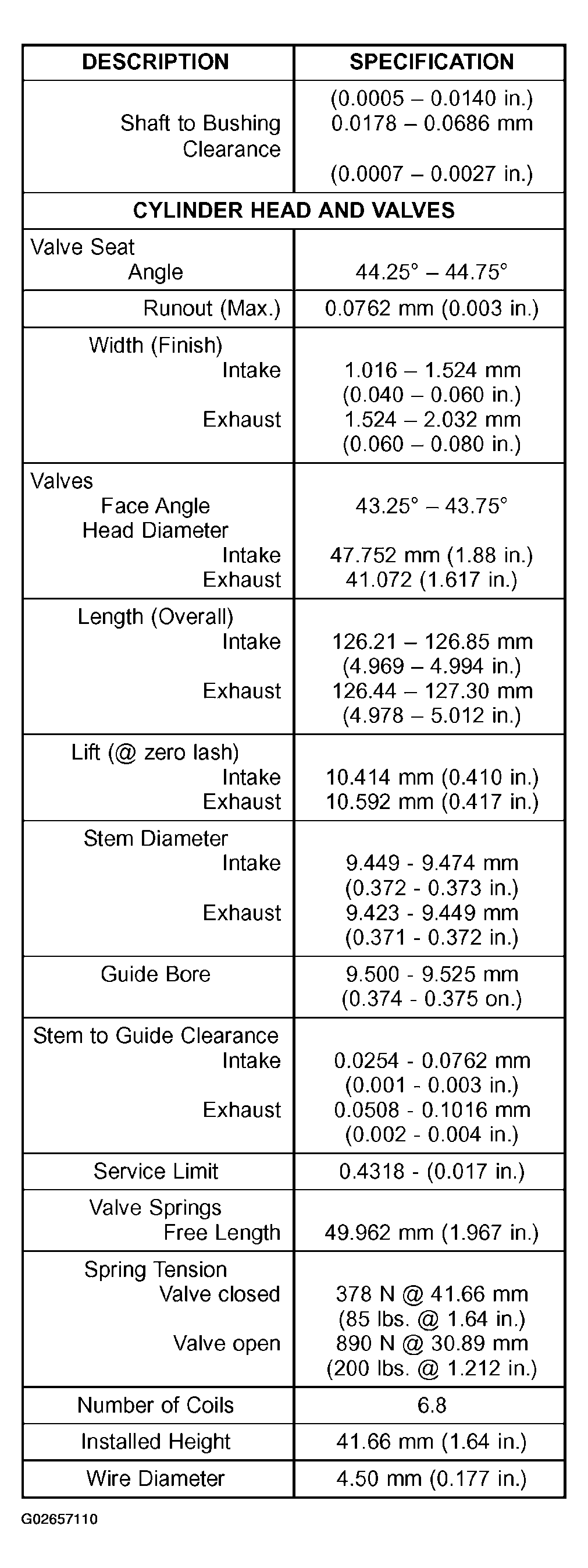

Fig 4: Engine Parts Specifications (4 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

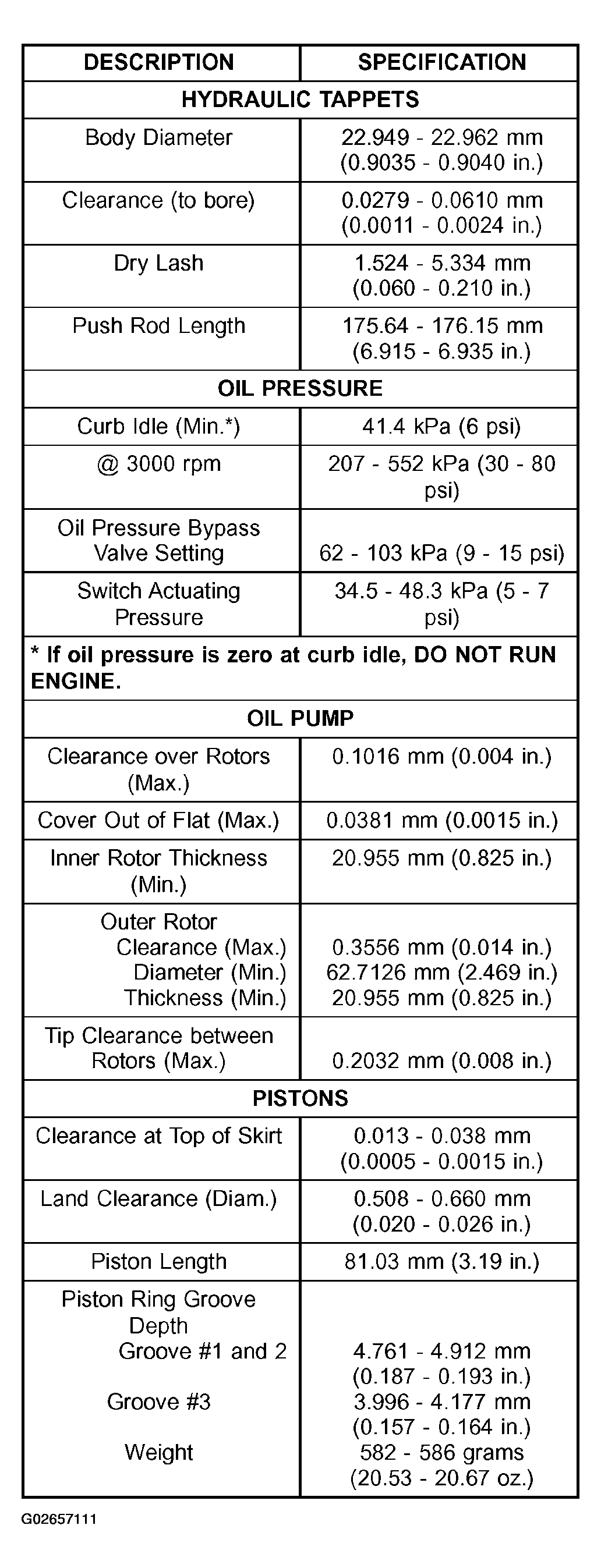

Fig 5: Engine Parts Specifications (5 Of 5)
Courtesy of DAIMLERCHRYSLER CORP.

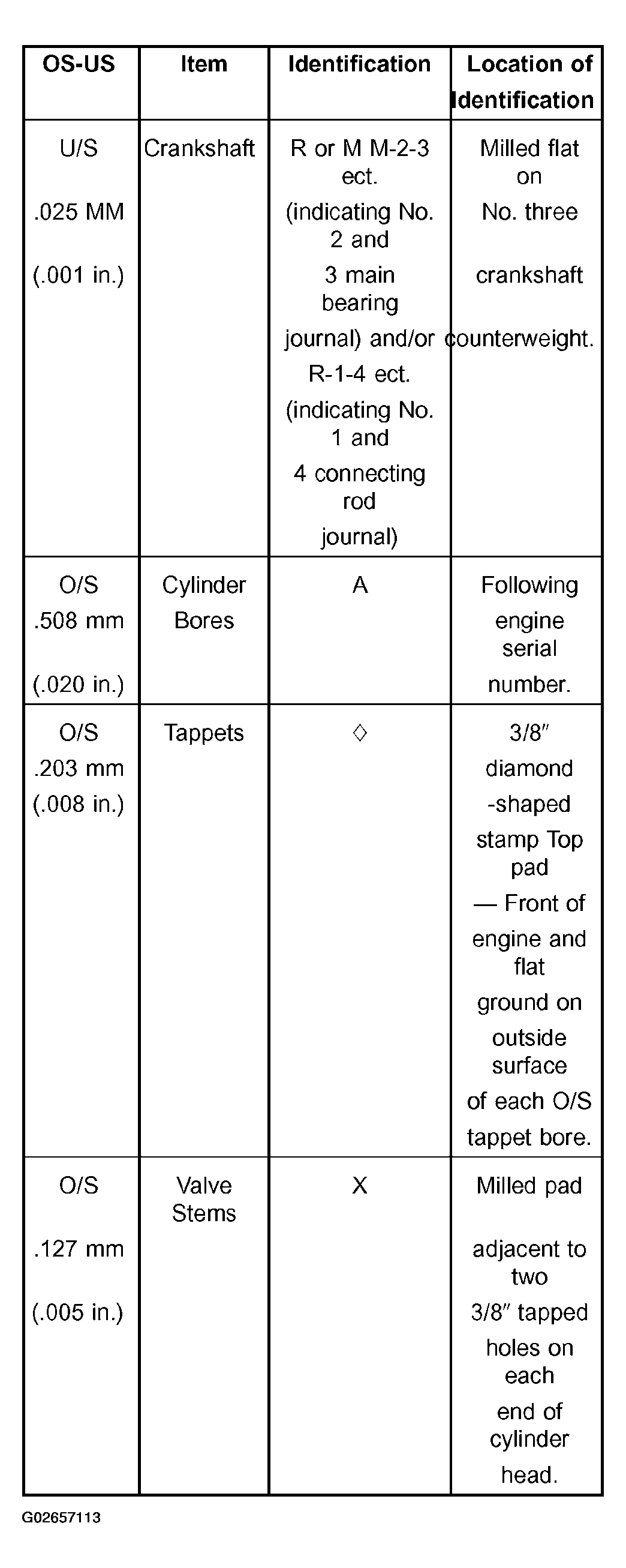

Fig 6: Oversize And Undersize Engine Component Markings Chart
