5.9L Engine

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Oil Pressure Gauge C-3292

G02657116

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Engine Support Fixture C-3487-A

G02657117

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Valve Spring Compressor MD-998772-A

G02657118

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Identifying Adaptor 6633

G02657119

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Identifying Adaptor 6716A

G02657120

Courtesy of DAIMLERCHRYSLER CORP.

Fig 6: Identifying Valve Guide Sleeve C-3973

G02657121

Courtesy of DAIMLERCHRYSLER CORP.

Fig 7: Identifying Dial Indicator C-3339

G02657122

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Identifying Puller C-3688

G02657123

Courtesy of DAIMLERCHRYSLER CORP.

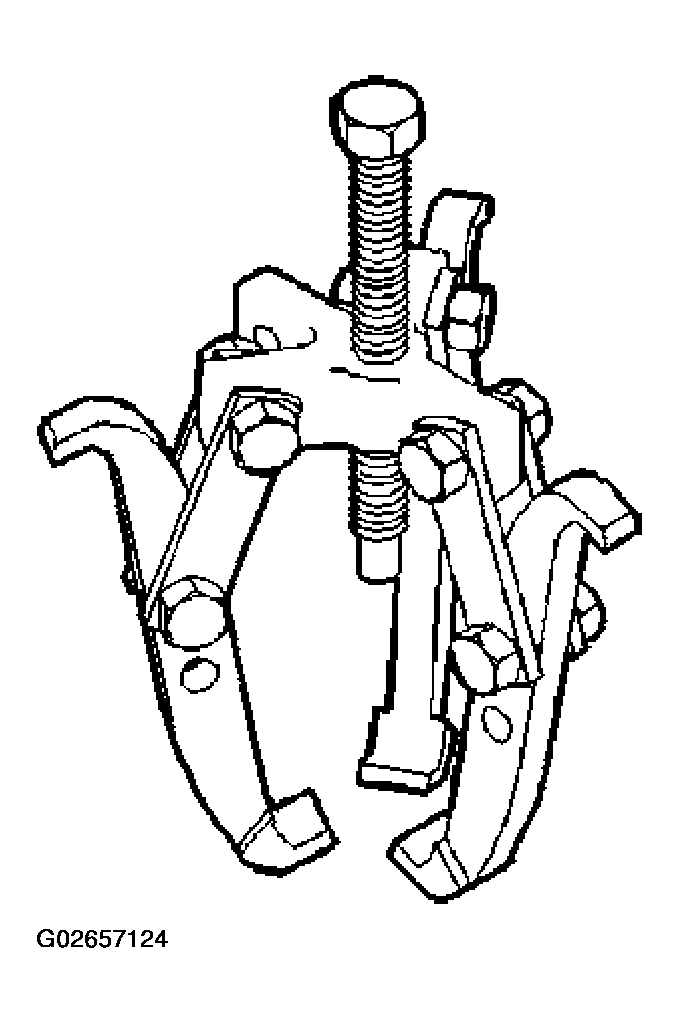

Fig 9: Identifying Puller 1026

G02657124

Courtesy of DAIMLERCHRYSLER CORP.

Fig 10: Identifying Crankshaft Damper Removal Insert 8513

G02657125

Courtesy of DAIMLERCHRYSLER CORP.

Fig 11: Identifying Front Oil Seal Installer 6635

G02657126

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Cam Bearing Remover/Installer C3132-A

G02657127

Courtesy of DAIMLERCHRYSLER CORP.

Fig 13: Identifying Camshaft Holder C-3509

G02657128

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Distributor Bushing Puller C-3052

G02657129

Courtesy of DAIMLERCHRYSLER CORP.

Fig 15: Identifying Distributor Bushing Driver/Burnisher C-3053

G02657130

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Piston Ring Compressor C-385

G02657131

Courtesy of DAIMLERCHRYSLER CORP.

Fig 17: Identifying Crankshaft Main Bearing Remover C-3059

G02657132

Courtesy of DAIMLERCHRYSLER CORP.

Fig 18: Identifying Cylinder Bore Gauge C-119

G02657133

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying Pressure Tester Kit 7700

G02657134

Courtesy of DAIMLERCHRYSLER CORP.

Fig 20: Identifying Bloc-Check-Kit C-3685-A

G02657135

Courtesy of DAIMLERCHRYSLER CORP.
