Diagnosis And Testing-Engine Diagnosis-Performance
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

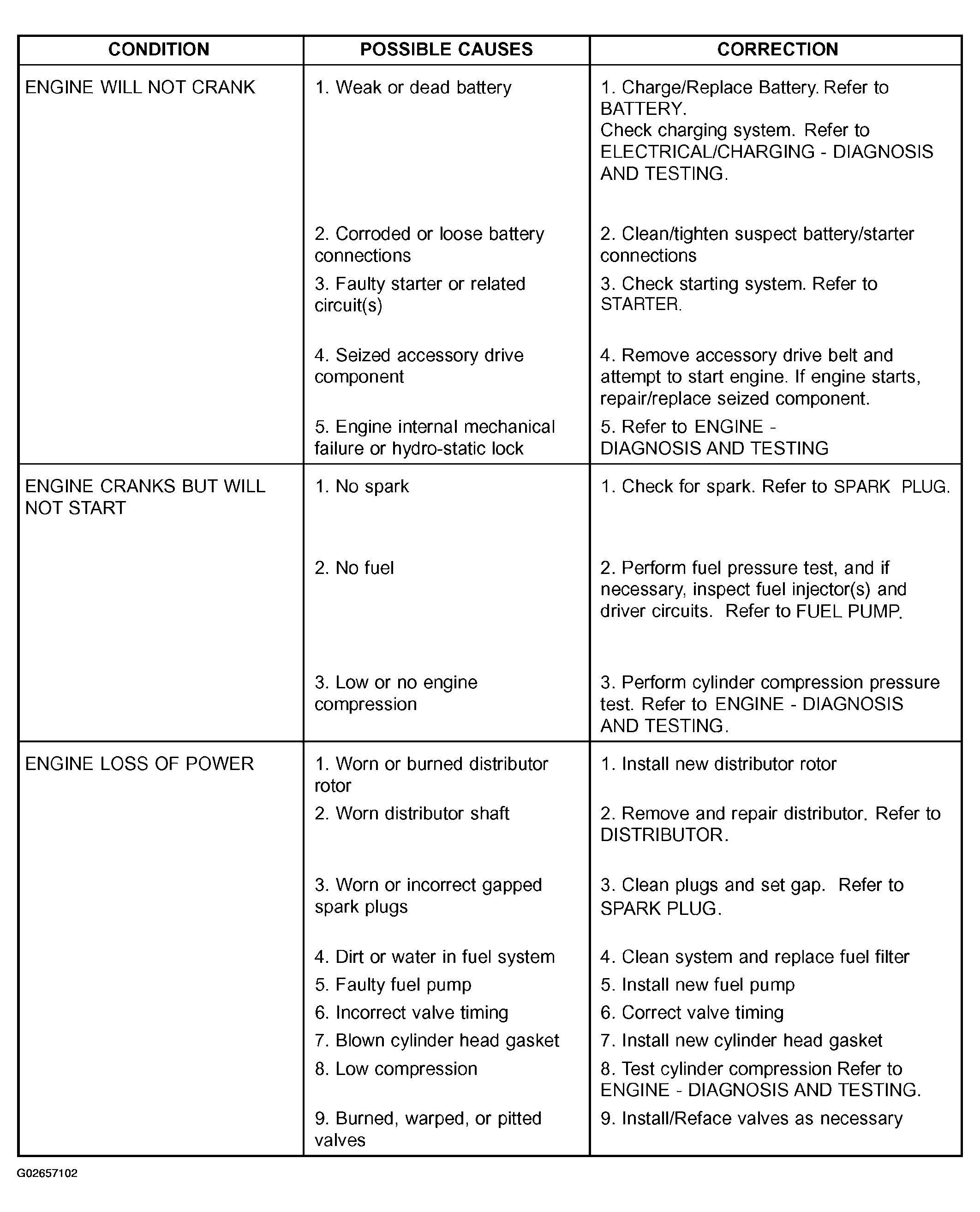

Fig 1: Engine Performance Diagnosis Chart (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

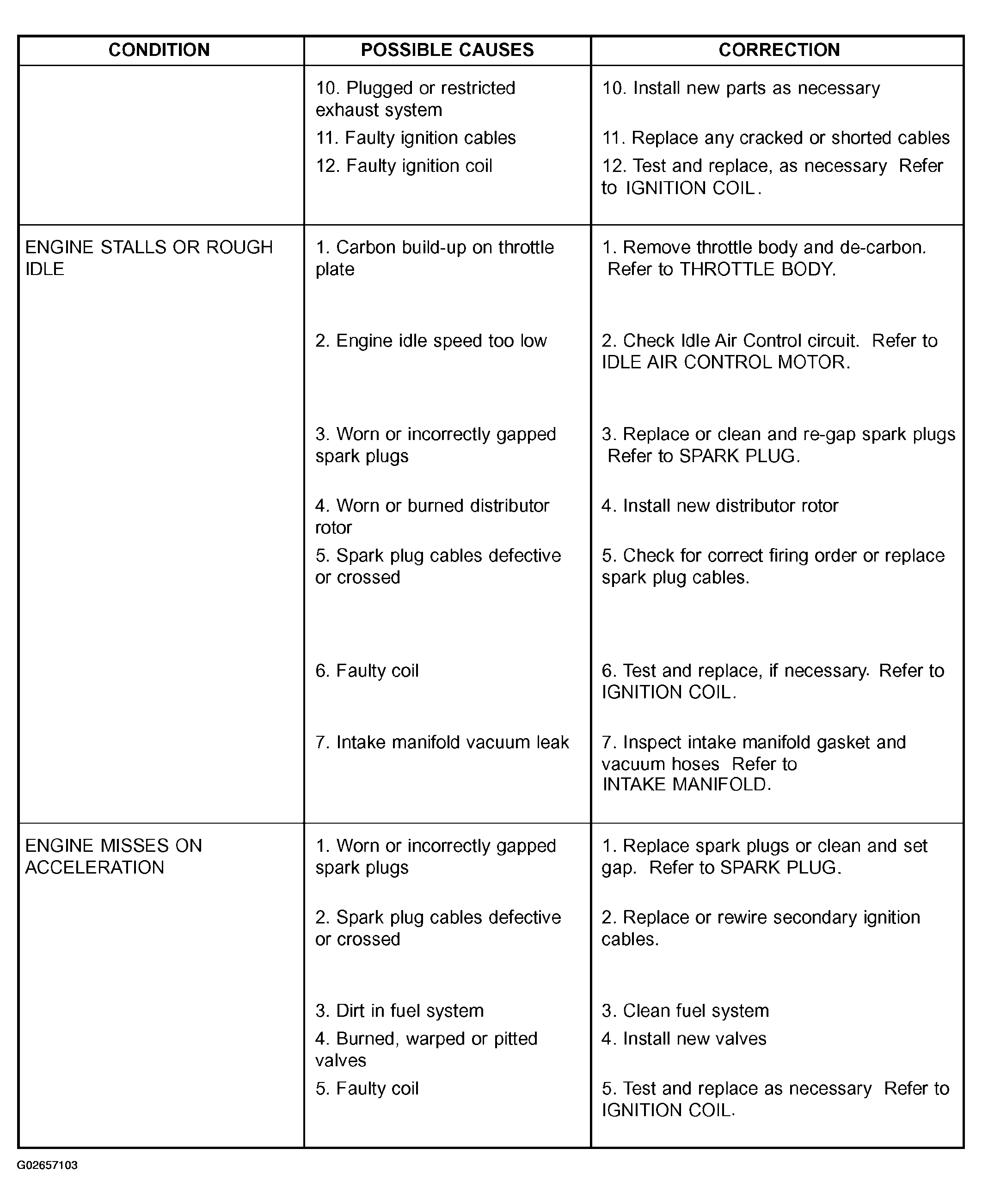

Fig 2: Engine Performance Diagnosis Chart (2 Of 2)
