Crankshaft Main Bearings: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan (Refer to ENGINE/LUBRICATION/OIL PAN-REMOVAL ).
  2. Remove the oil pump from the rear main bearing cap (Refer to ENGINE/LUBRICATION/OIL PUMP-REMOVAL ).
  3. Identify bearing caps before removal. Remove bearing caps one at a time.
  4. Remove upper half of bearing by inserting Crankshaft Main Bearing Remover/Installer Tool C-3059 into the oil hole of crankshaft (Fig 1).

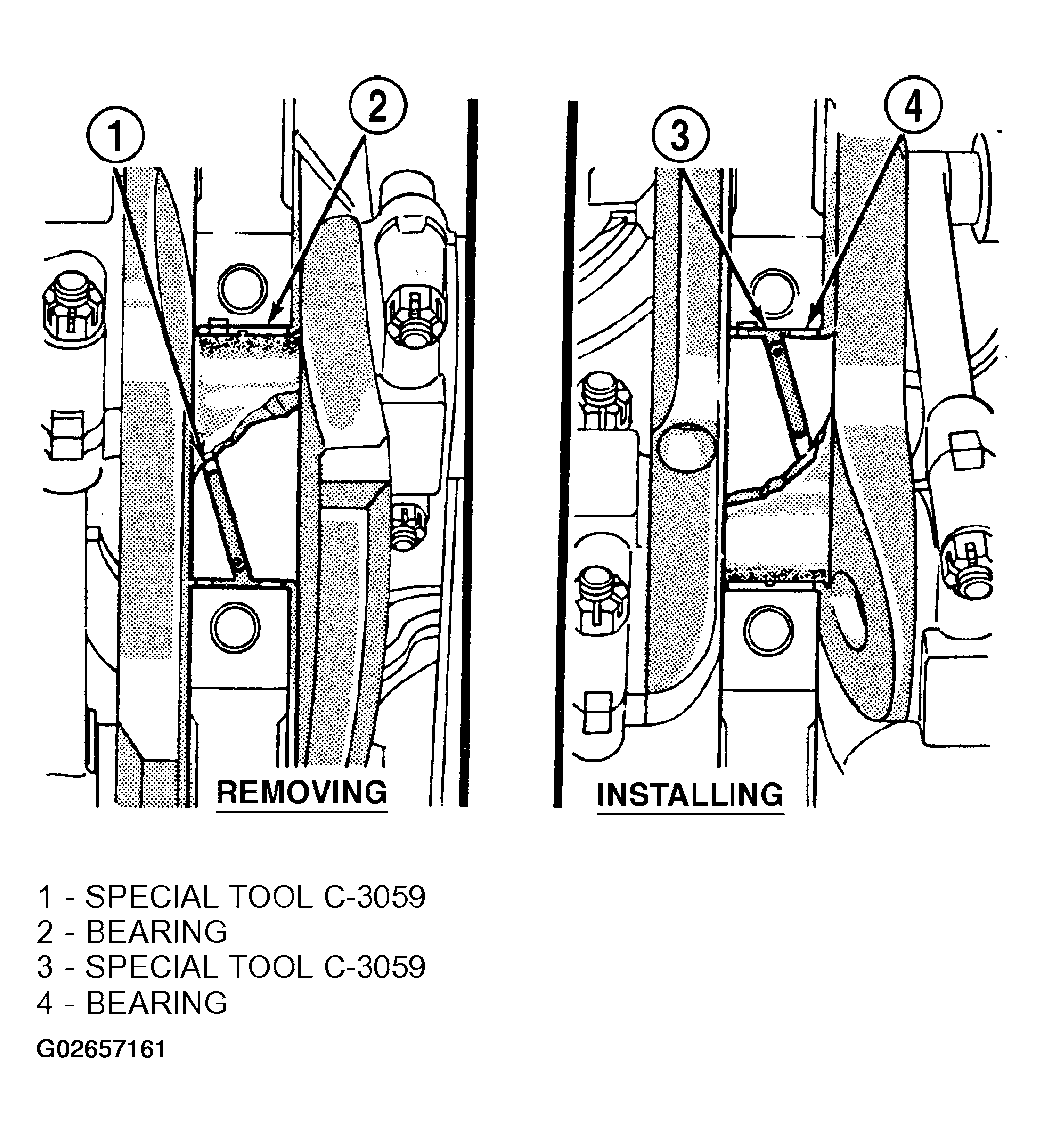

    Fig 1: Removing And Installing Upper Main Bearing With Tool C-3059
    G02657161Courtesy of DAIMLERCHRYSLER CORP.
  5. Slowly rotate crankshaft clockwise, forcing out upper half of bearing shell.
