Crankshaft Main Bearings: Description

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Main bearings (Fig 1) are located in the cylinder block. One half of the main bearing is located in the crankshaft main bore the other half of the matching bearing is located in the main bearing cap. There are five main bearings. Number three main bearing is flanged, this flange controls crankshaft thrust.

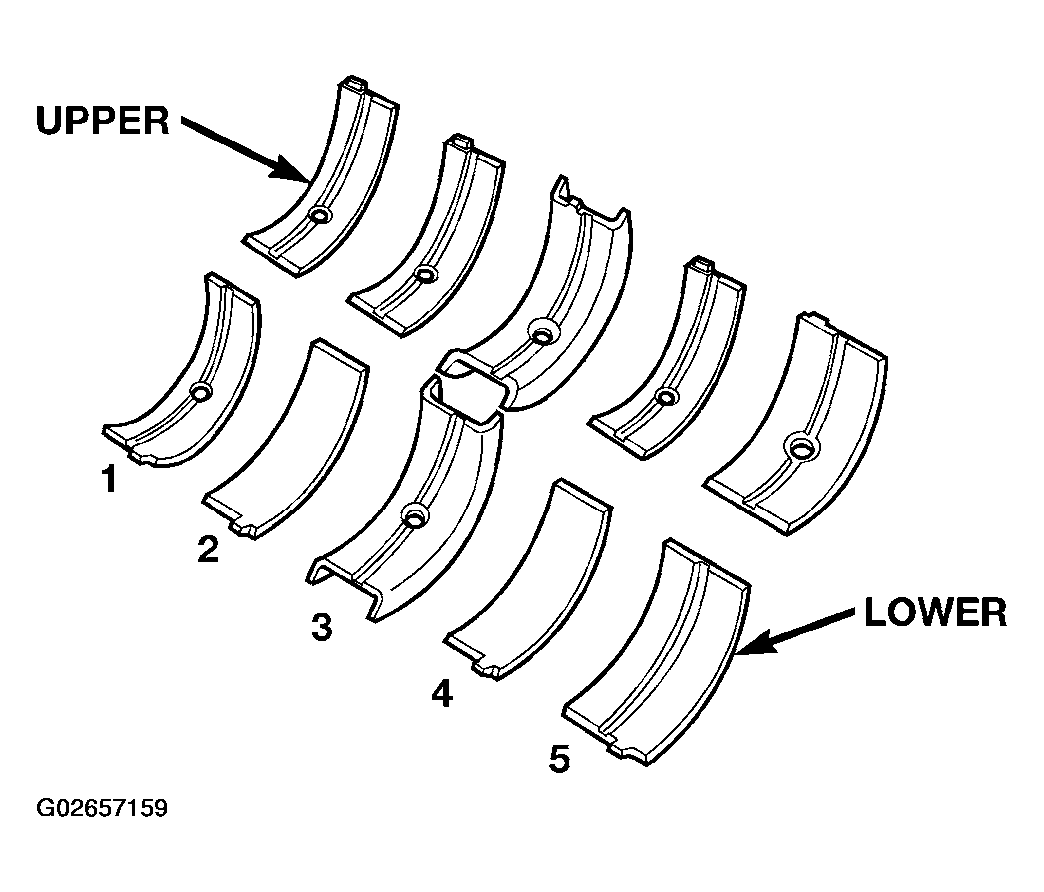

Fig 1: Identifying Main Bearing Orientation
G02657159Courtesy of DAIMLERCHRYSLER CORP.
