Timing Belt / Chain Cover(S): Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean timing chain cover and block surface. Inspect cover gasket and replace as necessary.

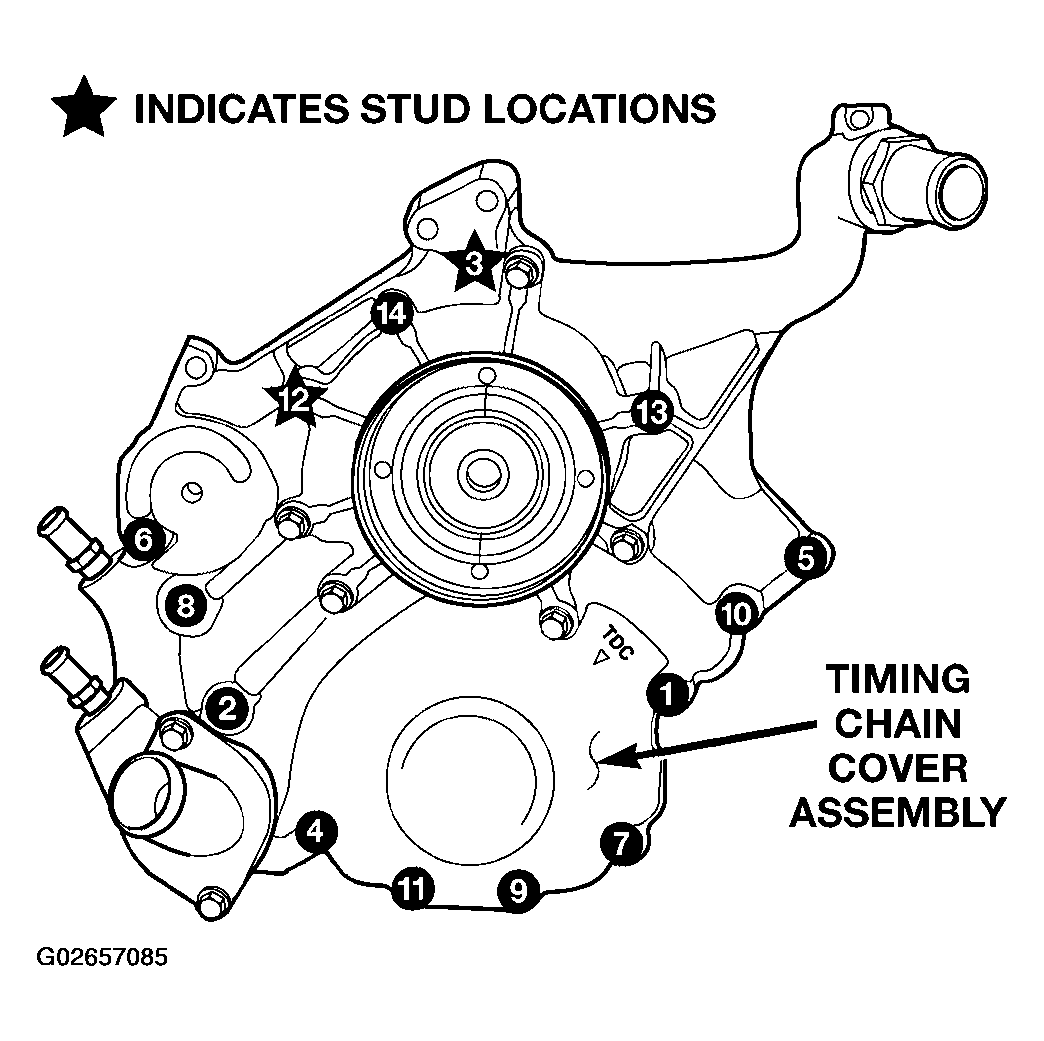

  2. Install cover and gasket. Tighten fasteners in sequence as shown in (Figure) to 54 N.m (40 ft. lbs.).
  3. Install the A/C compressor (Refer to A/C COMPRESSOR ).
  4. Install the generator (Refer to GENERATOR ).
  5. Install crankshaft damper (Refer to ENGINE/ENGINE BLOCK/VIBRATION DAMPER-INSTALLATION ).
  6. Install accessory drive belt tensioner assembly (Refer to BELT TENSIONERS ).
  7. Install radiator lower hose.
  8. Install both heater hoses.
  9. Install radiator shroud and viscous fan drive assembly .
  10. Fill cooling system (Refer to STANDARD PROCEDURE-REFILLING COOLING SYSTEM 4.7L ).
  11. Connect the battery negative cable.
