Rear Mount: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Raise vehicle on hoist.
Using a suitable jack, support transmission.
Remove the nut from the insulator mount through bolt (Manual transmission and 4x2 automatic transmission only) (Fig 1) (Fig 2).

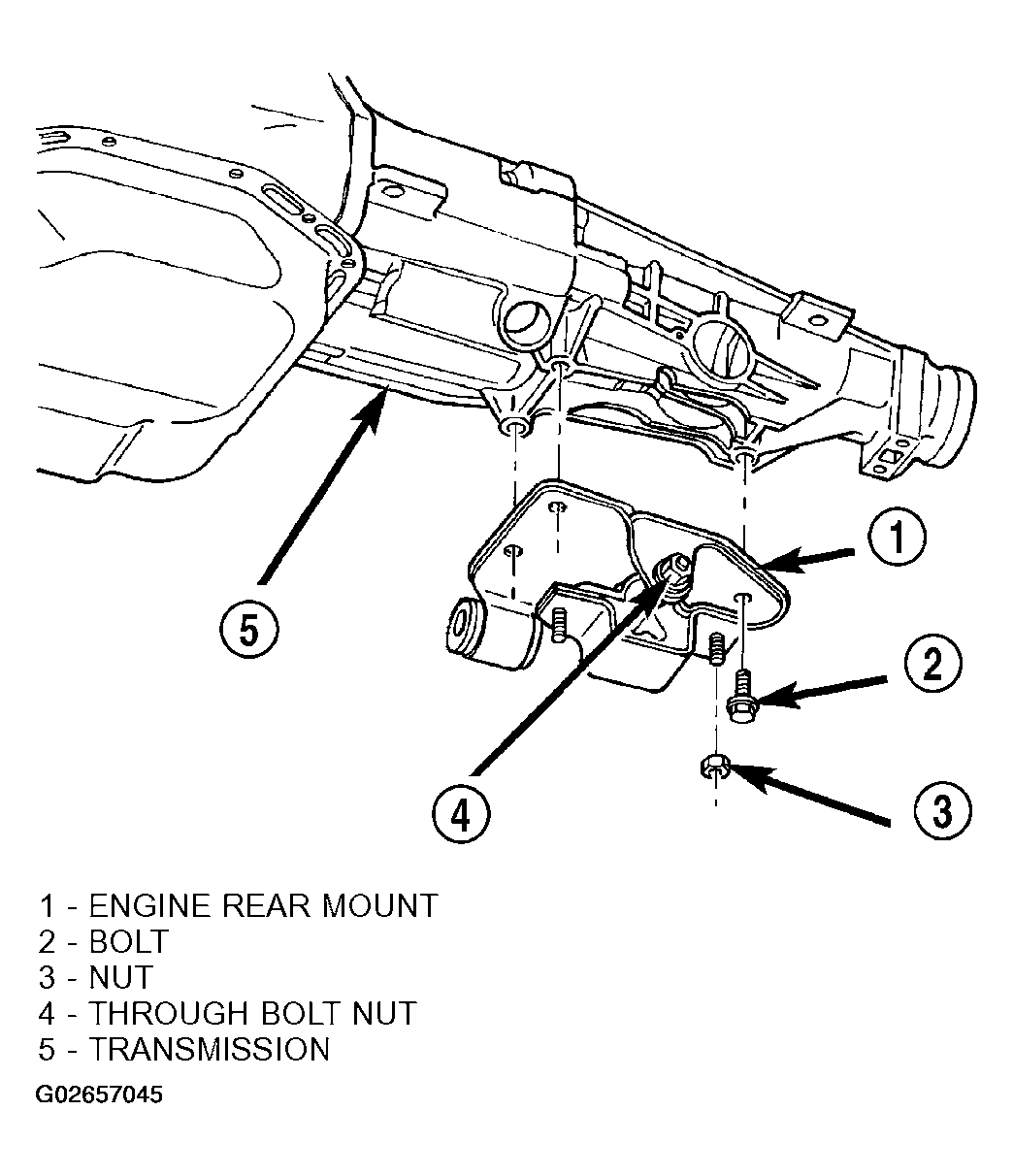

Fig 1: Removing Engine Rear Mount-4X2 Automatic Transmission
Courtesy of DAIMLERCHRYSLER CORP.

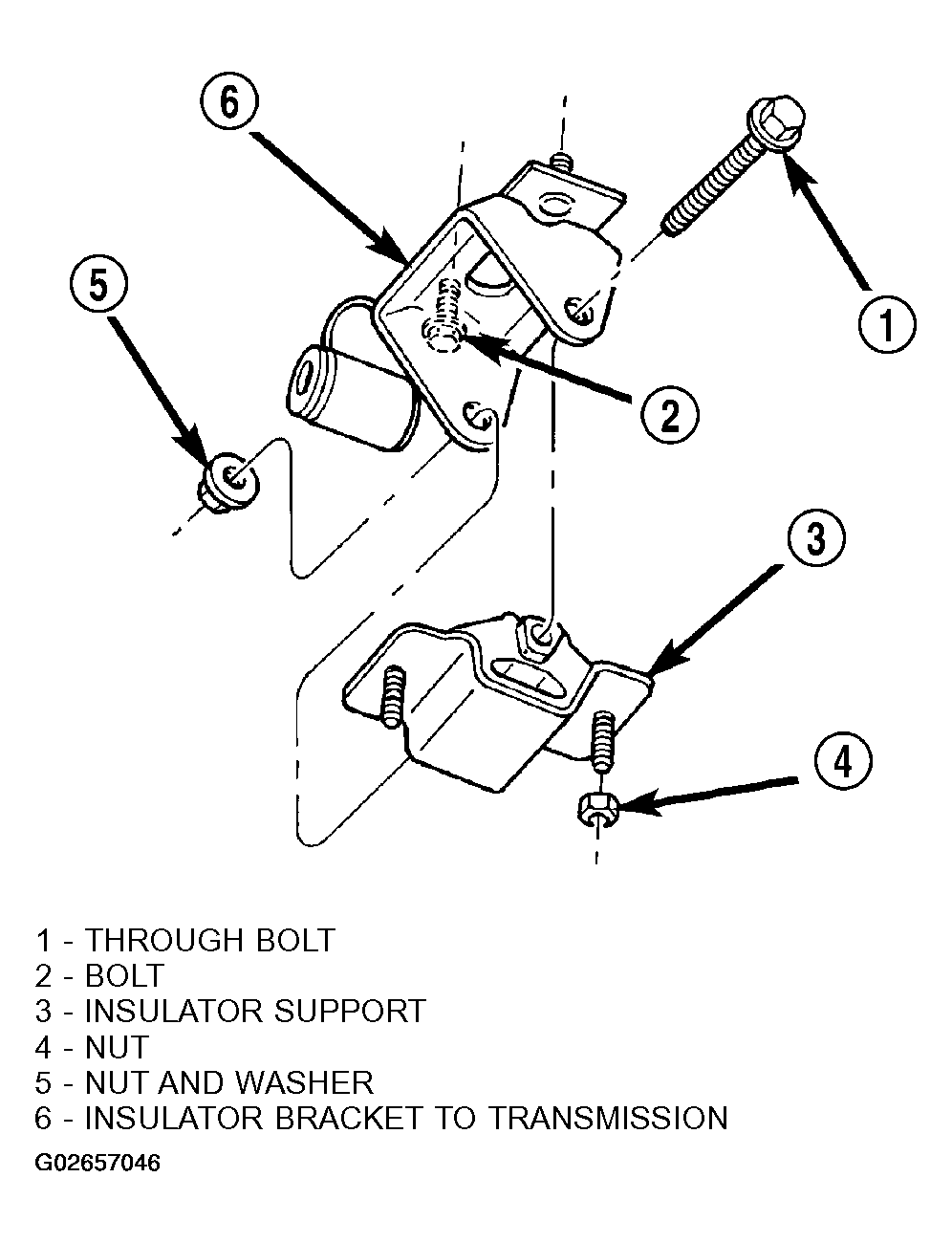

Fig 2: Removing Engine Rear Mount-4X2 and 4X4 Manual Transmission
Courtesy of DAIMLERCHRYSLER CORP.
Remove the four bolts and washers retaining the mount to the transmission (4x4 automatic transmission only) (Fig 3).

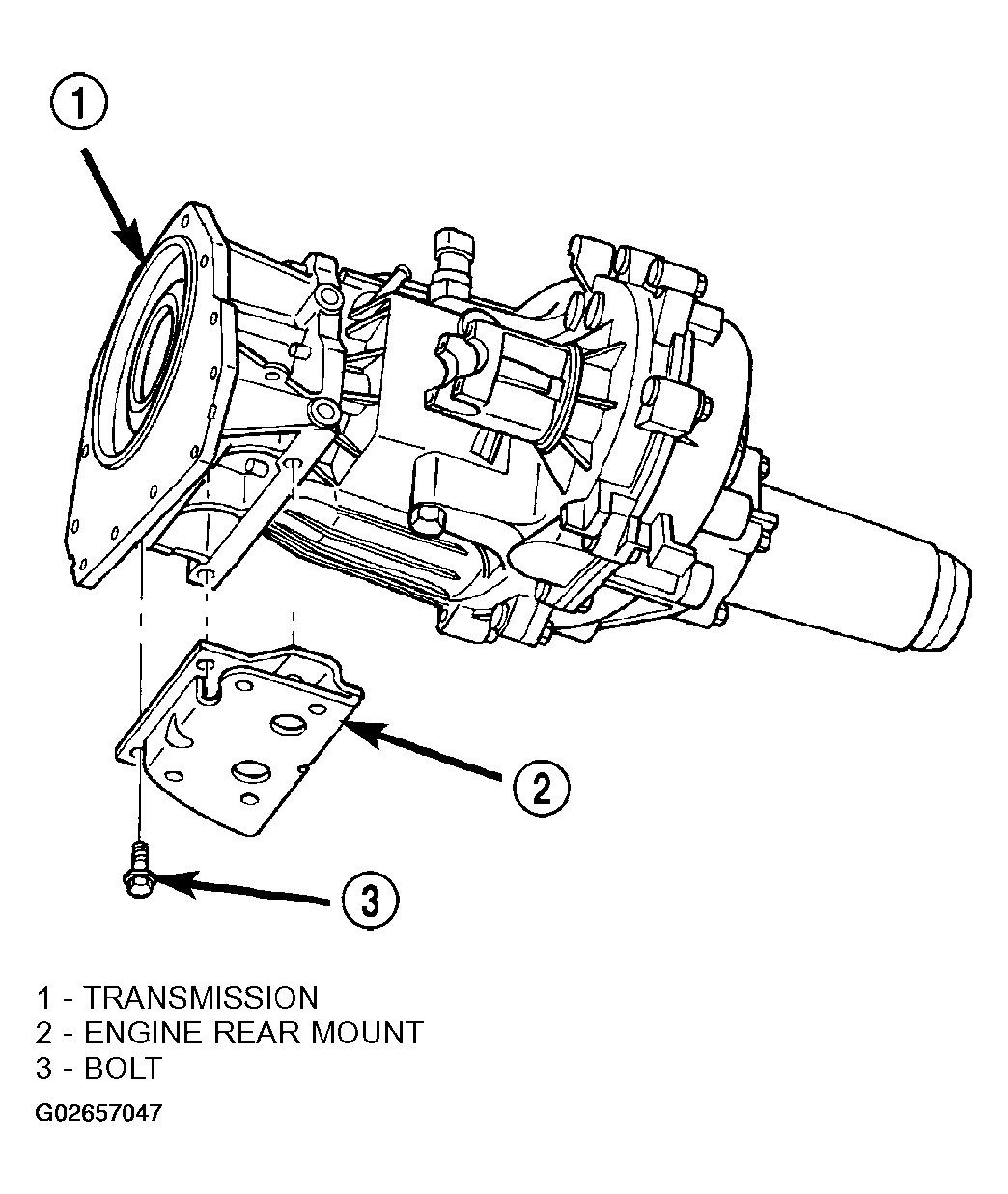

Fig 3: Removing Engine Rear Mount-4X4 Automatic Transmission
Courtesy of DAIMLERCHRYSLER CORP.
Raise the transmission enough to remove the through bolt (Manual transmission and 4x2 automatic transmission only) (Fig 1) (Fig 2).
Raise the transmission and remove the bolts retaining the mount to the crossmember (4x4 automatic transmission only) (Fig 3).
Remove the two nuts retaining the isolator to the crossmember (Manual transmission and 4x2 automatic transmission only) (Fig 1) (Fig 2).
Remove the bolts (two bolts manual transmission) (three bolts 4x2 automatic transmission) retaining the insulator bracket to the transmission.
