Oil Pressure Sensor/ Switch: Removal
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative cable from the battery.
- Raise vehicle on hoist.
- Remove front splash shield.

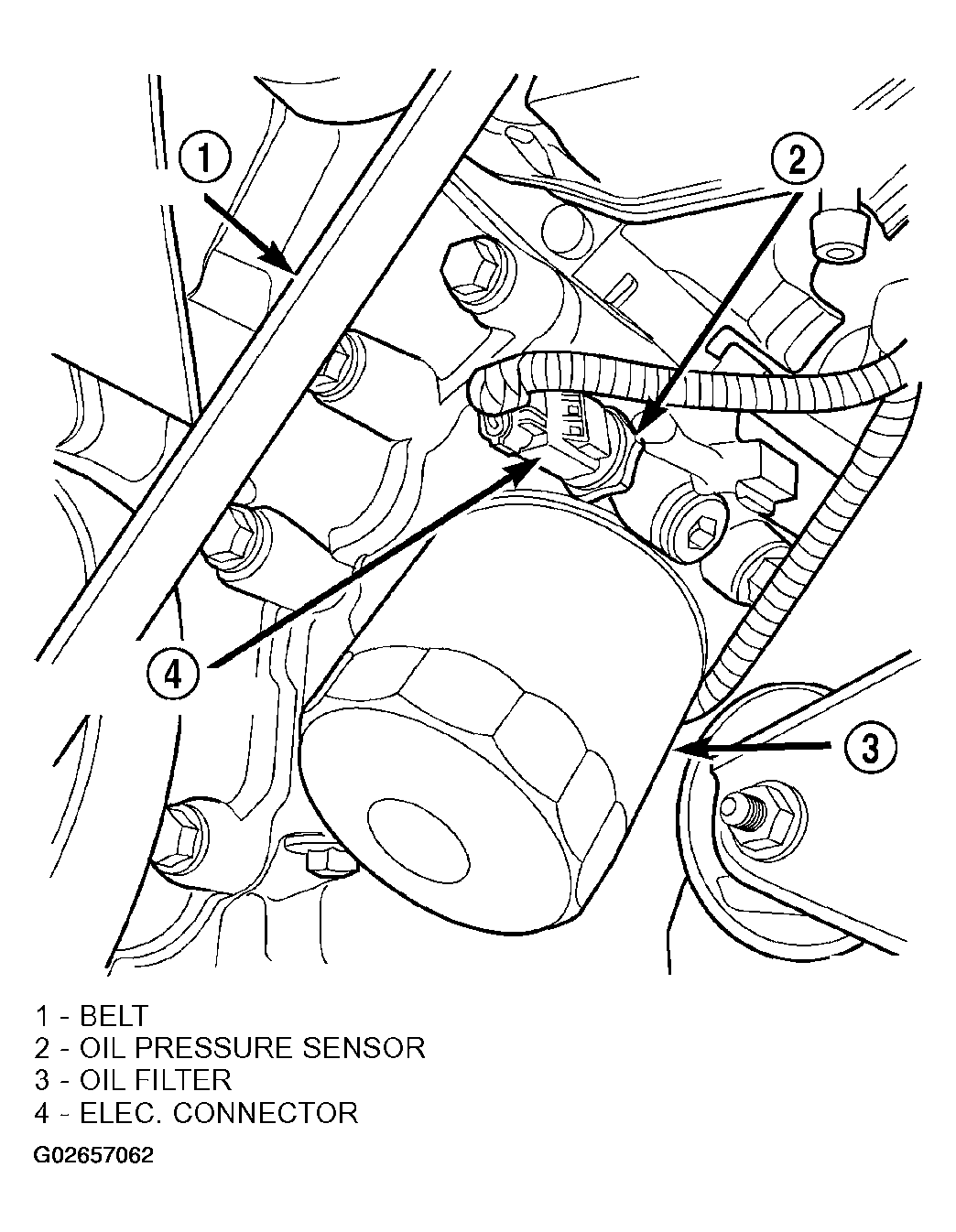

- Disconnect oil pressure sender wire (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the pressure sender (Fig 1).
