Flex Plate: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate retaining bolts to 60 N.m (45 ft. lbs.) in the sequence shown (Fig 1).

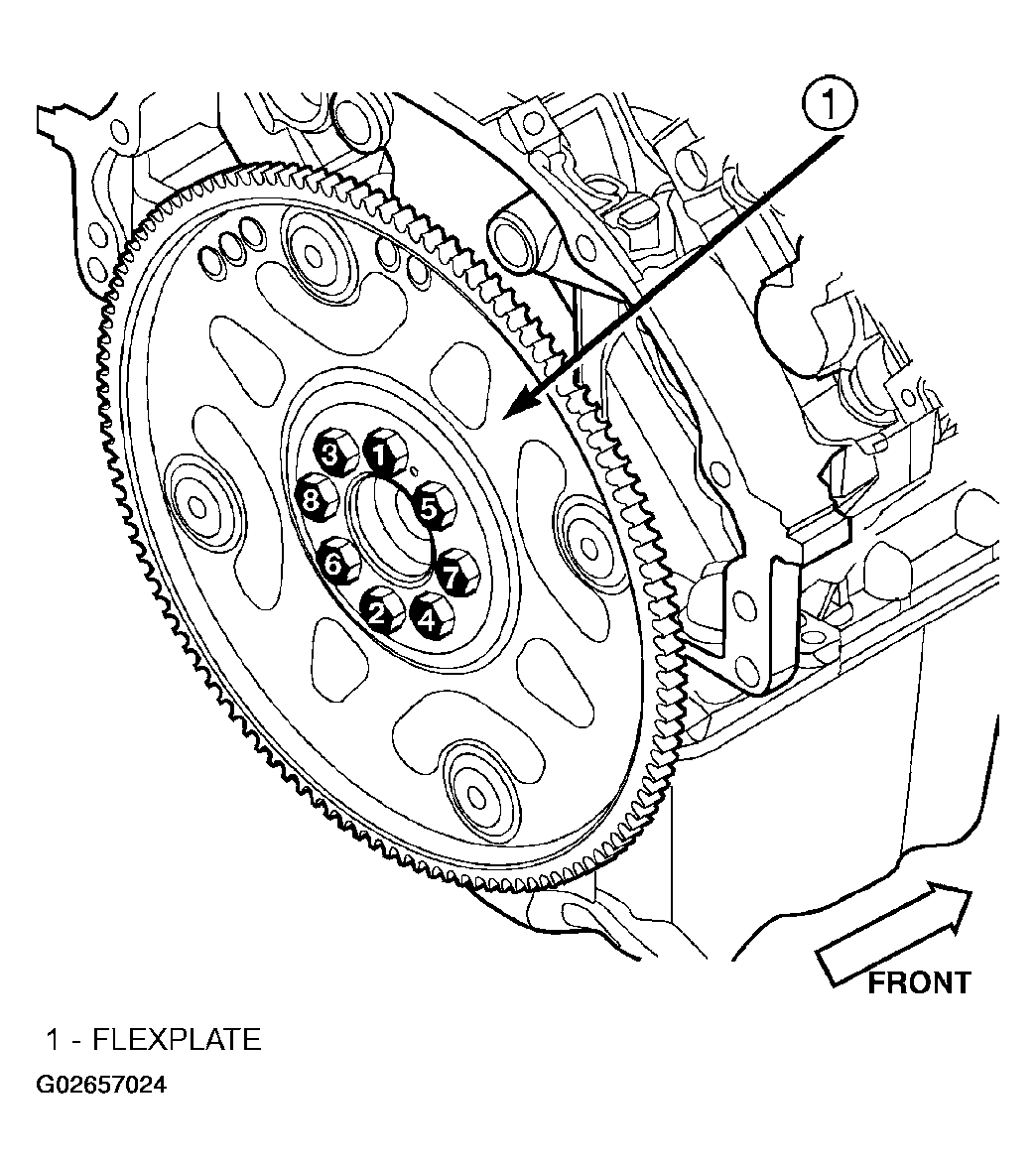

    Fig 1: Identifying Flexplate Tightening Sequence
    G02657024Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the transmission.
