Left Exhaust Manifold

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install exhaust manifold and gasket from below engine compartment.
  2. Install lower exhaust manifold fasteners (Fig 1). DO NOT tighten until all fasteners are in place.

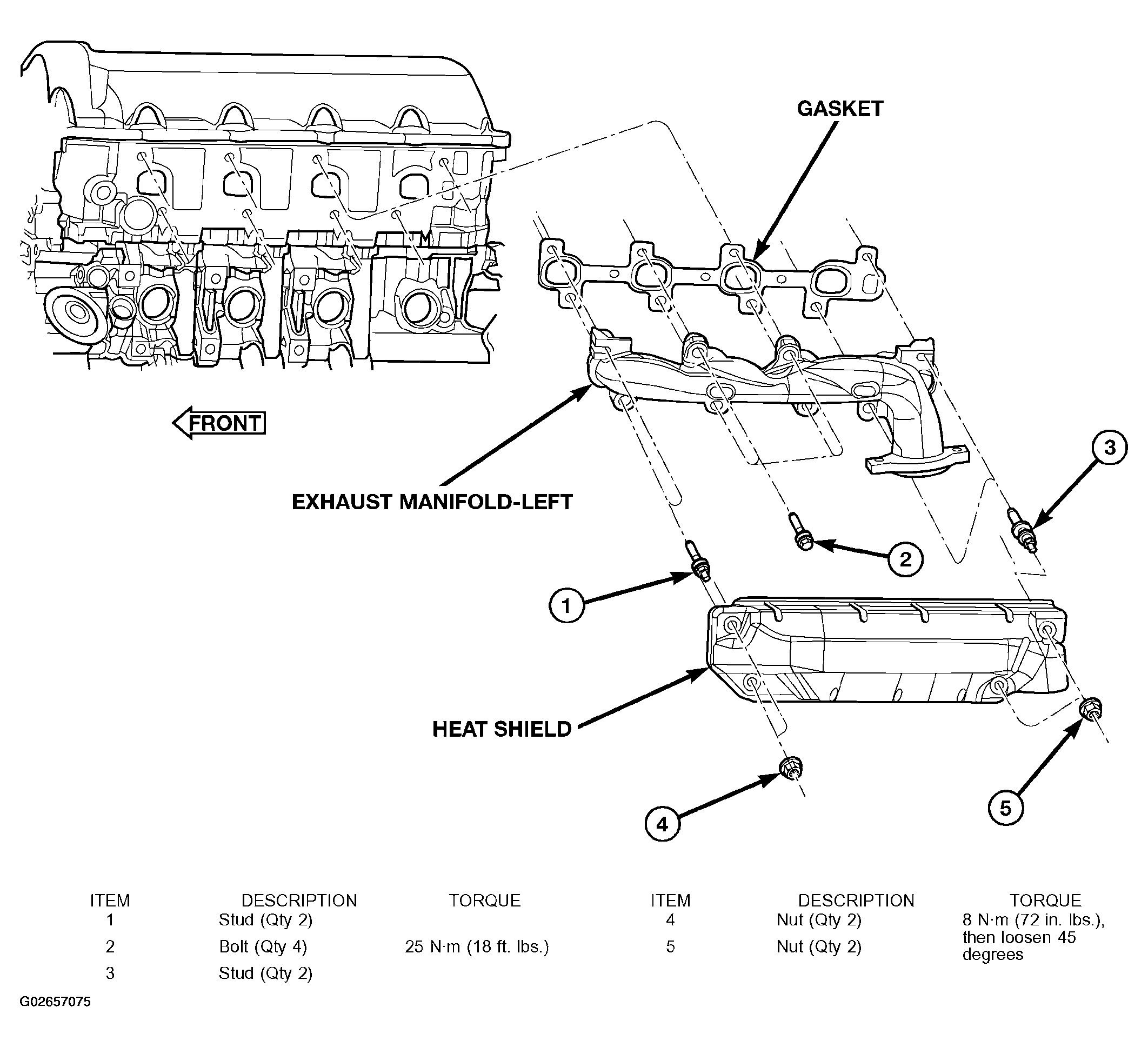

    Fig 1: Installing Left Exhaust Manifold
    G02657075Courtesy of DAIMLERCHRYSLER CORP.
  3. Lower vehicle and install upper exhaust manifold fasteners (Fig 1). Tighten all manifold bolts starting at center and working outward to 25 N.m (18 ft. lbs.).
    CAUTION: Over tightening heat shield fasteners, may cause shield to distort and/or crack.
  4. Install exhaust manifold heat shield (Fig 1). Tighten fasteners to 8 N.m (72 in. lbs.), then loosen 45 degrees.
  5. Connect exhaust pipe to manifold.
  6. Connect negative cable to battery.
