4.7L Engine

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

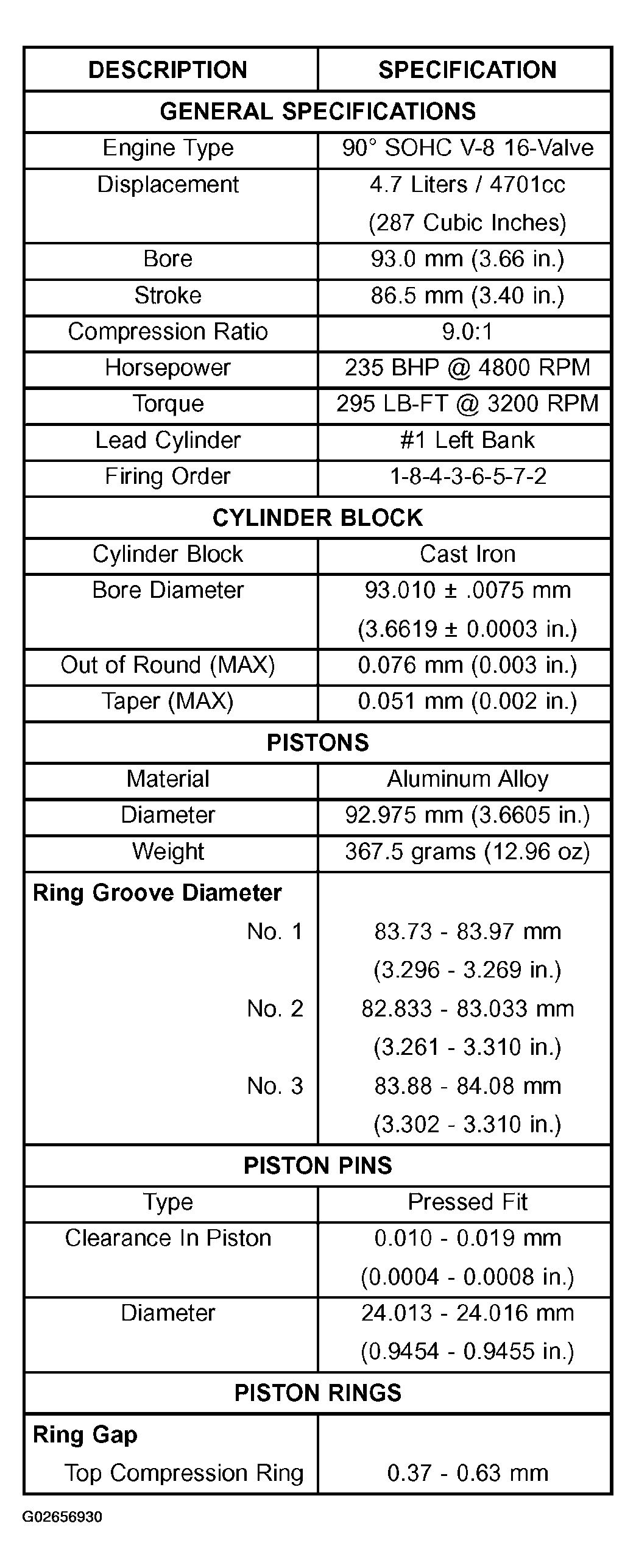

Fig 1: Engine Parts Specification Chart (1 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

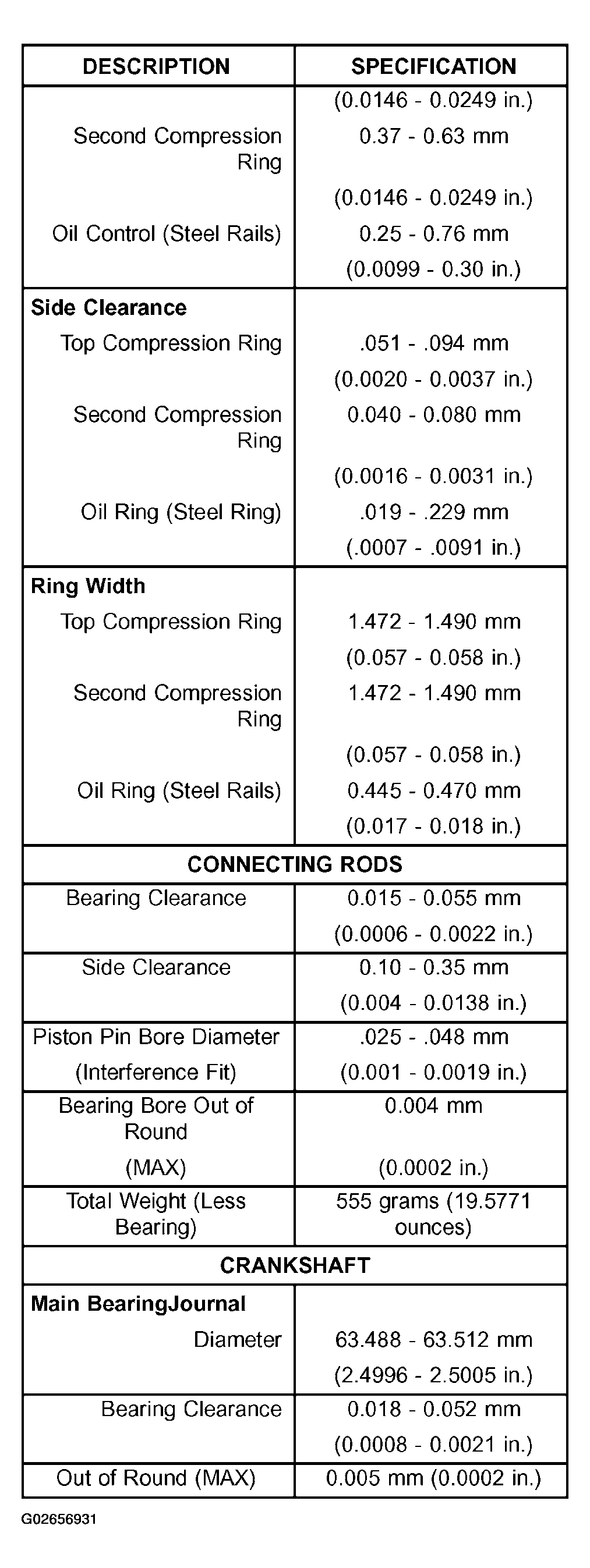

Fig 2: Engine Parts Specification Chart (2 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

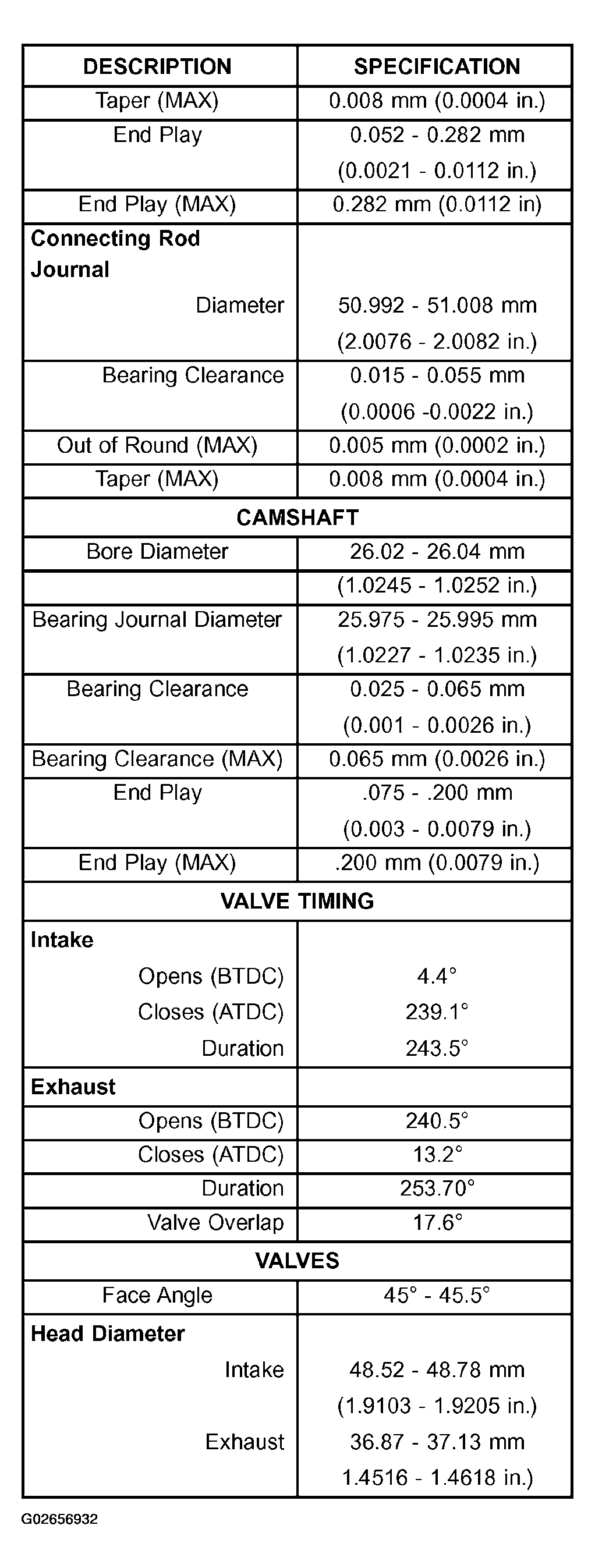

Fig 3: Engine Parts Specification Chart (3 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

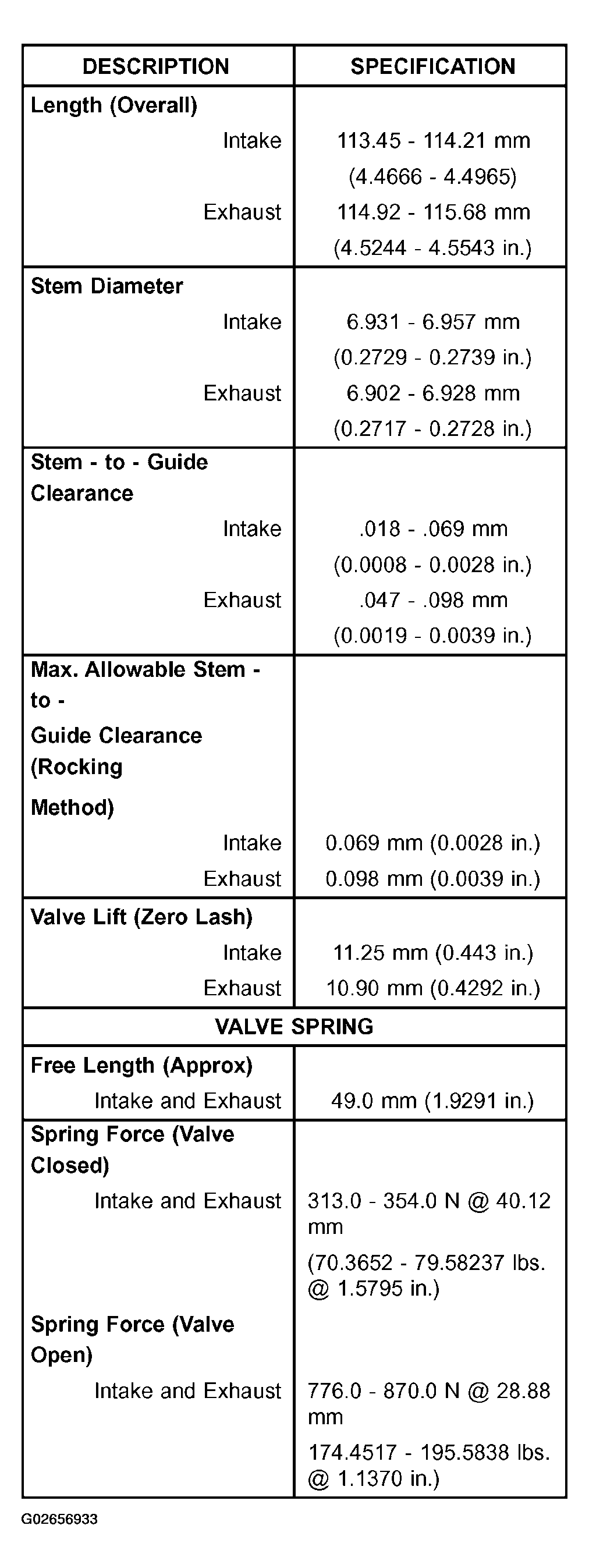

Fig 4: Engine Parts Specification Chart (4 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

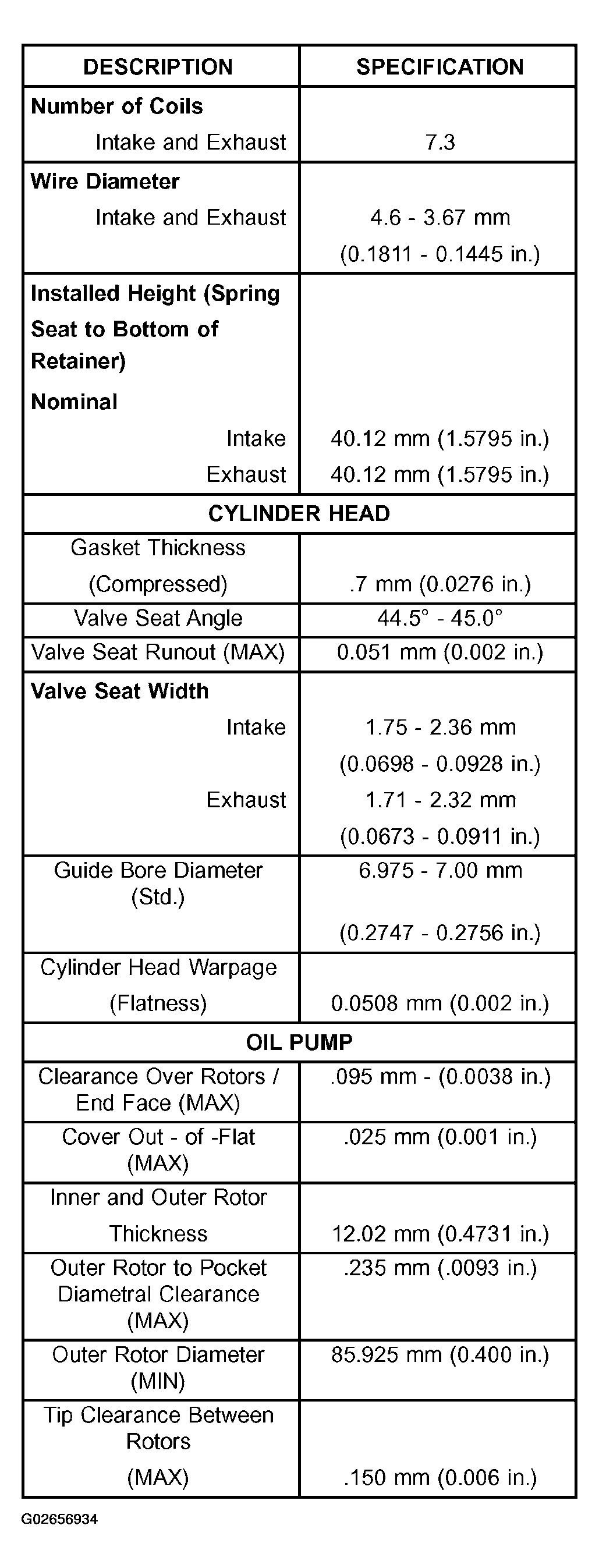

Fig 5: Engine Parts Specification Chart (5 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.

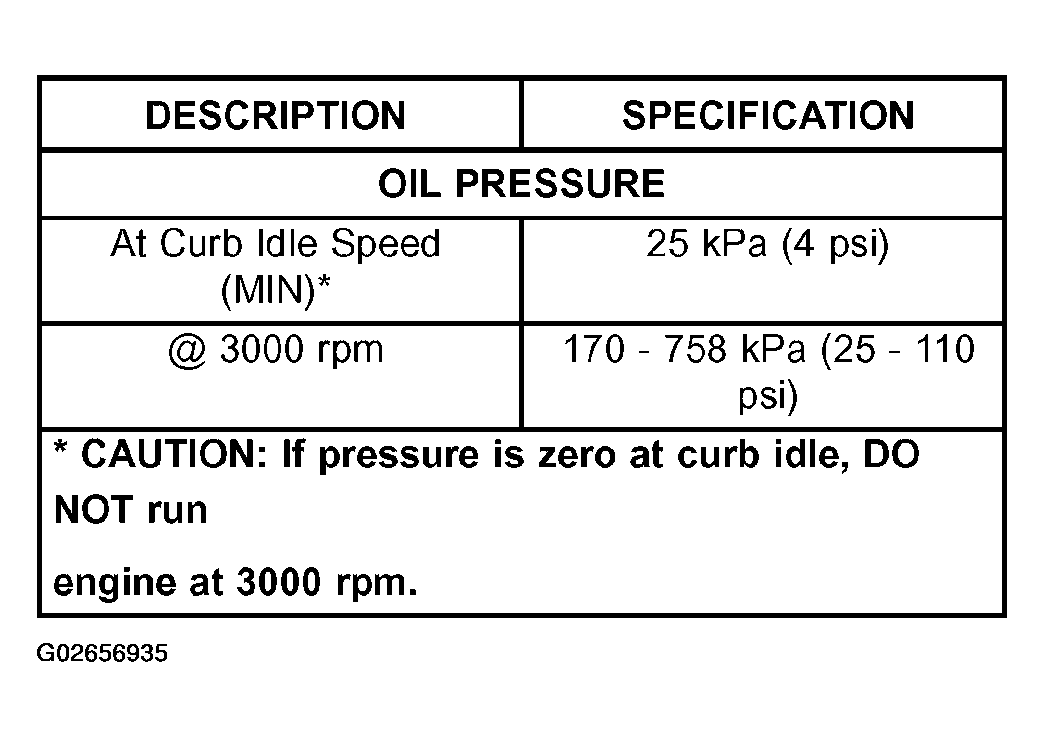

Fig 6: Engine Parts Specification Chart (6 Of 6)

Courtesy of DAIMLERCHRYSLER CORP.
