Diagnosis And Testing-Engine Diagnosis-Lubrication

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

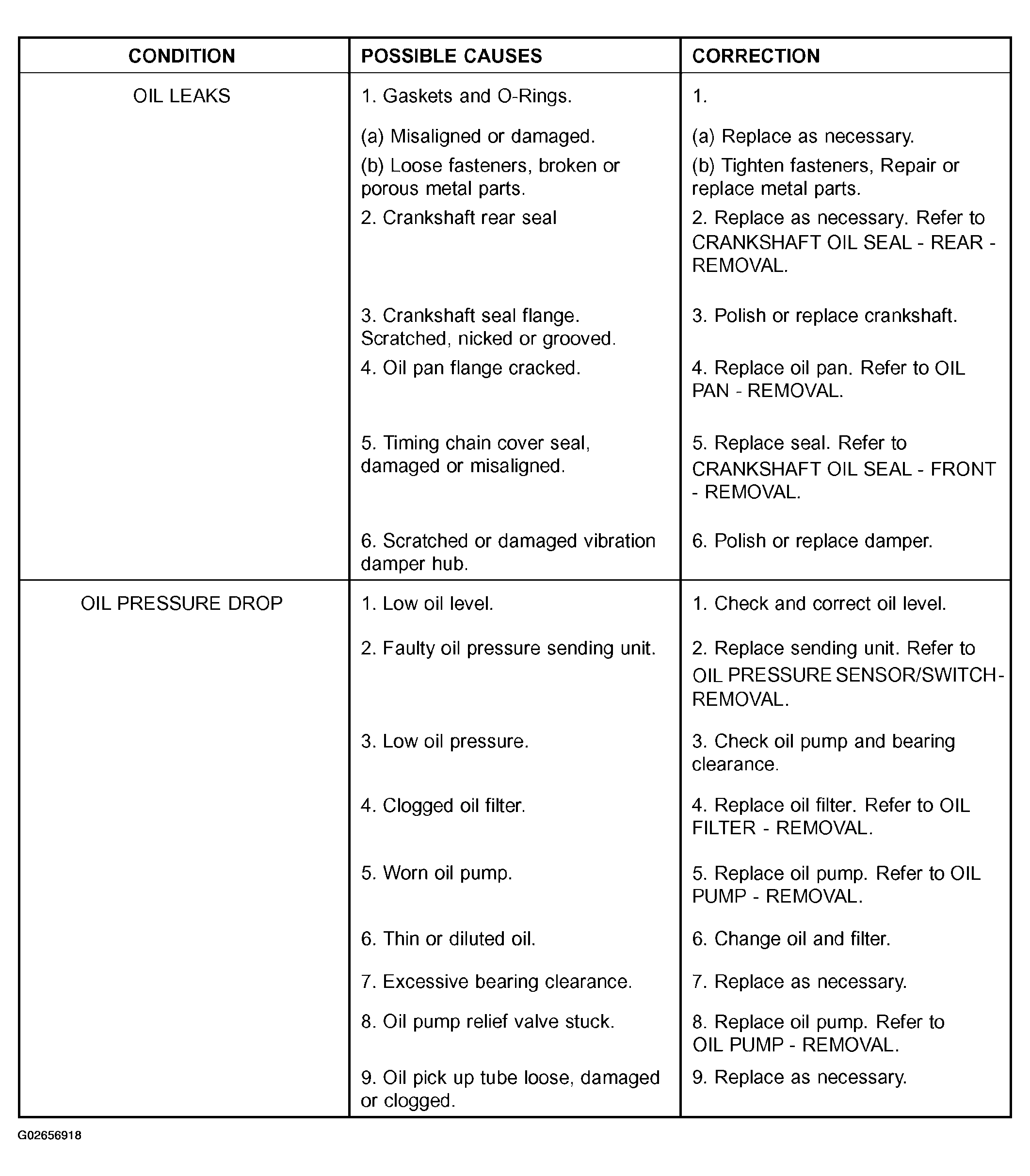

Fig 1: Engine Diagnosis And Lubrication Chart (1 Of 2)
G02656918Courtesy of DAIMLERCHRYSLER CORP.

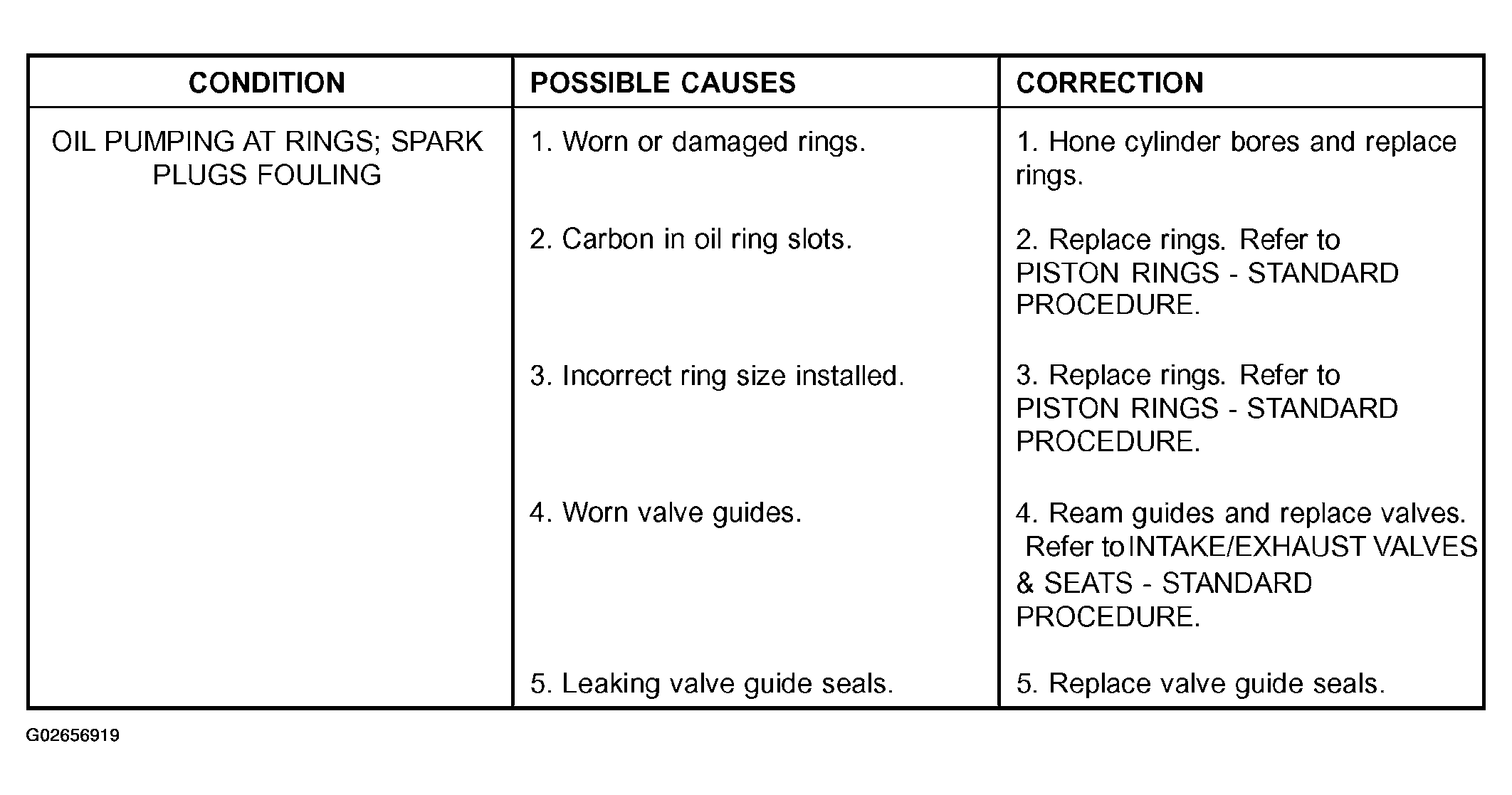

Fig 2: Engine Diagnosis And Lubrication Chart (2 Of 2)
G02656919Courtesy of DAIMLERCHRYSLER CORP.
