Installation-Right Side

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.
CAUTION: DO NOT allow other components including the wire harness to rest on or against the engine cylinder head cover. Prolonged contact with other objects may wear a hole in the cylinder head cover.
  1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.
  2. Install cylinder head cover and hand start all fasteners. Verify that all double ended studs are in the correct location shown in (Fig 1).

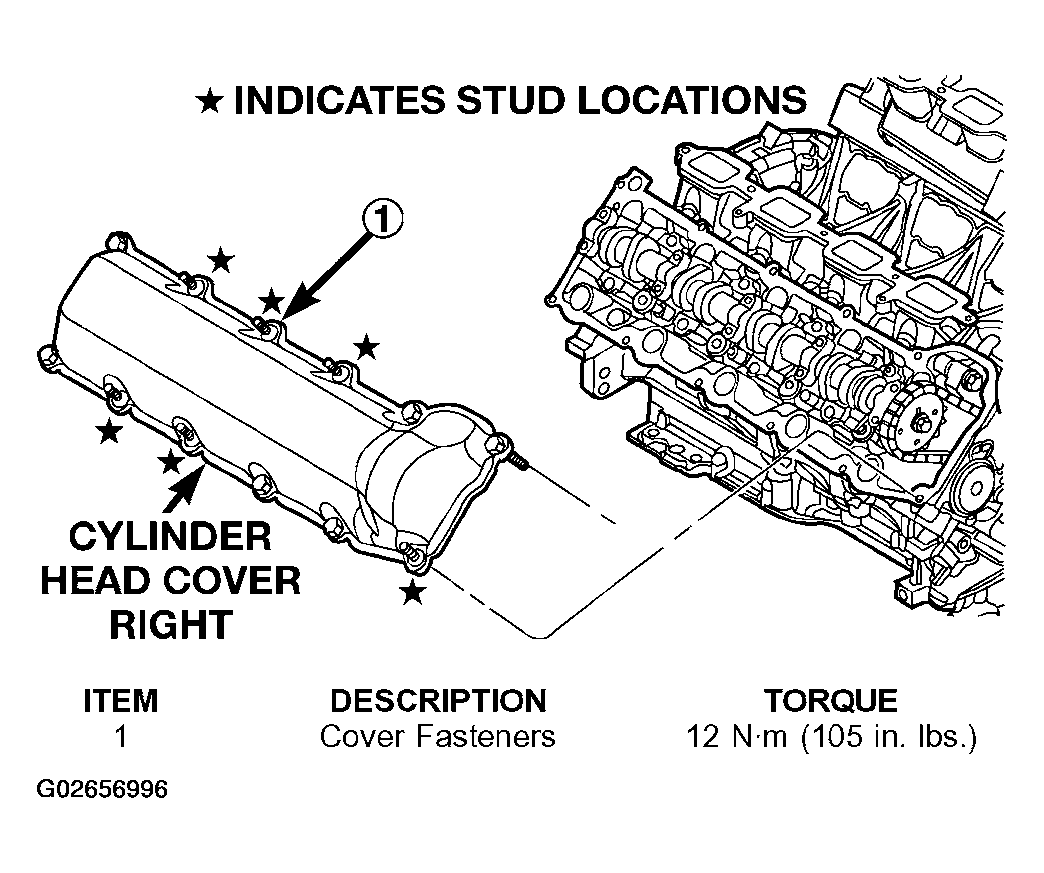

    Fig 1: Installing Cylinder Head Cover-Right
    G02656996Courtesy of DAIMLERCHRYSLER CORP.
  3. Tighten cylinder head cover bolts and double ended studs to 12 N.m (105 in. lbs).
  4. Install right rear breather tube and filter assembly.
  5. Connect injector, ignition coil electrical connectors and harness retaining clips.
  6. Install the oil fill tube.
  7. Install PCV hose.
  8. Install heater hoses.
  9. Install air conditioning compressor retaining bolts.
  10. Install accessory drive belt (Refer to DRIVE BELTS ).
  11. Fill Cooling system (Refer to STANDARD PROCEDURE-REFILLING COOLING SYSTEM 4.7L ).
  12. Install air cleaner assembly, resonator assembly and air inlet hose.
  13. Connect battery negative cable.
