Installation-Left Side

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not use harsh cleaners to clean the cylinder head covers. Severe damage to covers may occur.
CAUTION: DO NOT allow other components including the wire harness to rest on or against the cylinder head cover. Prolonged contact with other objects may wear a hole in the engine cylinder head cover.
  1. Clean cylinder head cover and both sealing surfaces. Inspect and replace gasket as necessary.
  2. Install cylinder head cover and hand start all fasteners. Verify that all studs are in the correct location shown in (Fig 1).

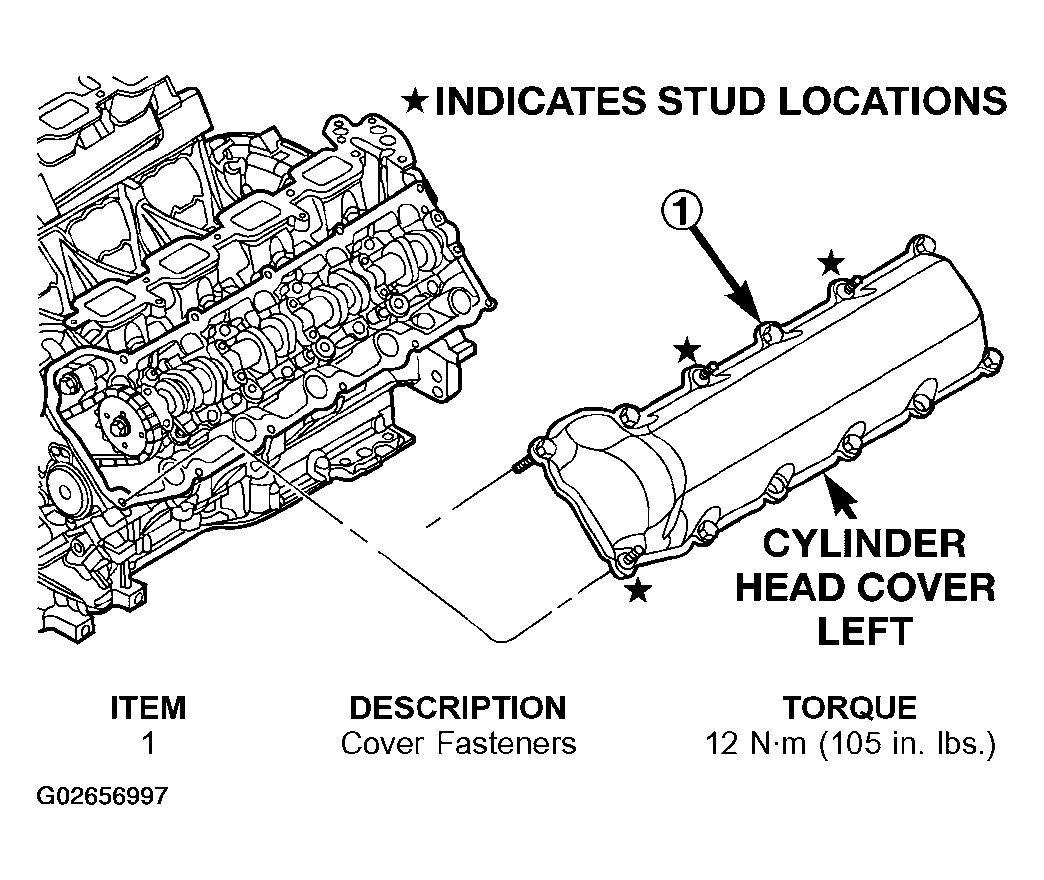

    Fig 1: Installing Cylinder Head Cover-Left
    G02656997Courtesy of DAIMLERCHRYSLER CORP.
  3. Tighten cylinder head cover bolts and double ended studs to 12 N.m (105 in. lbs.).
  4. Install left side breather and connect breather tube.
  5. Connect injector electrical connectors and injector harness retaining clips.
  6. Install the resonator and air inlet hose.
  7. Connect negative cable to battery.
