Section 53 (Engine - 4.7L): Crankshaft: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Main bearings are select fit. (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS-STANDARD PROCEDURE ) for proper bearing selections.
  1. Lubricate upper main bearing halves with clean engine oil.
    CAUTION: When installing crankshaft, use care not to damage bearing surfaces on the crankshaft.
    NOTE: Apply sealant to the target wheel retaining screws prior to installation.
  2. Install the crankshaft target wheel. Torque the mounting screws to 15 N.m (12 ft. lbs.).
  3. Position crankshaft in cylinder block.
  4. Install the thrust washers (Fig 1).
    CAUTION: The bedplate to cylinder block mateing surface must be coated with sealant prior to installation. Failure to do so will cause severe oil leaks.

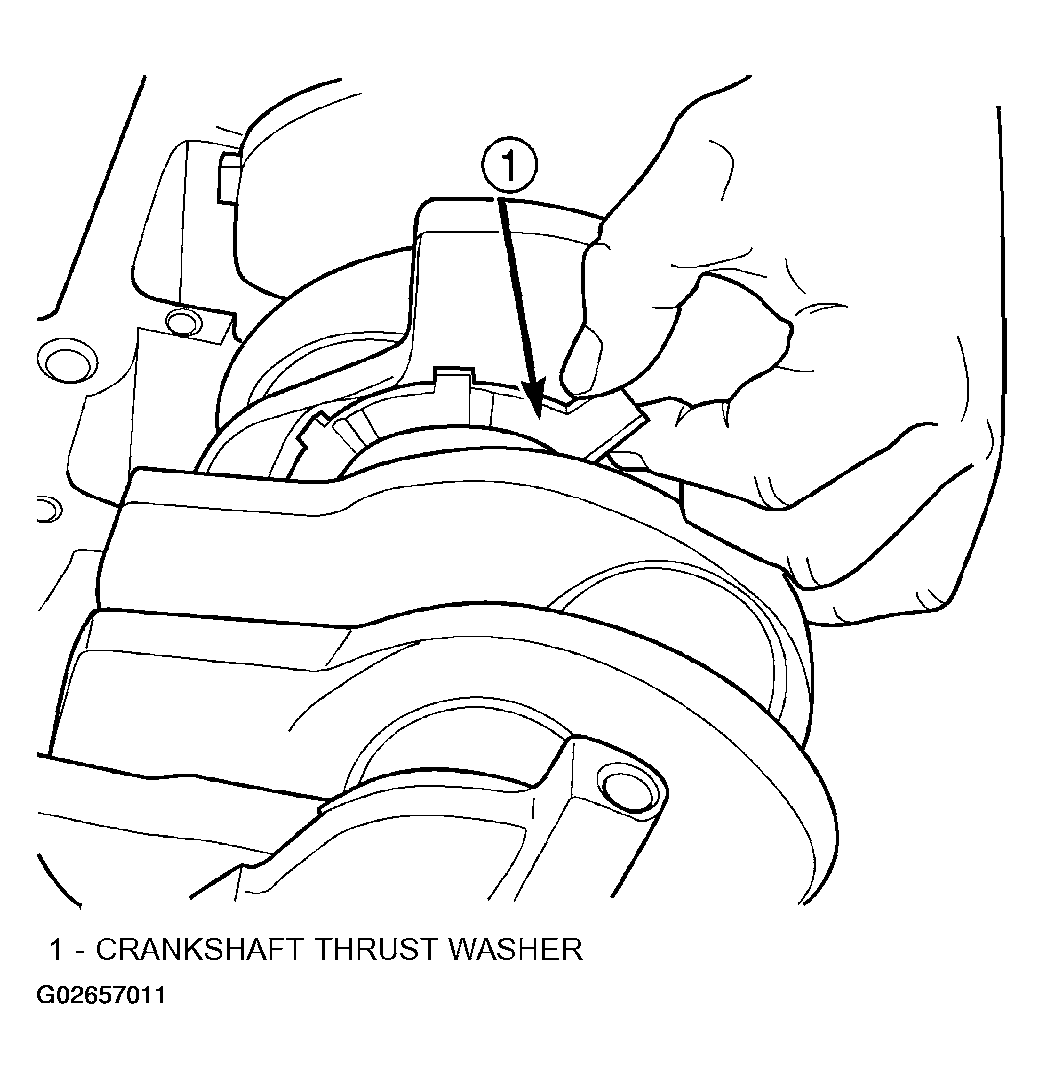

    Fig 1: Installing Crankshaft Thrust Washer
    G02657011Courtesy of DAIMLERCHRYSLER CORP.
    NOTE: The installation time to install the bedplate after the sealant has been applied is critical.
    NOTE: Make sure that the bedplate and cylinder block sealing surfaces are clean and free of oil or other contaminants. Contaminants on the sealing surfaces may cause main bearing distortion and/or oil leaks.
  5. Apply a 2.5 mm (0.100 inch) (Fig 2) bead of Mopar®R Gen II Silicone Rubber Adhesive sealant to the cylinder block-to-bedplate mating surface as shown (Fig 3).

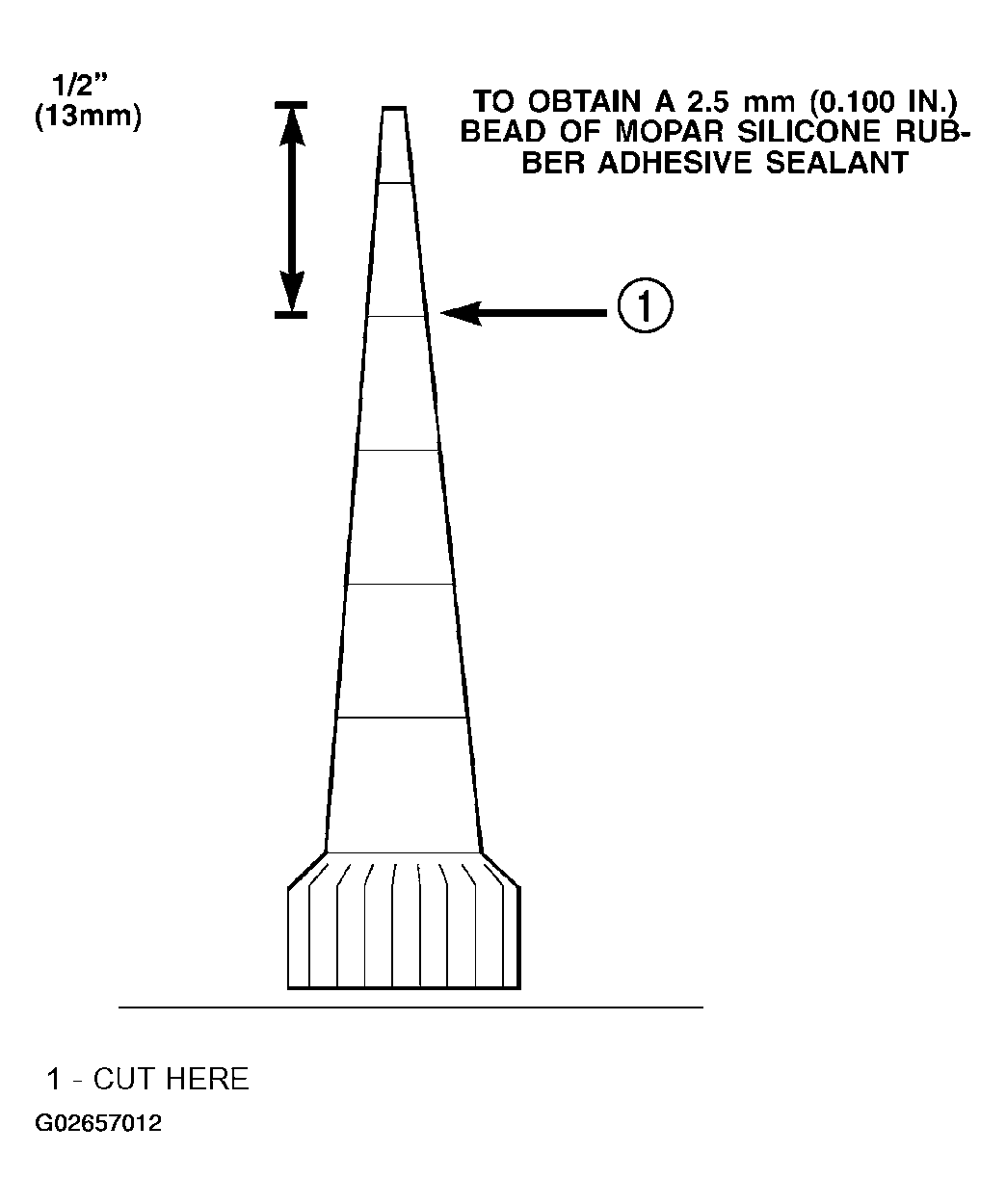

    Fig 2: Identifying Bead For Cutting Applicator To Achieve 2.5 mm (0.100 in.)
    G02657012Courtesy of DAIMLERCHRYSLER CORP.

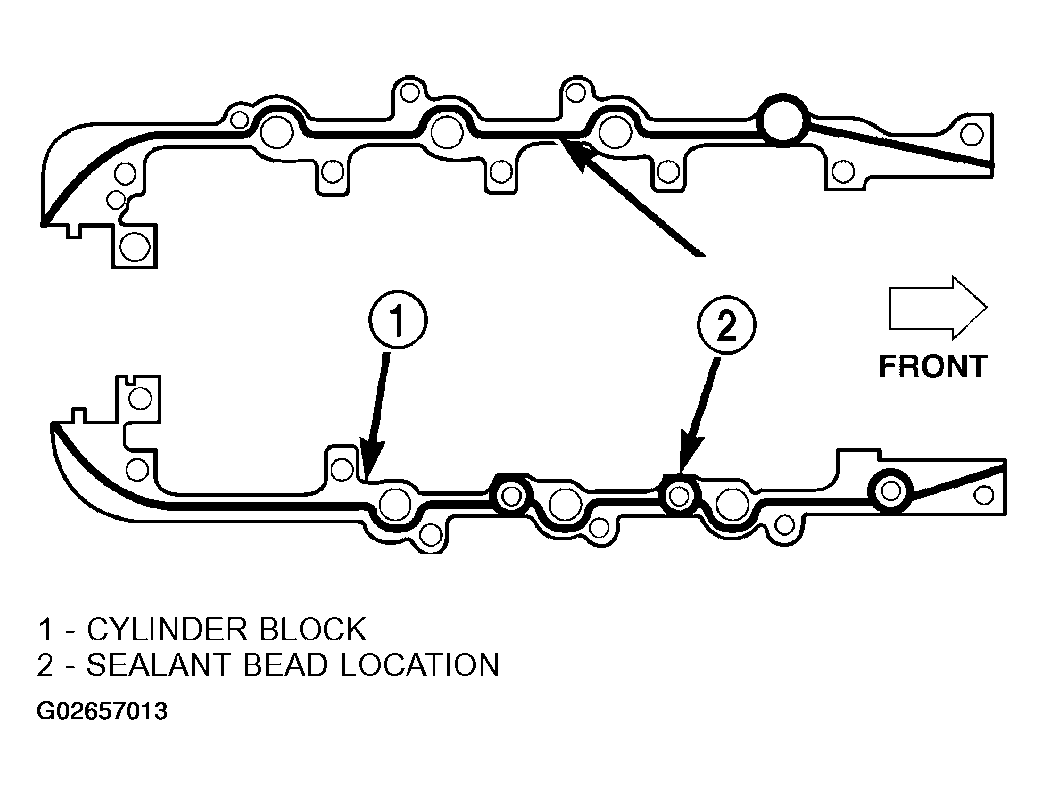

    Fig 3: Identifying Cylinder Block-To-Bedplate Sealant Bead
    G02657013Courtesy of DAIMLERCHRYSLER CORP.
  6. Coat the crankshaft main bearing journals with clean engine oil and position the bedplate onto the cylinder block.
    NOTE: Lubricate the bedplate retaining bolts with clean engine oil prior to installation.
  7. Install the bedplate retaining bolts, making sure to place the stud bolts in the correct location, Torque the bolts in the sequence shown (Fig 4).
    • Tighten bolts A-L  to 54 N.m (40 ft. lbs.)
    • Tighten bolts 1-10  to 2.8 N.m (25 in. lbs.)
    • Turn bolts 1-10  an additional 90°.
    • Tighten bolts A1- A6  to 27 N.m (20 ft. lbs.)

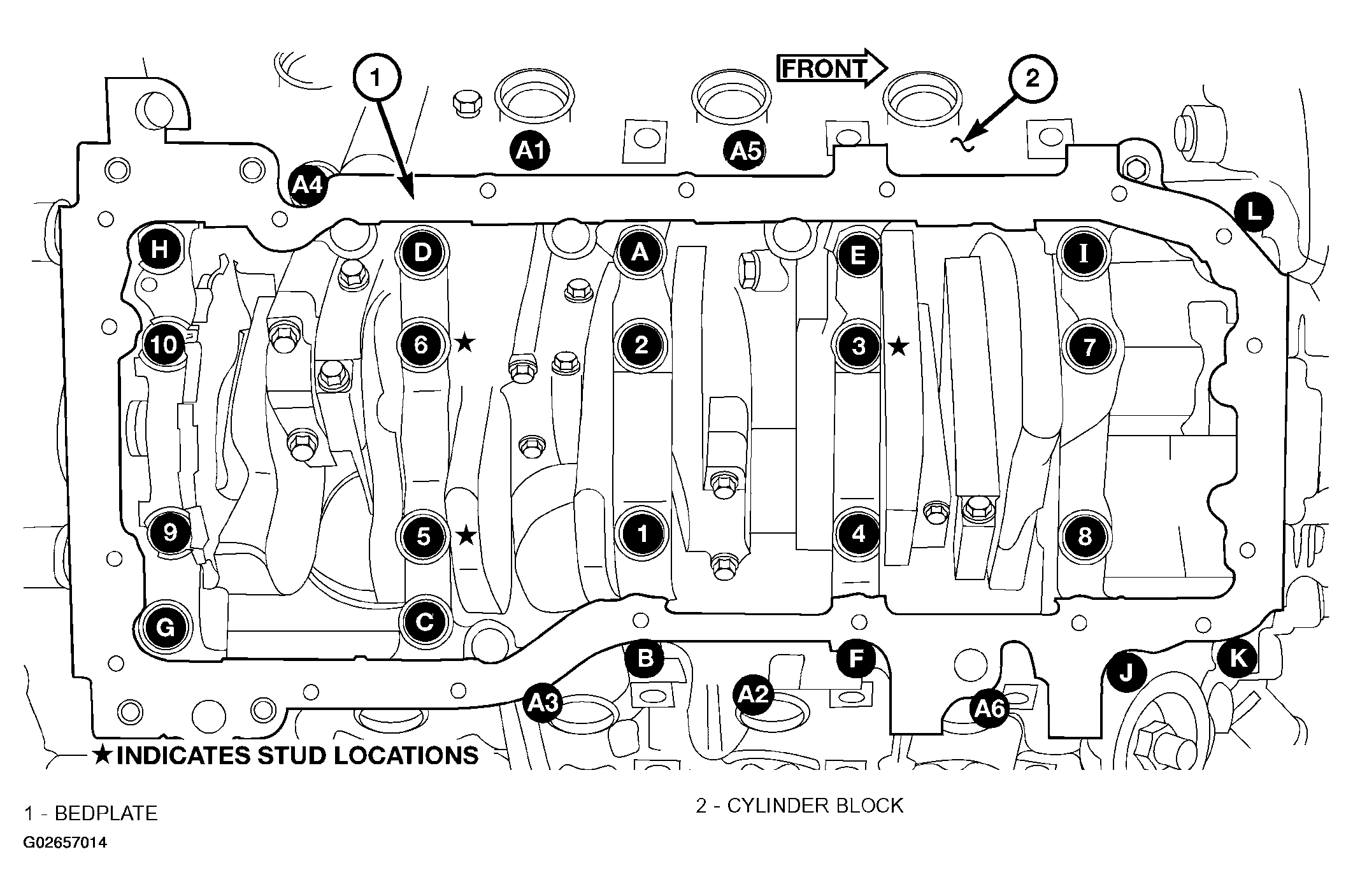

    Fig 4: Identifying Bedplate Tightening Sequence
    G02657014Courtesy of DAIMLERCHRYSLER CORP.
  8. Measure crankshaft end play. (Refer to ENGINE/ENGINE BLOCK/CRANKSHAFT MAIN BEARINGS-STANDARD PROCEDURE ).
  9. Install the connecting rods and measure side clearance. (Refer to ENGINE/ENGINE BLOCK/CONNECTING ROD BEARINGS-STANDARD PROCEDURE ).
  10. Position the oil pan gasket/windage tray, using a new o-ring, install the oil pickup tube. Torque the bolt to 28 N.m (20 ft. lbs.) torque the nuts to 28 N.m (20 ft. lbs.).
  11. Install the oil pan. Torque the retaining bolts to 15 N.m (11 ft. lbs.) in the sequence shown (Fig 5).

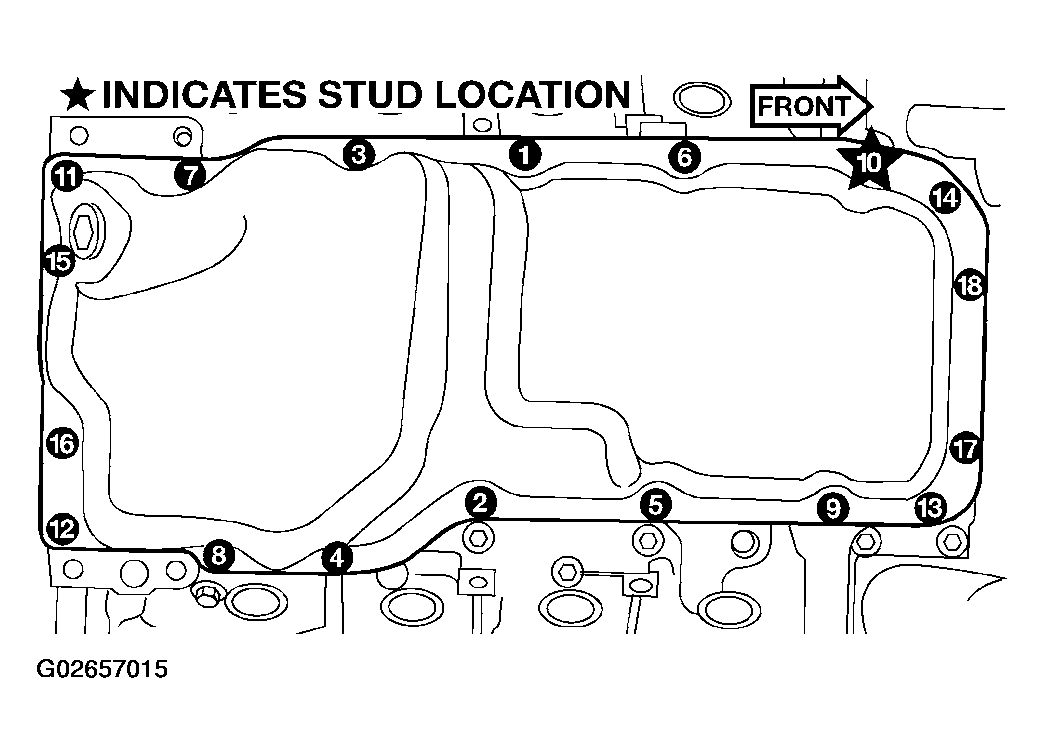

    Fig 5: Identifying Oil Pan Tightening Sequence
    G02657015Courtesy of DAIMLERCHRYSLER CORP.
  12. Install the engine (Refer to ENGINE -INSTALLATION ).
