Crankshaft Oil Seal -Rear: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the crankshaft flange with engine oil.
  2. Position the magnetic seal guide Special Tool 8349-2 (Fig 1) onto the crankshaft rear face. Then position the crankshaft rear oil seal onto the guide.

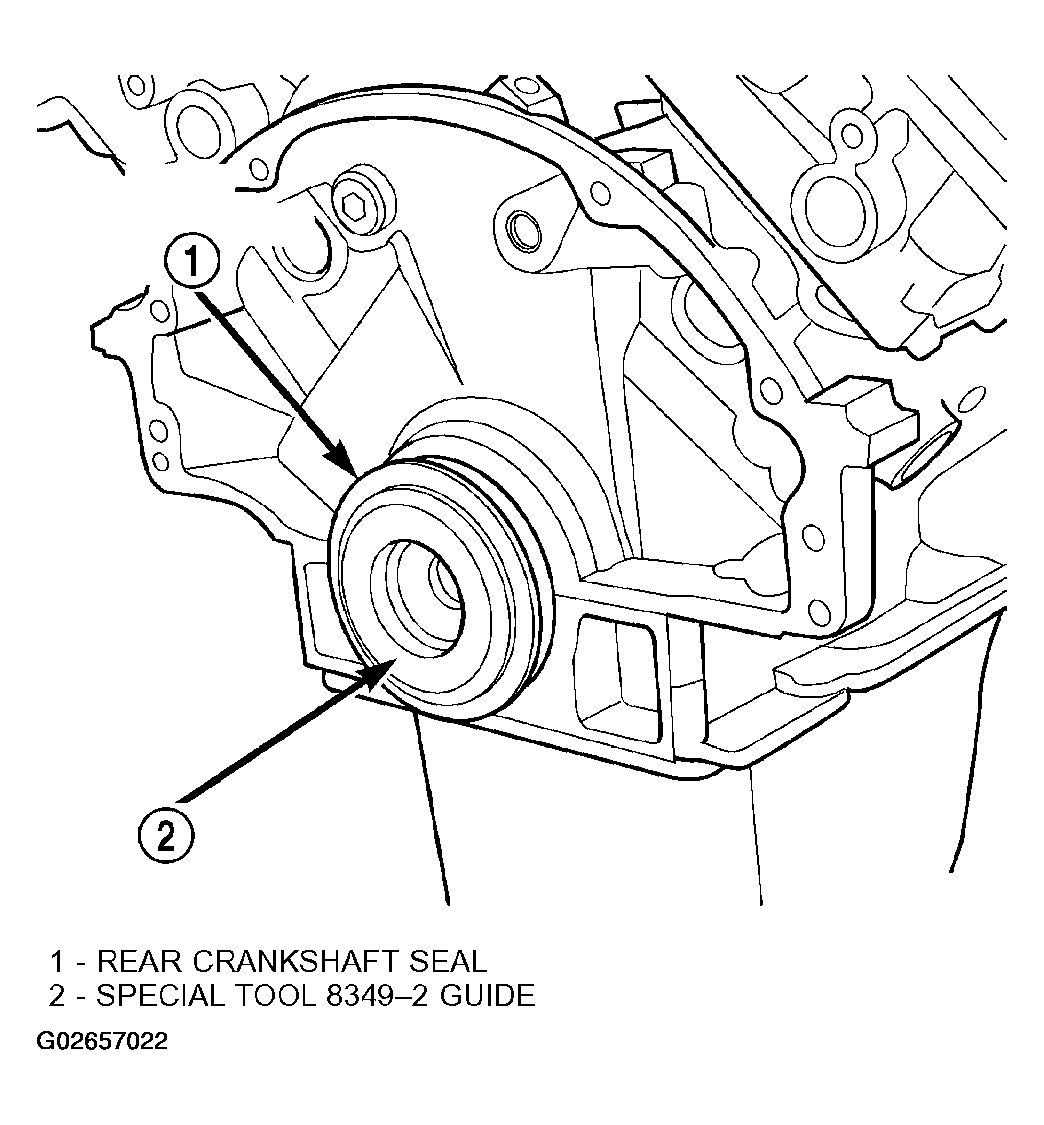

    Fig 1: Installing Crankshaft Rear Oil Seal Guided By Special Tool 8349-2
    G02657022Courtesy of DAIMLERCHRYSLER CORP.
  3. Using Special Tools 8349 Crankshaft Rear Oil Seal Installer and C-4171 Driver Handle (Fig 2), with a hammer, tap the seal into place. Continue to tap on the driver handle until the seal installer seats against the cylinder block crankshaft bore.

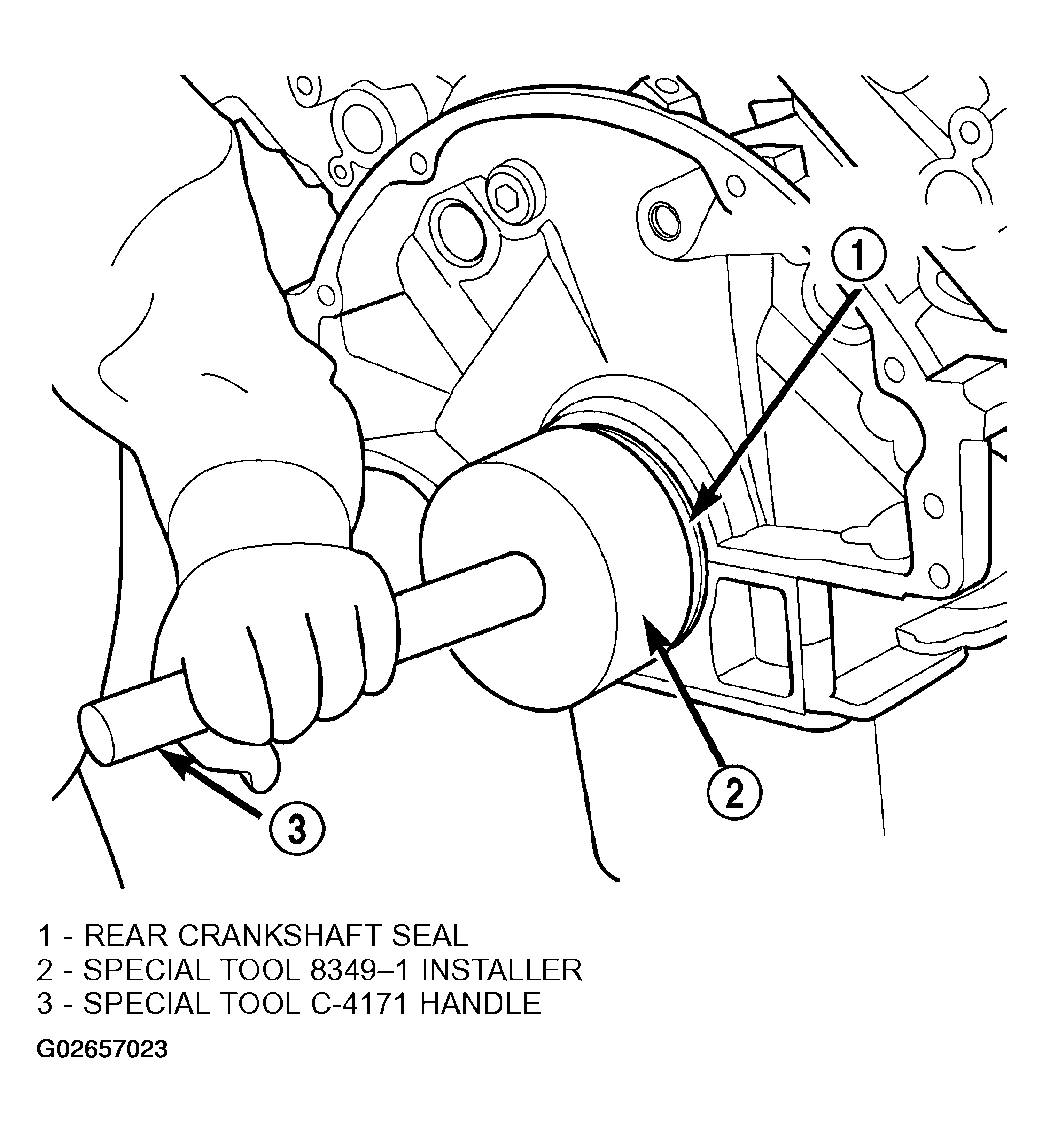

    Fig 2: Installing Crankshaft Rear Oil Seal
    G02657023Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the flexplate.
  5. Install the transmission.
