Vibration Damper: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative cable from the battery.
  2. Remove fan, and fan drive .
  3. Remove the accessory drive belt (Refer to DRIVE BELTS ).
  4. Remove the vibration damper pulley.
  5. Remove vibration damper bolt and washer from end of crankshaft.
  6. Install bar and screw from Puller Tool Set C-3688. Install two bolts with washers through the puller tool and into the vibration damper (Fig 1 ).

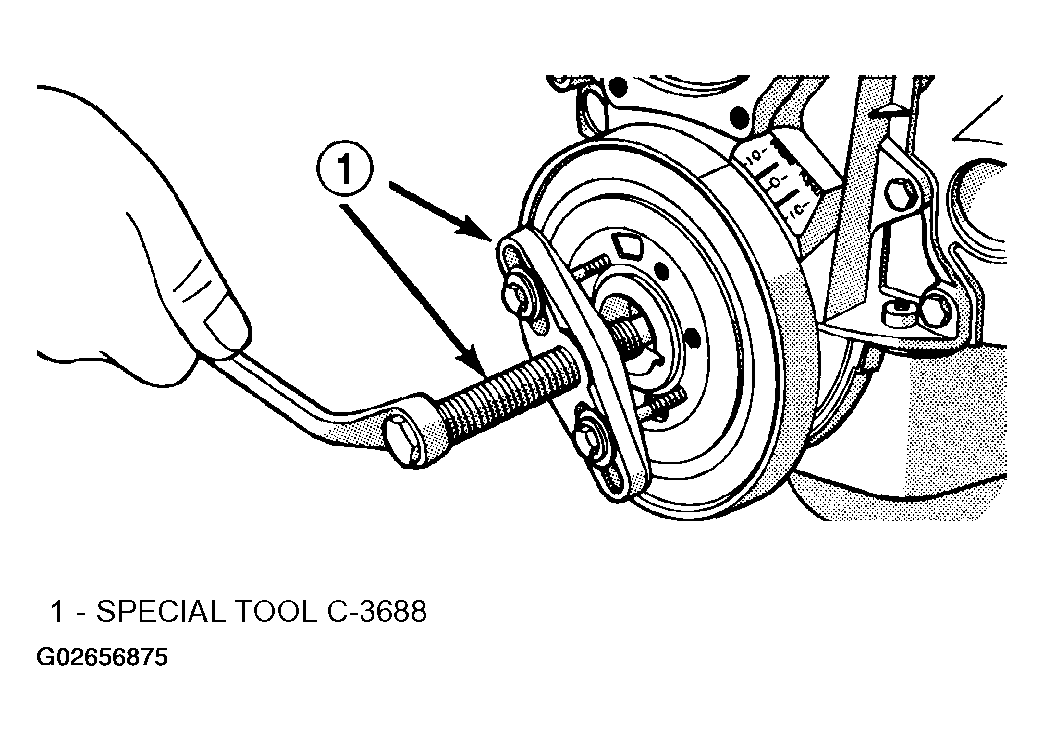

    Fig 1: Removing Vibration Damper
    G02656875Courtesy of DAIMLERCHRYSLER CORP.
  7. Pull vibration damper off of the crankshaft.
