Rear Mount: Removal: 4WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative cable from the battery.
Raise the vehicle on a hoist.
Support the transmission with a transmission jack.

NOTE: AUTOMATIC TRANSMISSION

Remove stud nuts holding the insulator to the crossmember (Fig 1 ).
Raise rear of transmission SLIGHTLY.
Remove bolts holding the insulator to the insulator bracket (Fig 1 ). Remove the insulator.

Fig 1: Removing Rear Insulator Automatic Transmission-4WD

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: MANUAL TRANSMISSION

Remove stud nuts holding the insulator to the crossmember (Fig 2 ).
Raise rear of transmission SLIGHTLY.
Remove bolts holding the insulator to the transmission (Fig 2 ). Remove the insulator.

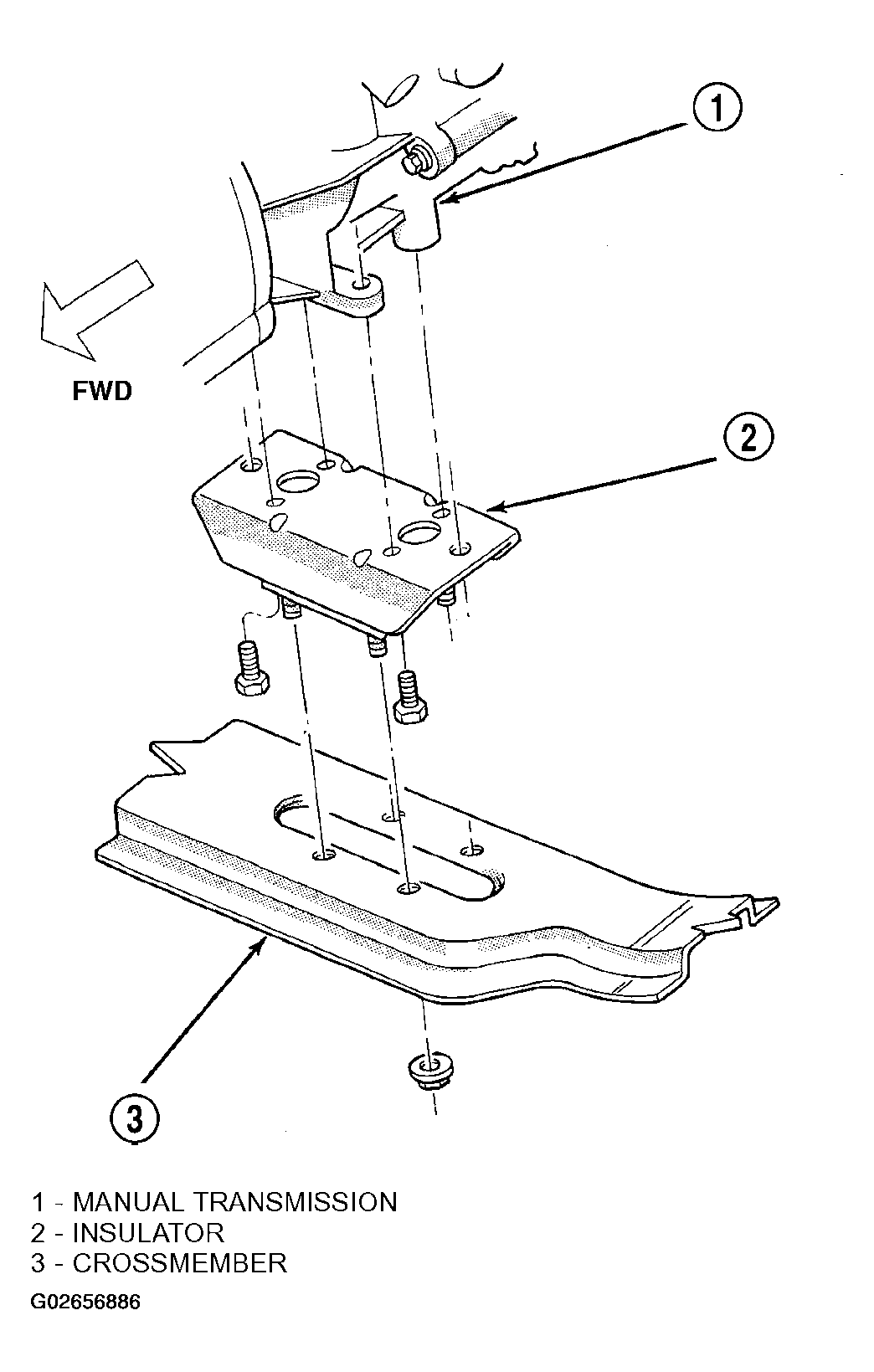

Fig 2: Removing Rear Insulator Manual Transmission-4WD

Courtesy of DAIMLERCHRYSLER CORP.
