Rear Mount: Removal: 2WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative cable from the battery.
Raise the vehicle on a hoist.
Support the transmission with a jack.

NOTE: AUTOMATIC TRANSMISSION

Remove engine support bracket-insulator thru-bolt (Fig 1 ).
Raise the transmission and engine slightly.
Remove stud nuts attaching insulator to cross-member (Fig 1 ). Remove insulator.

Fig 1: Removing Rear Insulator Automatic Transmission-2WD

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: MANUAL TRANSMISSION

Remove the stud nuts attaching the insulator to the transmission extension (Fig 2 ).
Raise the transmission and engine slightly.
Remove stud nuts attaching insulator to cross-member (Fig 2 ). Remove insulator.

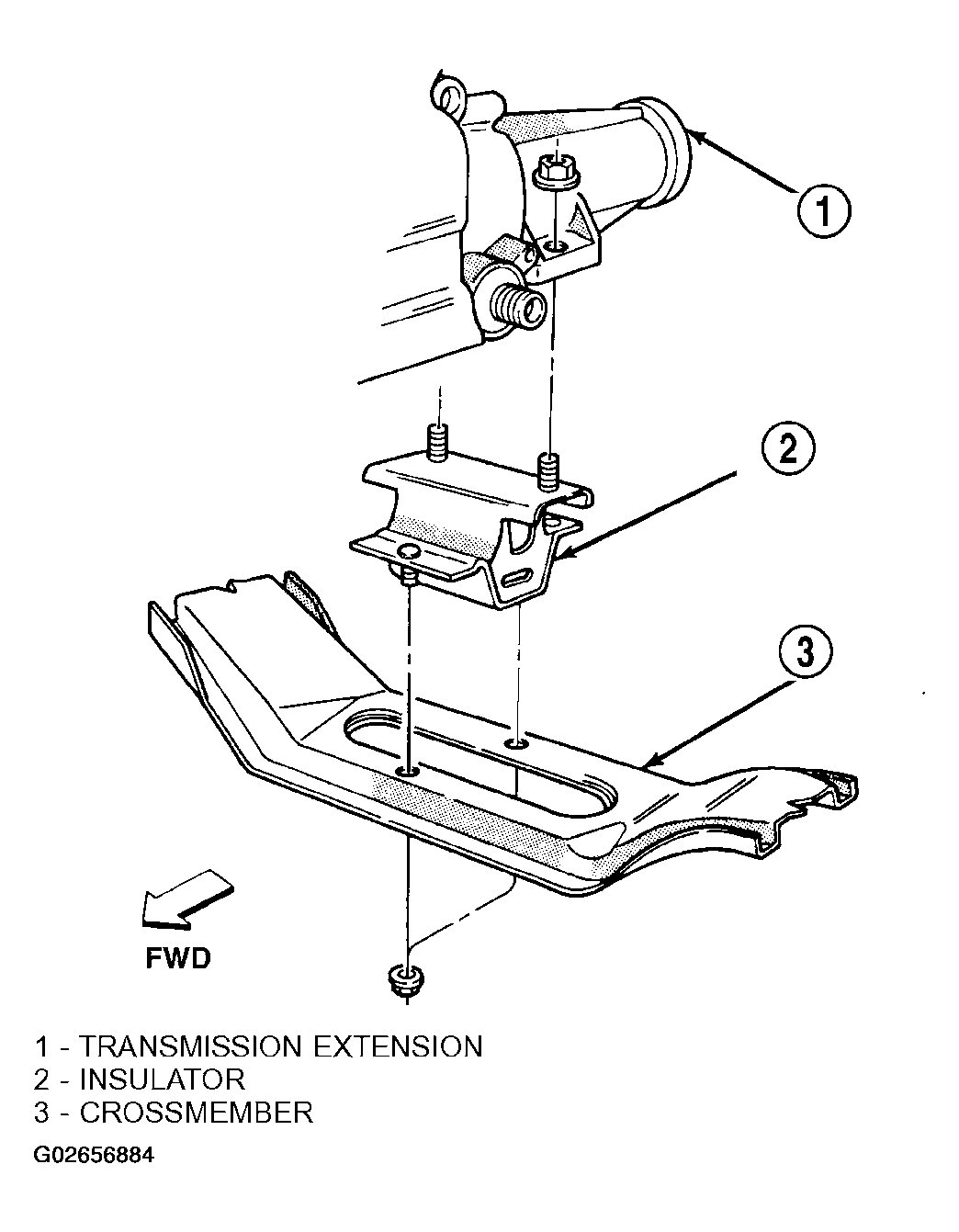

Fig 2: Removing Rear Insulator Manual Transmission-2WD

Courtesy of DAIMLERCHRYSLER CORP.
