Rear Mount: Installation: 4WD
WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
AUTOMATIC TRANSMISSION

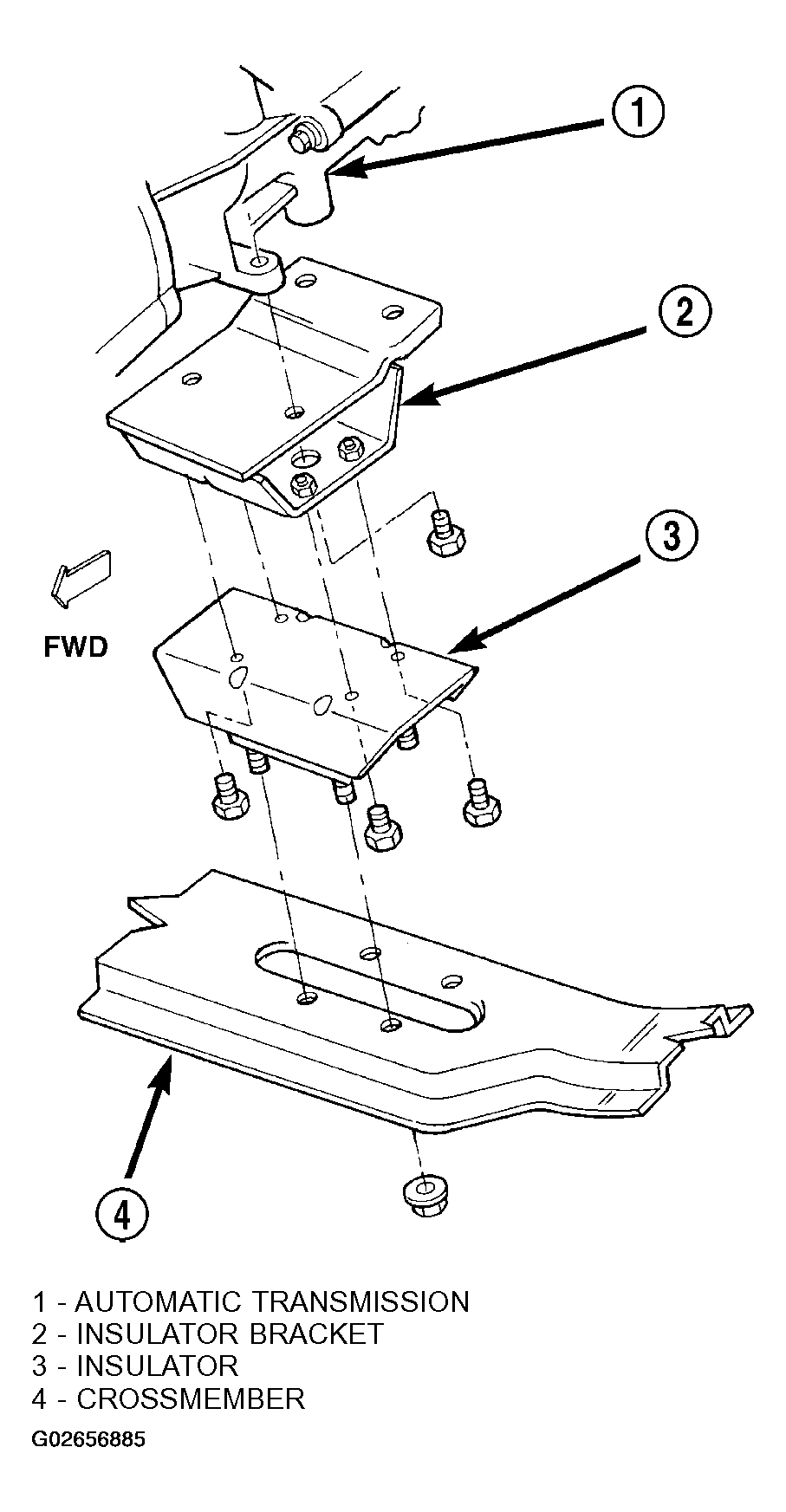

- If the insulator bracket was removed, install the bracket to the transmission (Figure ). Tighten the bolts to 68 N-m (50 ft. lbs.) torque.
- Install the bolts holding insulator to insulator bracket. Tighten the bolts to 68 N-m (50 ft. lbs.) torque.
- Lower rear of transmission while aligning the insulator studs into the mounting support bracket. Install stud nuts and tighten to 68 N-m (50 ft. lbs.) torque.
NOTE:
MANUAL TRANSMISSION
- Install the bolts holding insulator to insulator bracket. Tighten the bolts to 68 N-m (50 ft. lbs.) torque.
- Lower rear of transmission while aligning the insulator studs into the mounting support bracket. Install stud nuts and tighten to 68 N-m (50 ft. lbs.) torque.
- Remove the transmission jack.
- Lower the vehicle.
- Connect the negative cable to the battery.
