Rear Mount: Installation: 2WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

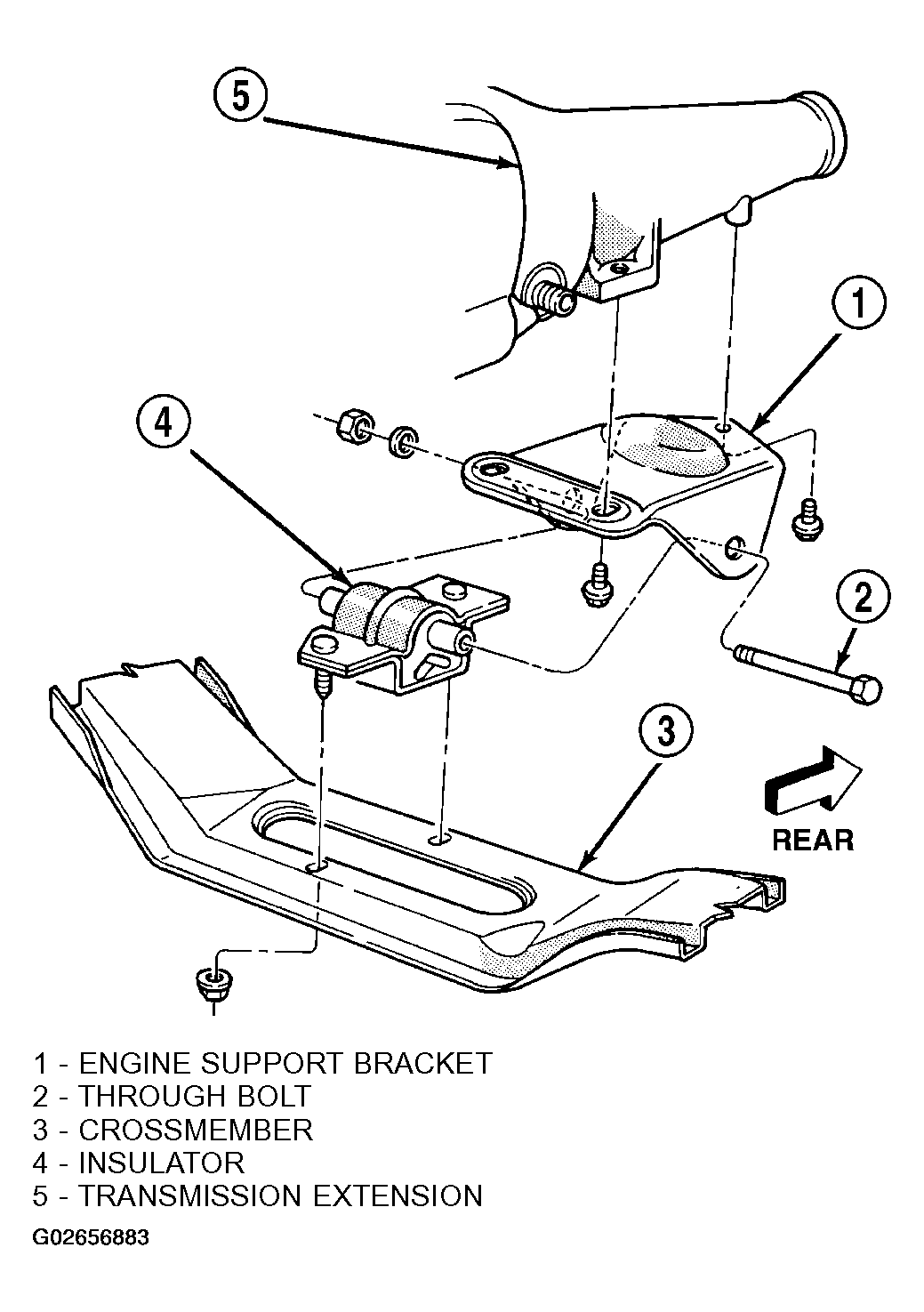

  1. If the engine support bracket (Automatic Transmissions) was removed, position the bracket to the transmission extension (Figure ). Tighten the bolts to 68 N-m (50 ft. lbs.) torque.
    NOTE: AUTOMATIC TRANSMISSION
    • Install the insulator onto crossmember. Tighten the stud nuts to 41 N-m (30 ft. lbs) torque.
    • Lower the transmission and engine while aligning the engine support bracket to the insulator.
    • Install thru-bolt in bracket and insulator. Tighten thru-bolt nut to 68 N-m (50 ft. lbs.) torque.
    NOTE: MANUAL TRANSMISSION
    • Install the insulator onto crossmember. Tighten the stud nuts to 41 N-m (30 ft. lbs) torque.
    • Lower the transmission and engine while aligning the insulator studs into the transmission extension.
    • Install the stud nuts. Tighten the stud nuts to 41 N-m (30 ft. lbs) torque.
  2. Remove transmission jack.
  3. Lower the vehicle.
  4. Connect the negative cable to the battery.
