Oil Level Indicator (Dipstick)

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The engine oil level indicator is located at the right front of the engine, left of the generator (Fig 1 ).

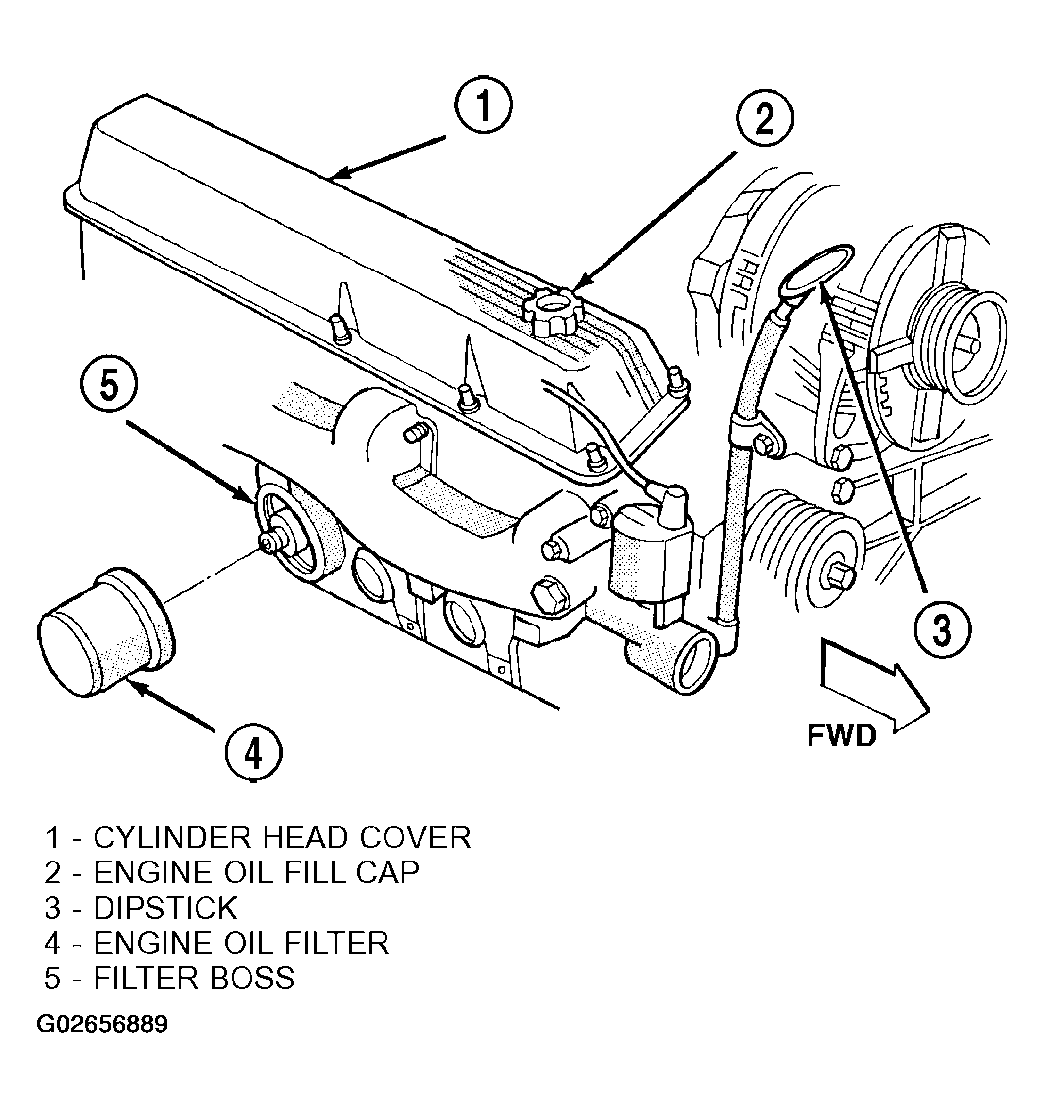

Fig 1: Identifying Oil Level Indicator Location
G02656889Courtesy of DAIMLERCHRYSLER CORP.
