Section 52 (Engine - 3.9L): Lubrication: Description

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

A gear-type positive displacement pump (Fig 1 ) is mounted at the underside of the rear main bearing cap. The pump uses a pick-up tube and screen assembly to gather engine oil from the oil pan.

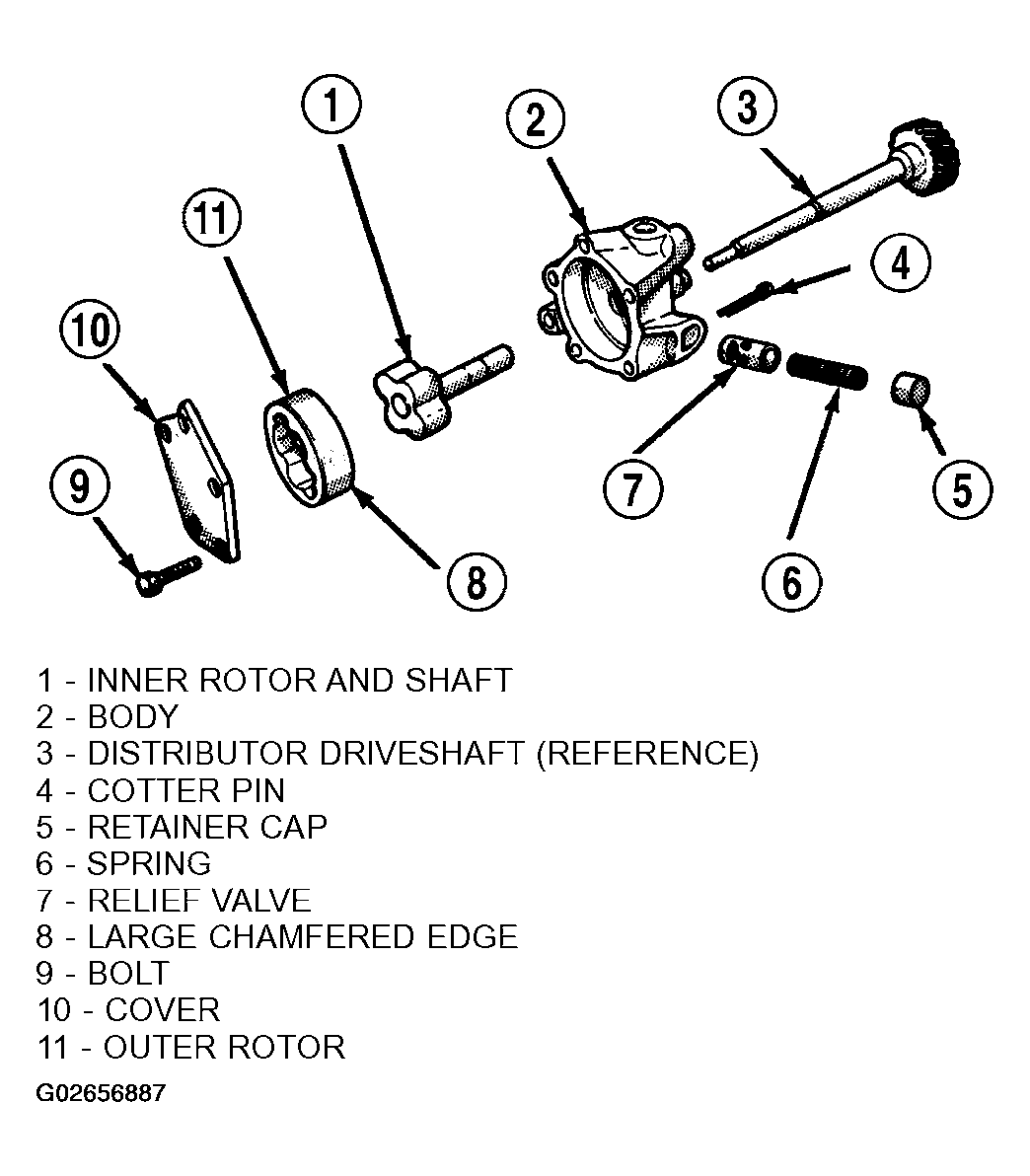

Fig 1: Exploded View Of Positive Displacement Oil Pump Assembly
G02656887Courtesy of DAIMLERCHRYSLER CORP.
