Refacing Valves And Valve Seats

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The intake and exhaust valves have a 43-1/4° to 43-3/4° face angle and a 44-1/4° to 44-3/4° seat angle (Fig 1 ).

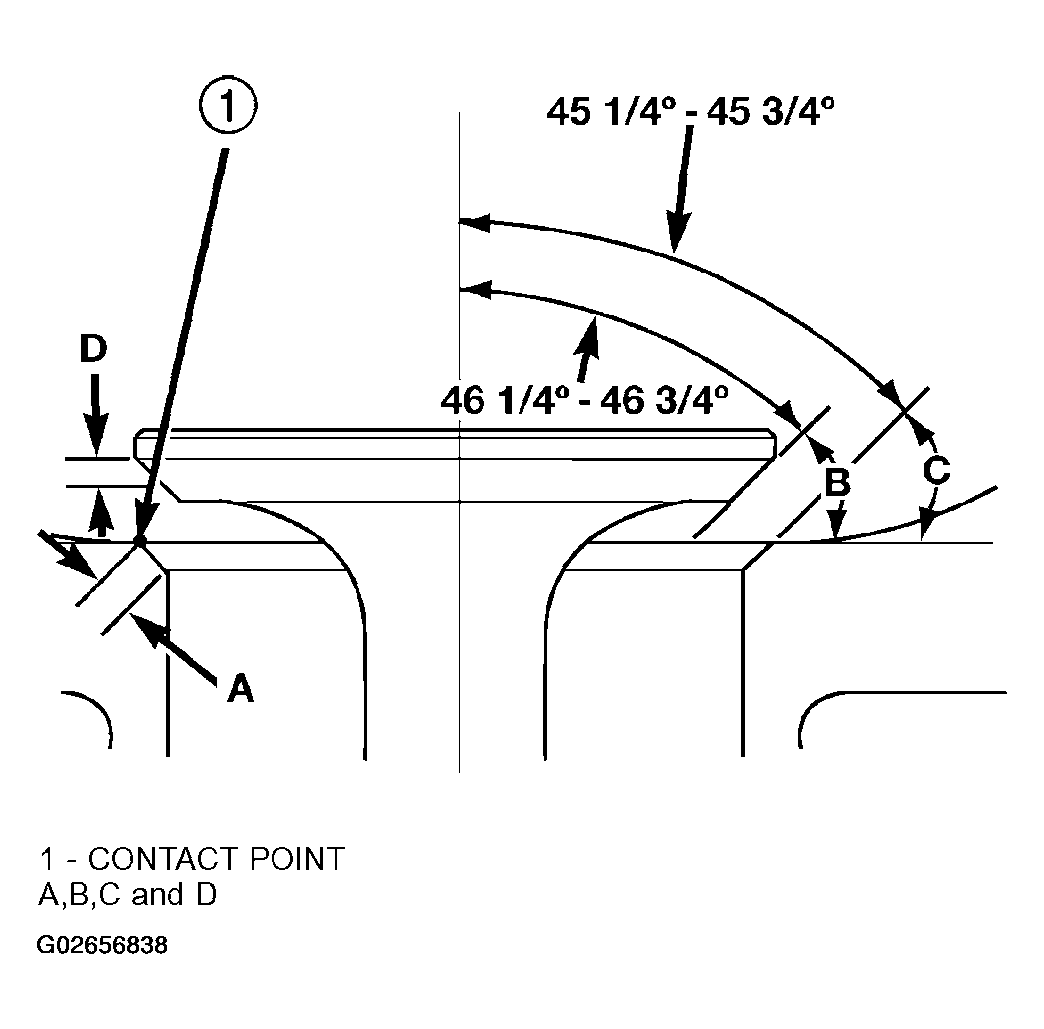

Fig 1: Locating Valve Face And Seat Angles
G02656838Courtesy of DAIMLERCHRYSLER CORP.

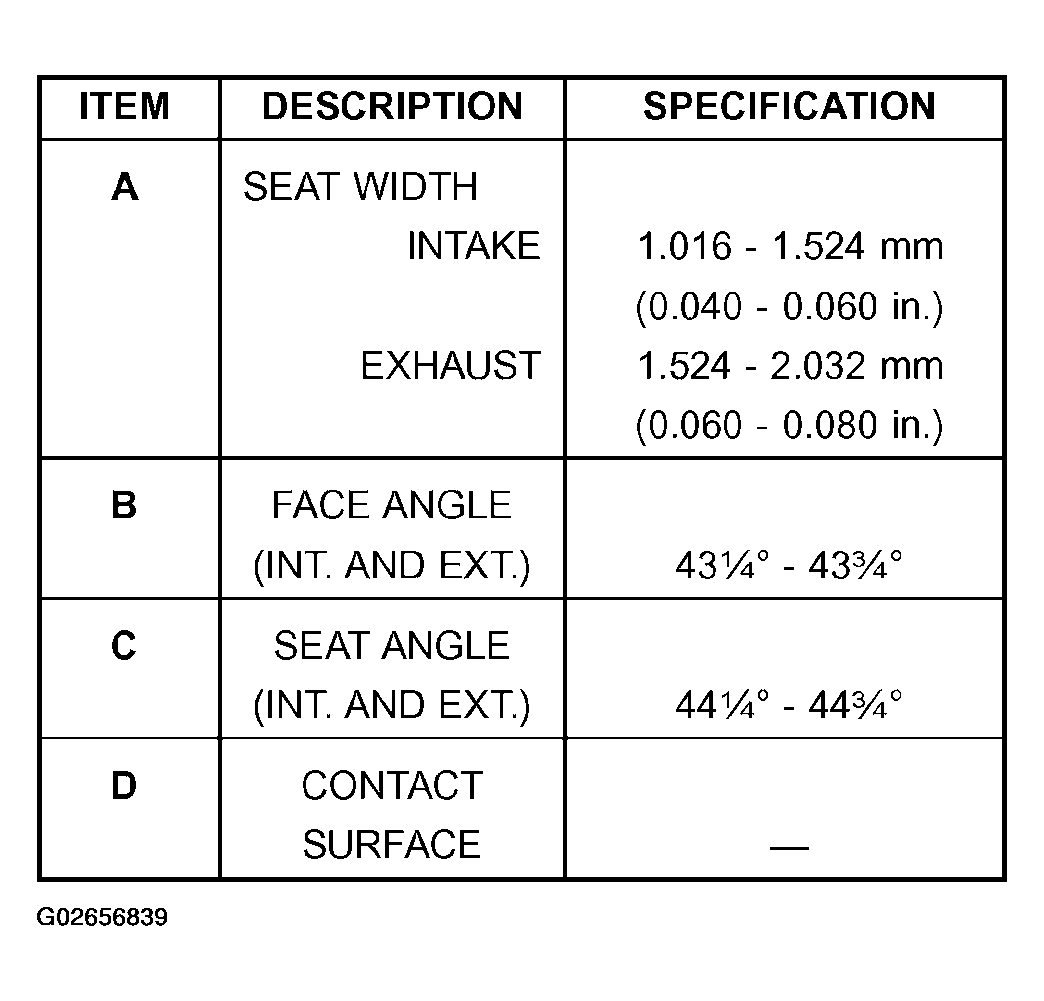

Fig 2: Valve Face And Valve Seat Angle Chart
G02656839Courtesy of DAIMLERCHRYSLER CORP.
