Front Mount: Removal: 4WD

On 4-WD vehicles the engine front support brackets attach directly to engine block and the axle housing. The brackets provide a solid interconnection for these units (Fig 1 ) (Fig 2 ). Engine and front axle must be supported during any service procedures involving the front support assemblies.

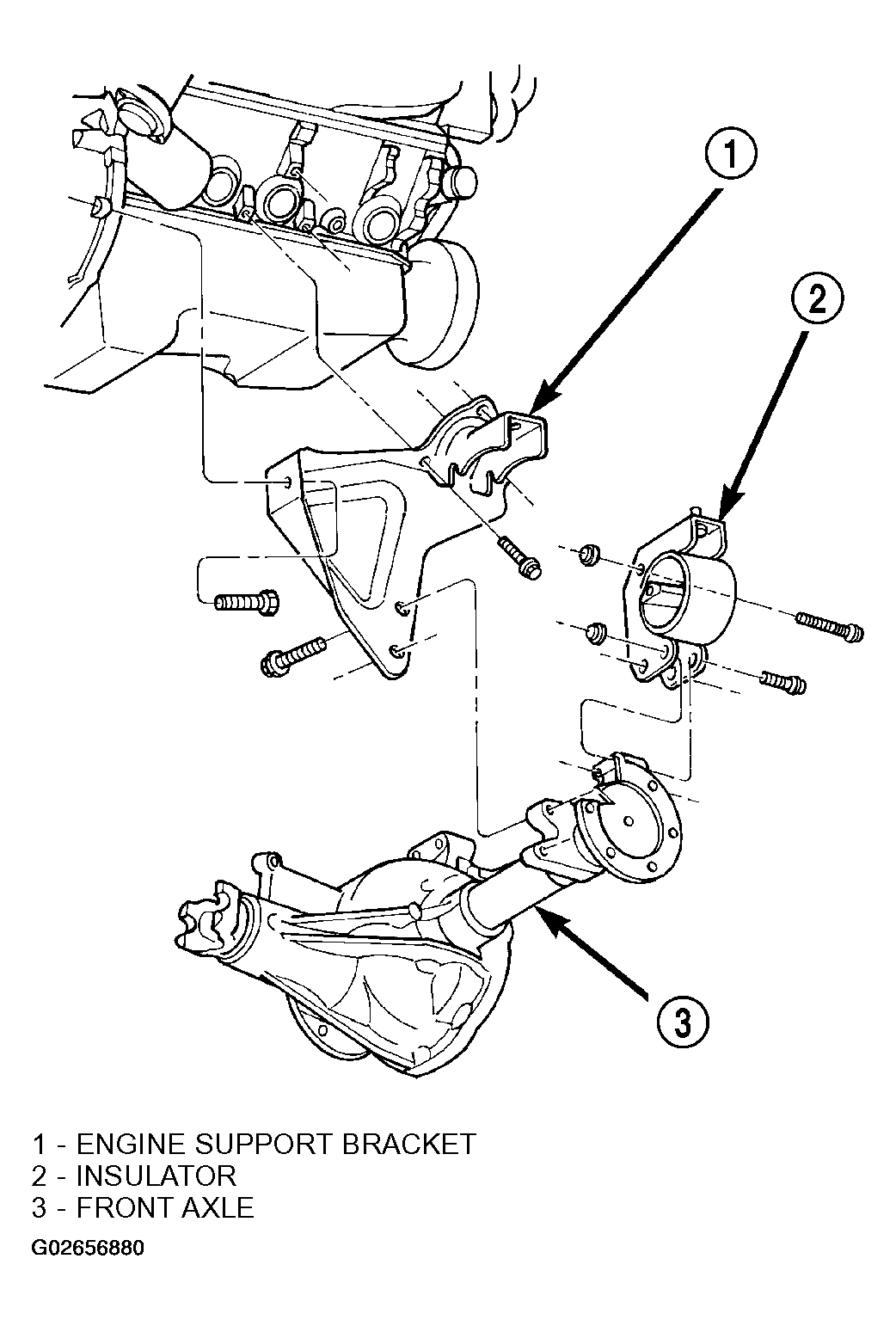

Fig 1: Removing Right Engine Mount Insulator And Support Bracket-4WD Vehicles

Courtesy of DAIMLERCHRYSLER CORP.

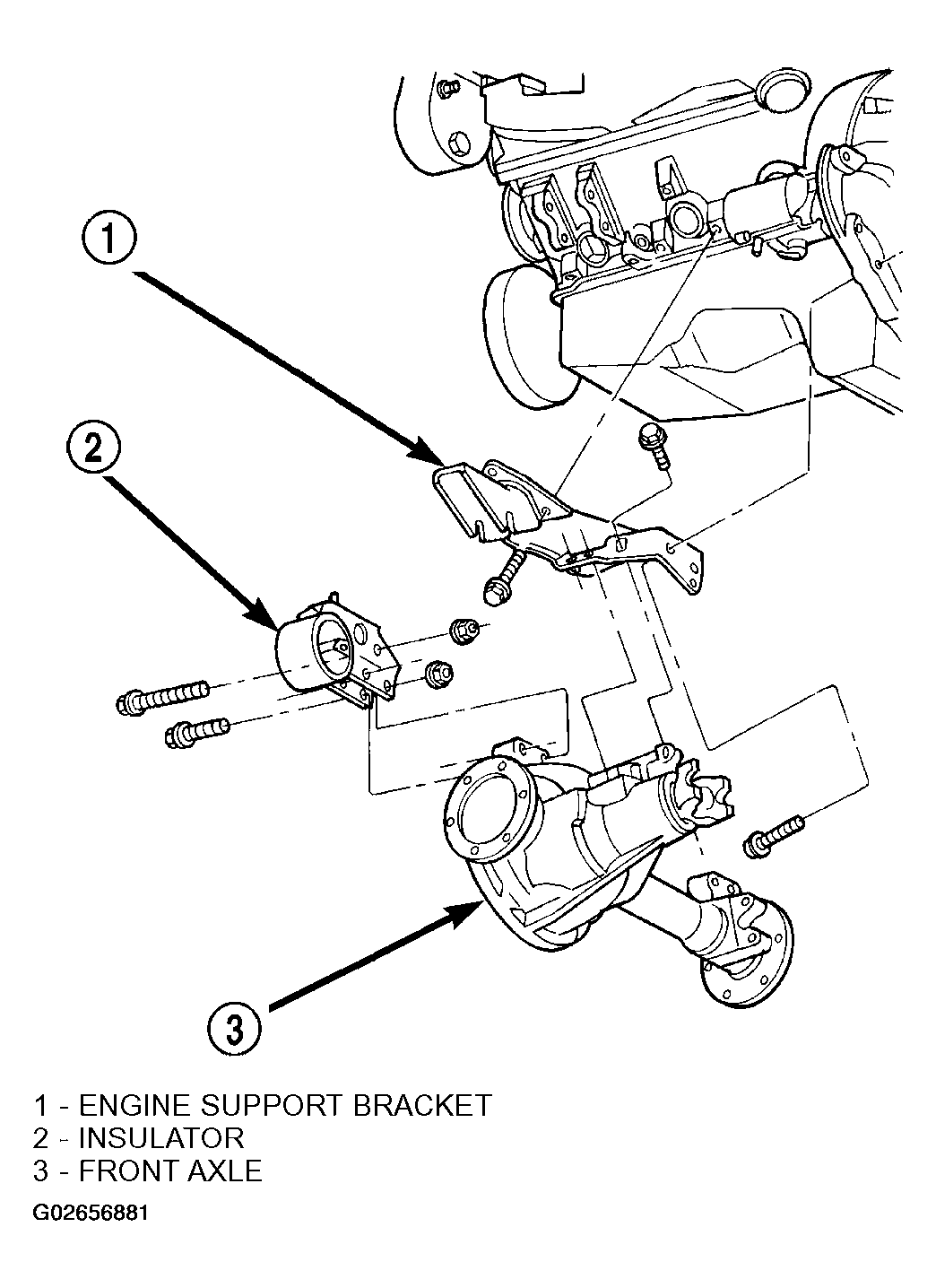

Fig 2: Installing Left Engine Mount Insulator And Support Bracket-4WD Vehicles

Courtesy of DAIMLERCHRYSLER CORP.

1. Disconnect the negative cable from the battery.
2. Raise vehicle on hoist.
3. Install engine lifting (support) fixture.
4. Remove front axle. (Refer to FRONT AXLE-C205F ).
5. Left mount insulator only.  Remove starter wires and starter motor assembly.

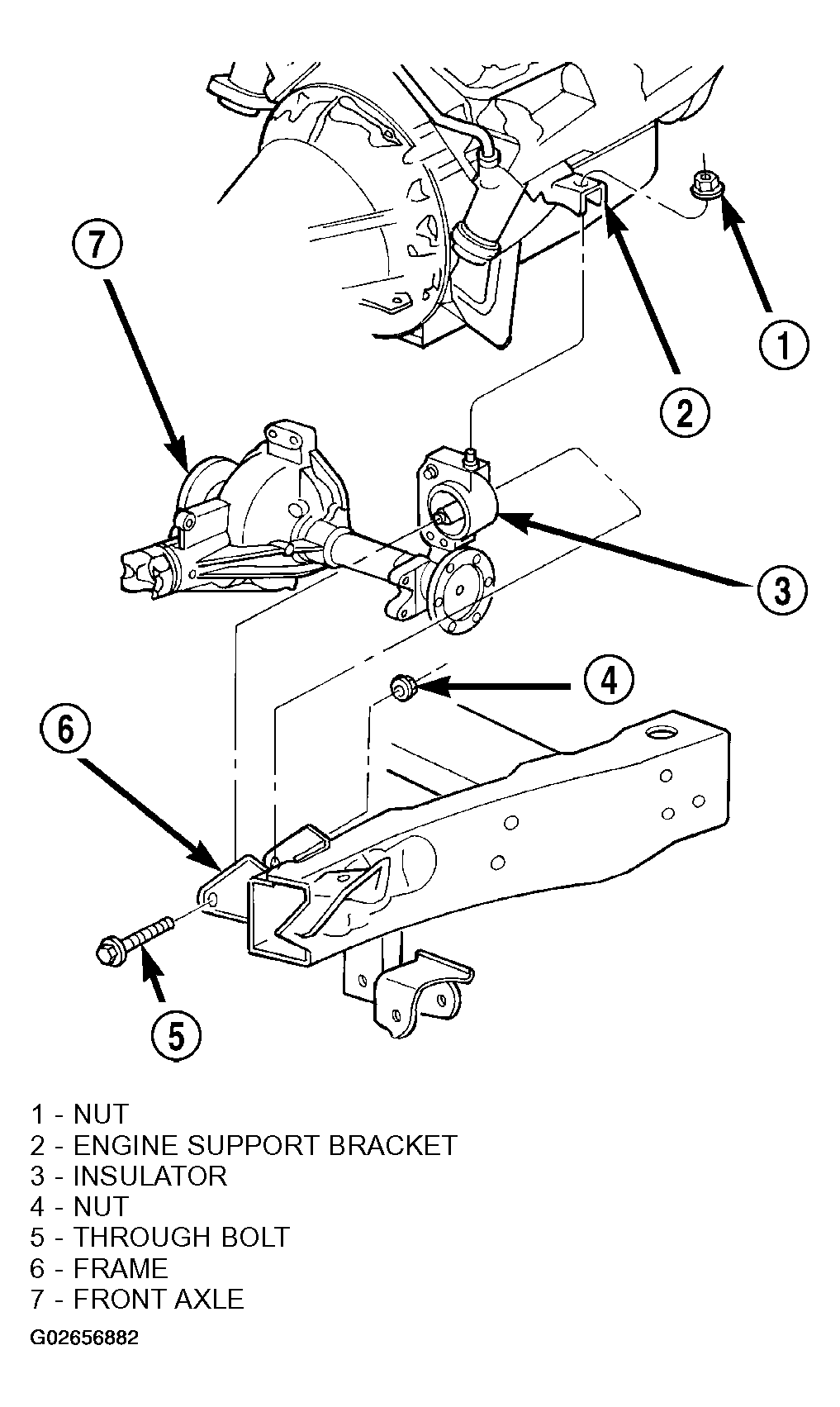

6. Remove insulator to frame through bolt (Figure ).
7. Raise engine slightly.
8. Remove upper insulator to support bracket stud nut and insulator to support through bolt.
9. Remove engine mount insulator. (Fig 1 ) (Fig 2 ).
10. If engine support bracket is to be removed/replaced, remove support bracket to transmission bell housing bolt(s) and three (3) support bracket to engine block bolts. Remove support bracket (Fig 1 ) (Fig 2 ).
