Front Mount: Removal: 2WD

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative cable from the battery.
Raise hood and position fan to assure clearance for radiator top tank and hose.
CAUTION: DO NOT lift the engine by the intake manifold.
Install engine lifting fixture.
Raise vehicle on hoist.
Remove the insulator through bolt (Fig 1 ) (Fig 2 ) (Fig 3 ).

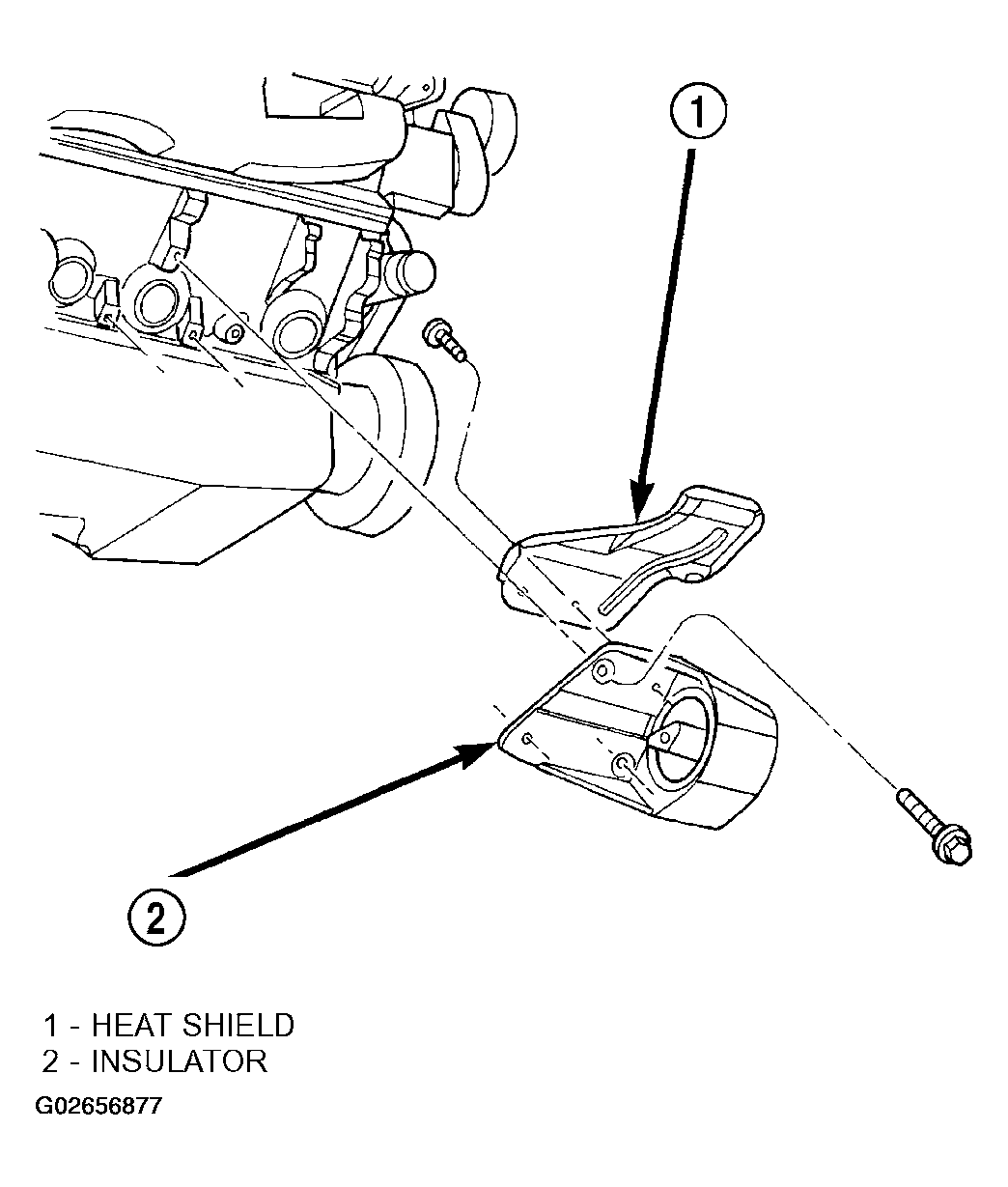

Fig 1: Removing Engine Right Front Insulator Mount-2WD Vehicles
Courtesy of DAIMLERCHRYSLER CORP.

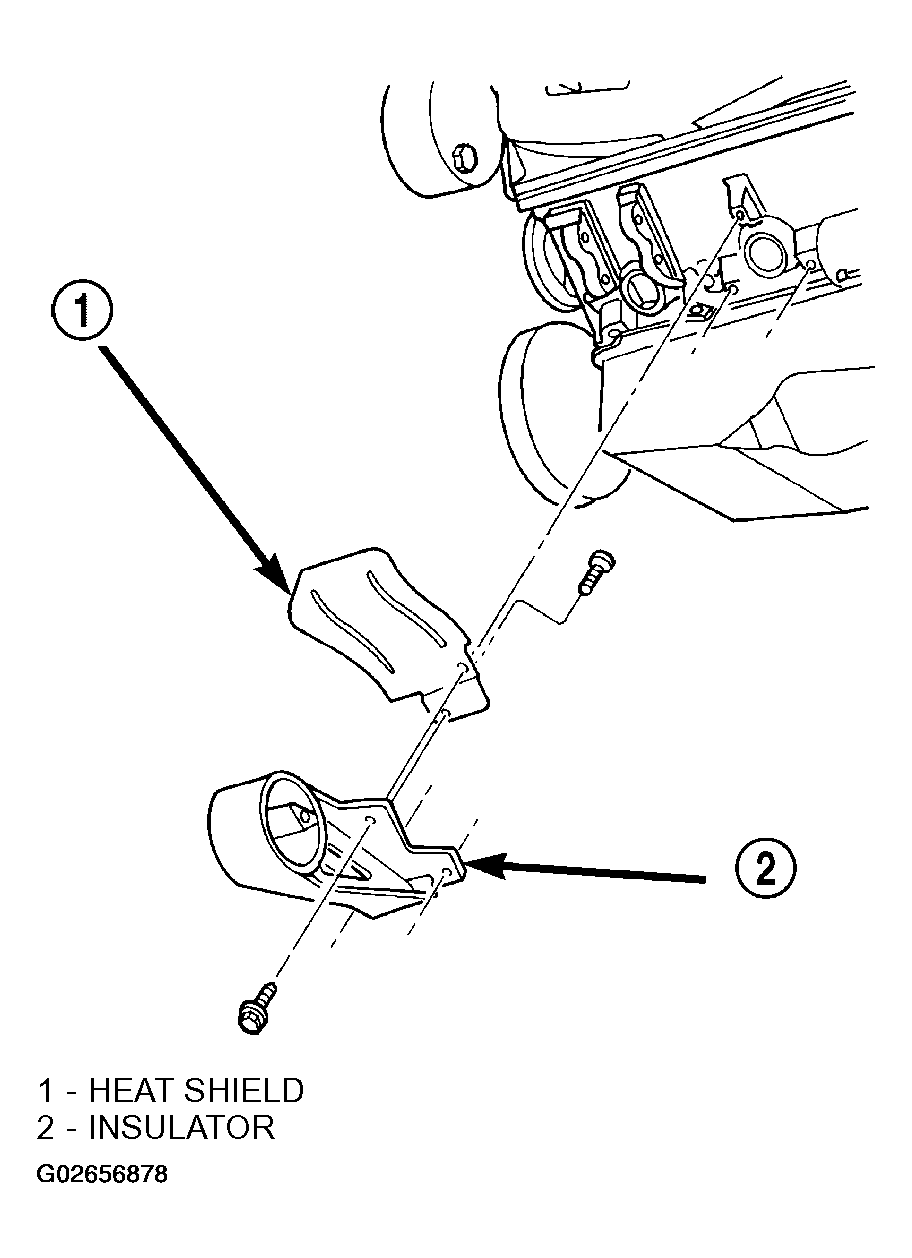

Fig 2: Removing Engine Left Front Insulator Mount-2WD Vehicles
Courtesy of DAIMLERCHRYSLER CORP.

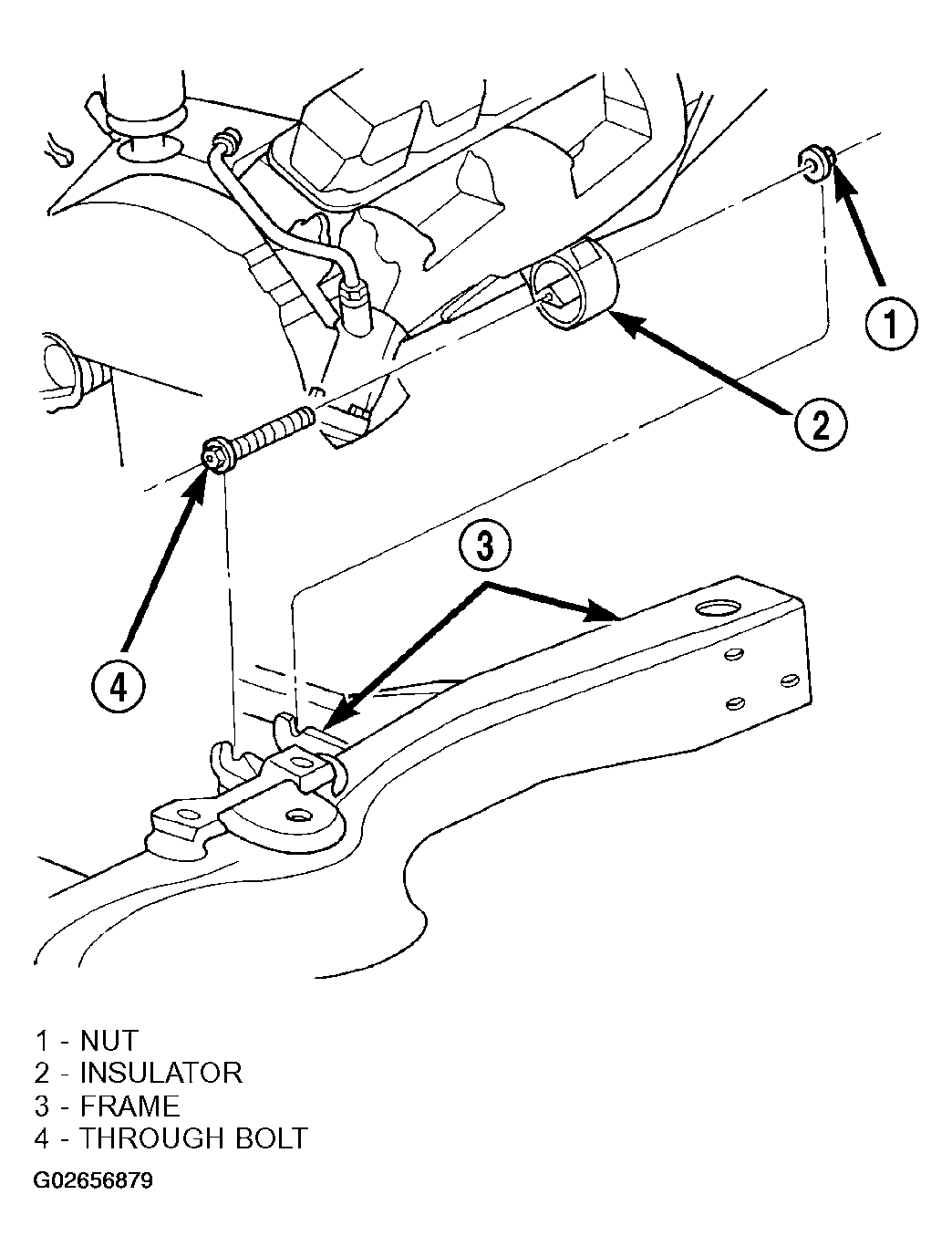

Fig 3: Removing Engine Mount Insulator From Frame
Courtesy of DAIMLERCHRYSLER CORP.
Raise engine with lifting fixture SLIGHTLY. Remove insulator retaining bolts and remove the insulator assembly.
Remove insulator heat shield and transfer to new insulator.
