Standard Procedure-Engine Gasket Surface Preparation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

To ensure engine gasket sealing, proper surface preparation must be performed.

Never use the following to clean gasket surfaces:

Metal scraper
Abrasive pad or paper to clean cylinder block and head
High speed power tool with an abrasive pad or a wire brush (Fig 1 )

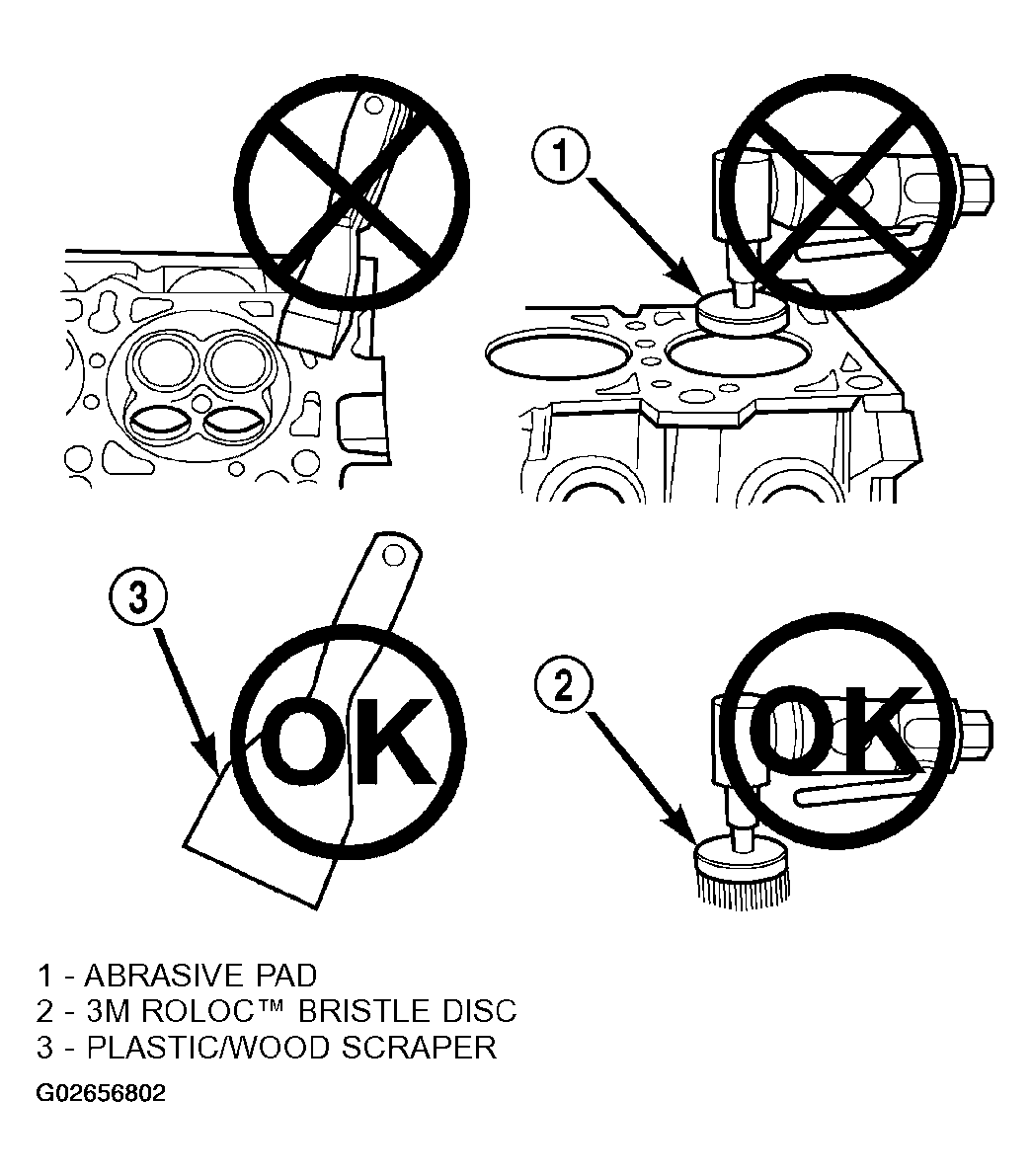

Fig 1: Identifying Proper Tool Usage For Surface Preparation
Courtesy of DAIMLERCHRYSLER CORP.

Only use the following for cleaning gasket surfaces:

Solvent or a commercially available gasket remover
Plastic or wood scraper (Fig 1 )
Drill motor with 3M Roloc(tm) Bristle Disc (white or yellow) (Fig 1 )

CAUTION: Excessive pressure or high RPM (beyond the recommended speed), can damage the sealing surfaces. The mild (white, 120 grit) bristle disc is recommended. If necessary, the medium (yellow, 80 grit) bristle disc may be used on cast iron surfaces with care.
