WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

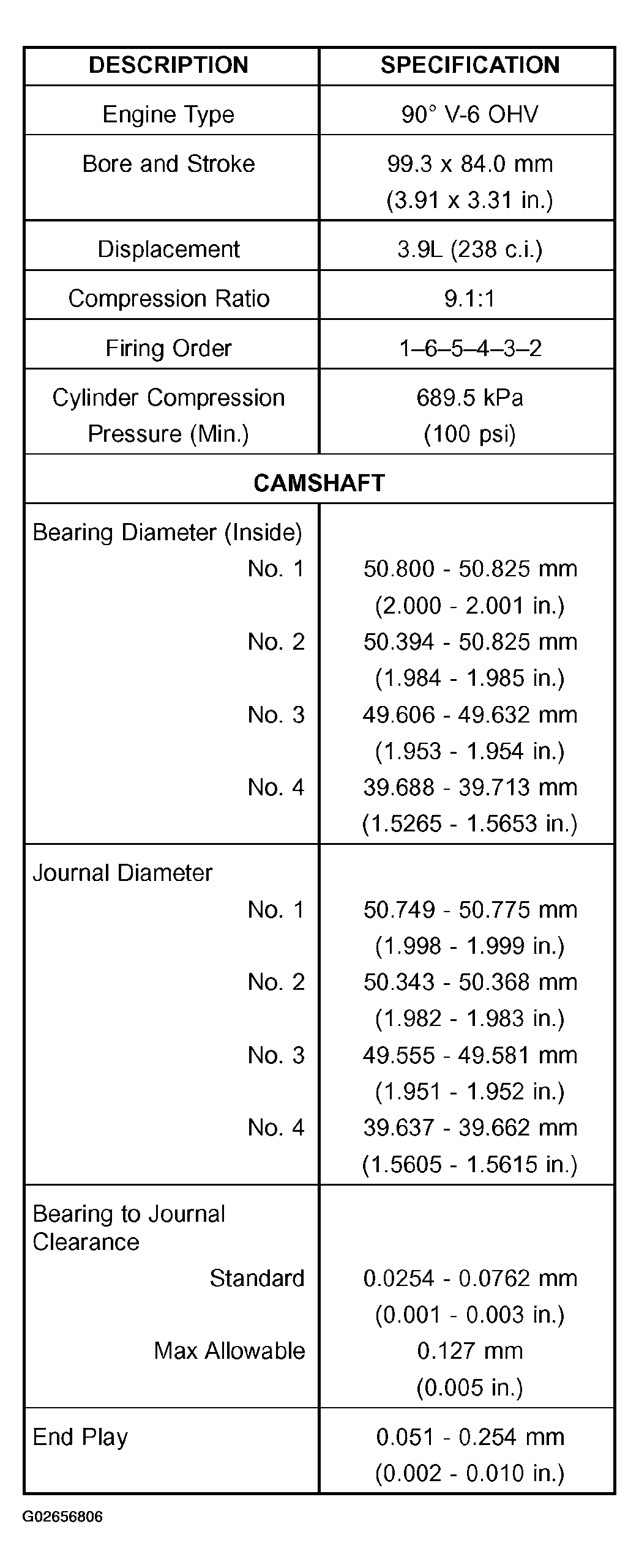

Fig 1: Engine General Description Chart (1 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

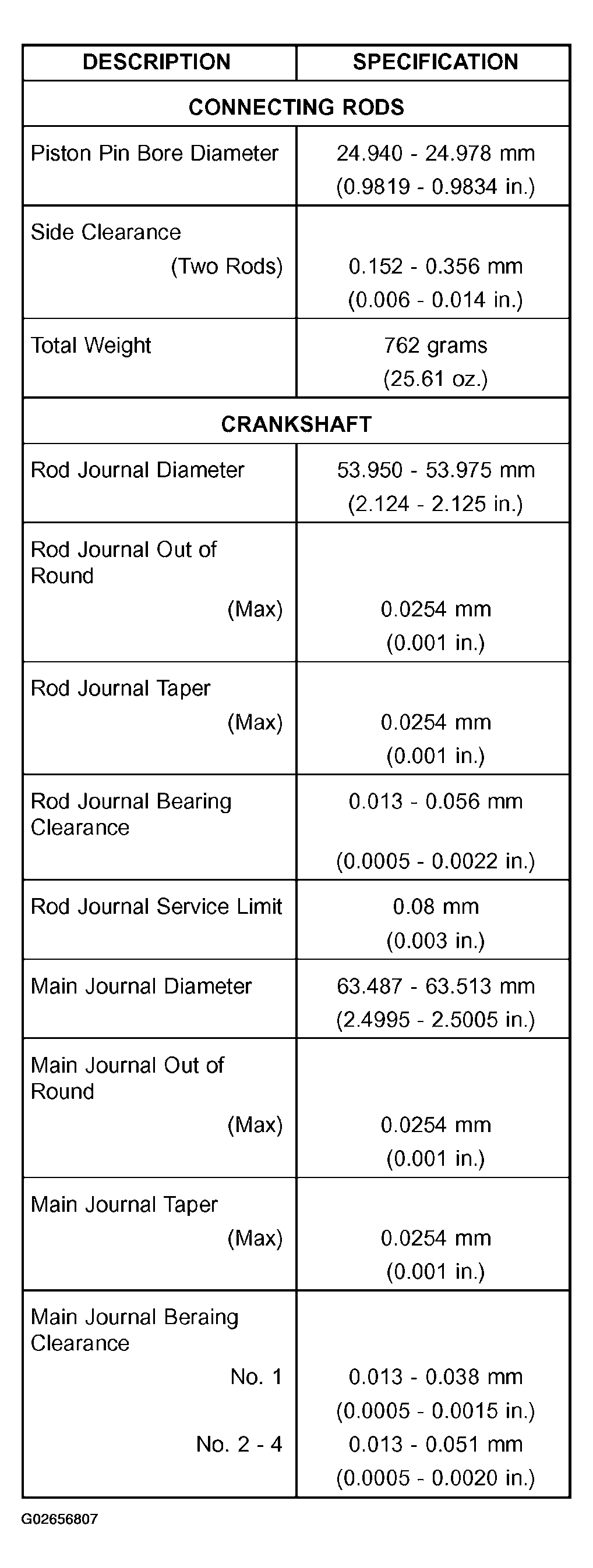

Fig 2: Engine General Description Chart (2 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

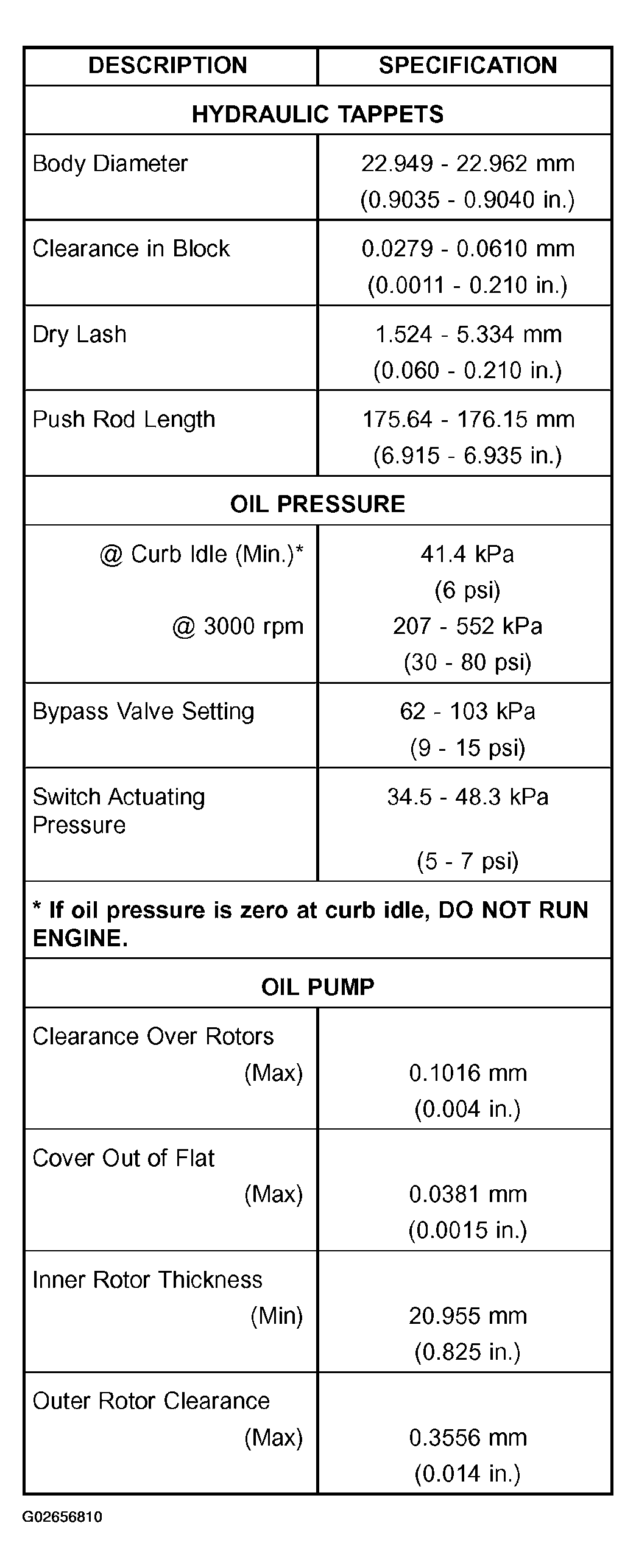

Fig 3: Engine General Description Chart (3 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

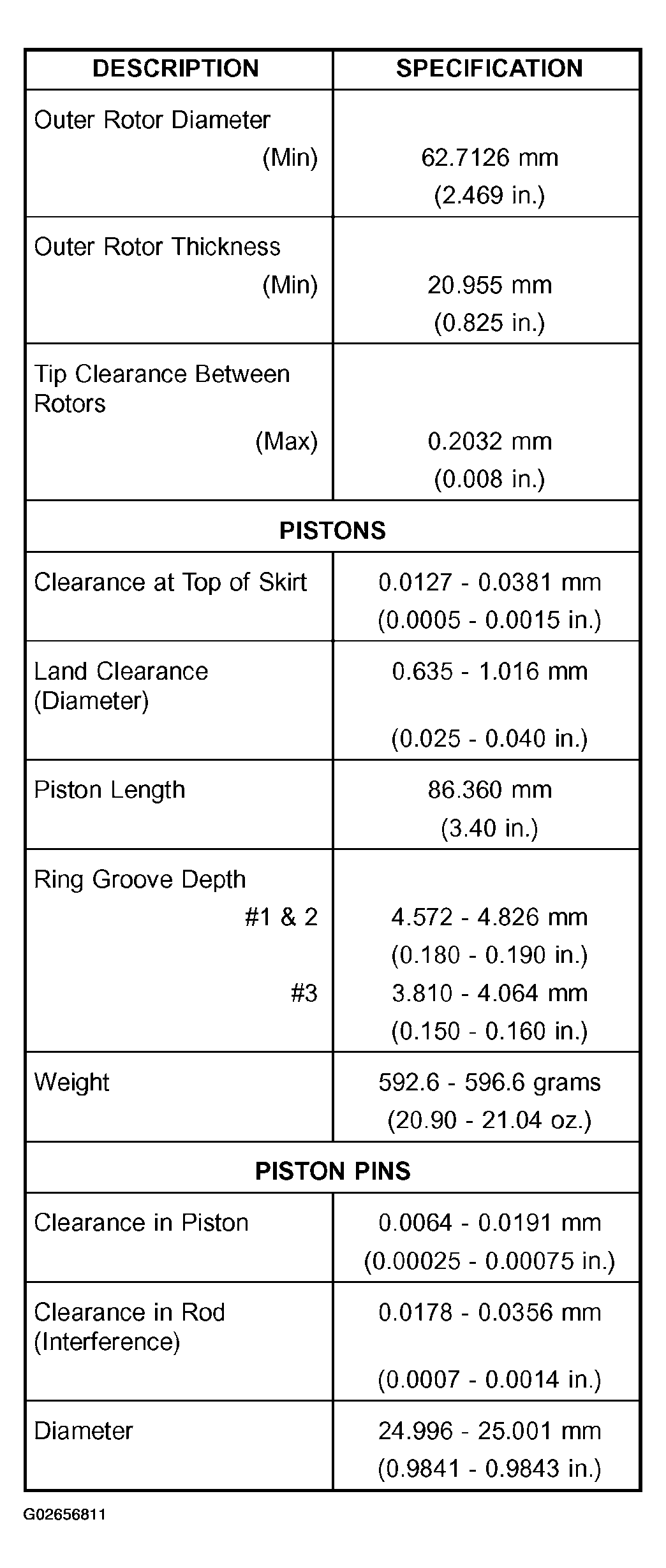

Fig 4: Engine General Description Chart (4 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

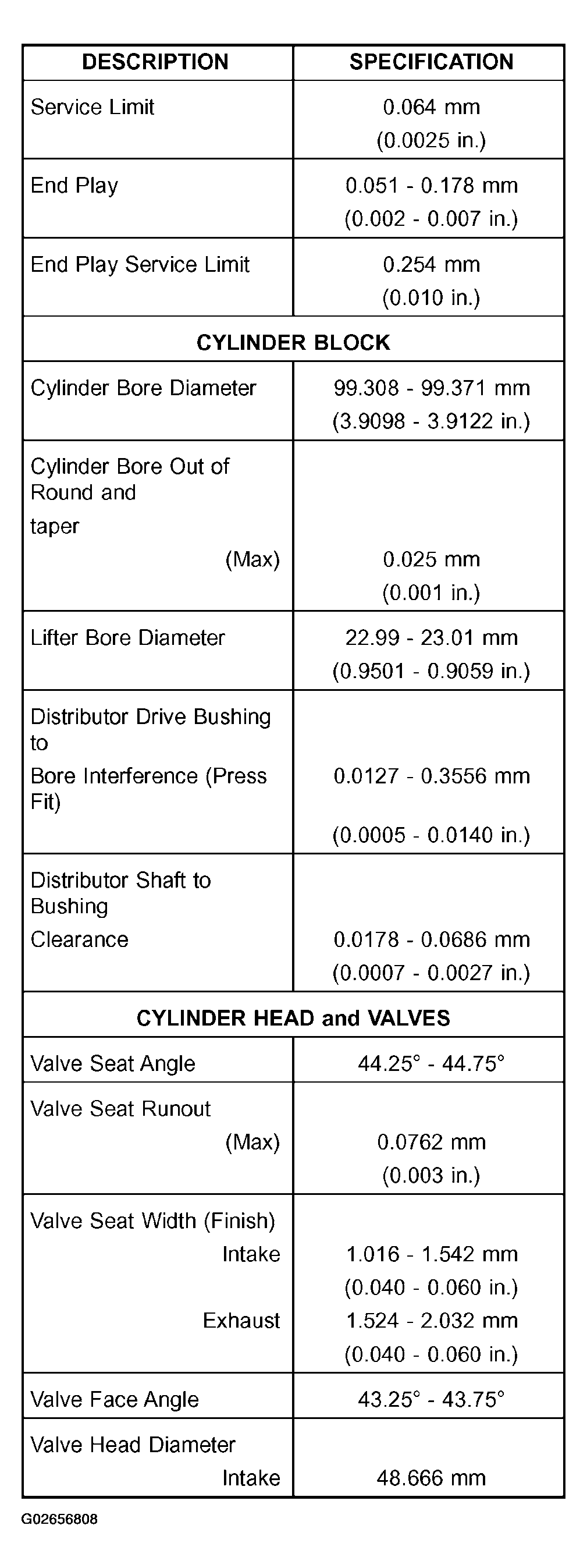

Fig 5: Engine General Description Chart (5 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

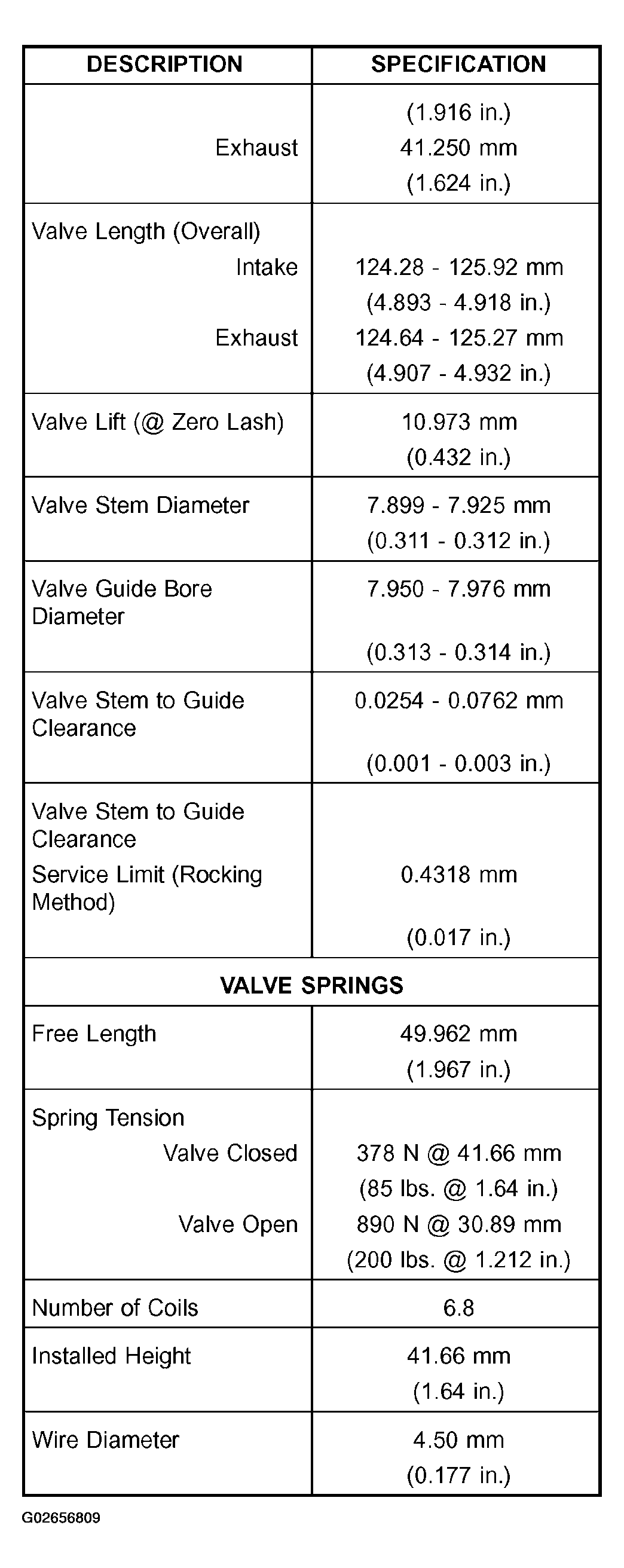

Fig 6: Engine General Description Chart (6 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

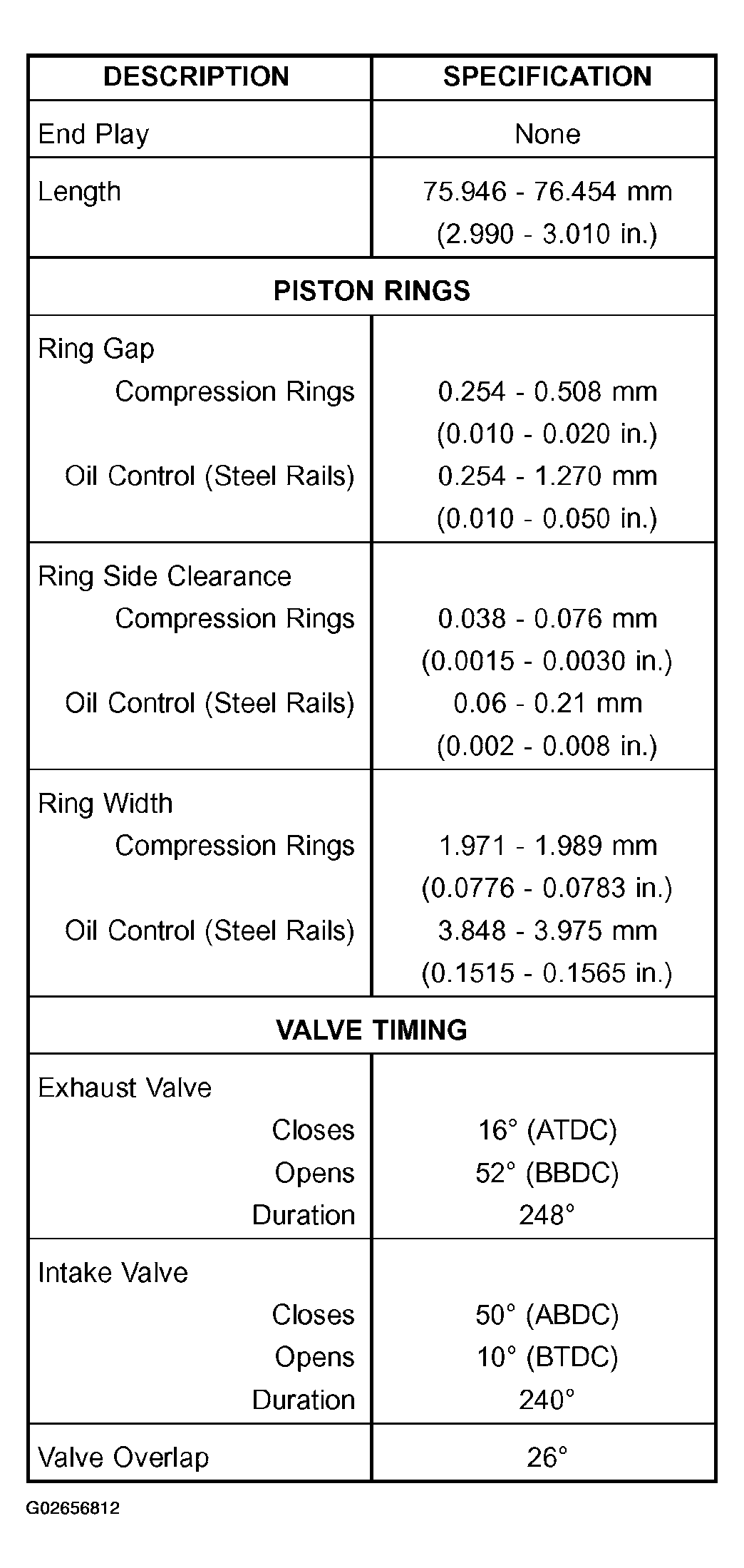

Fig 7: Engine General Description Chart (7 Of 7)
Courtesy of DAIMLERCHRYSLER CORP.

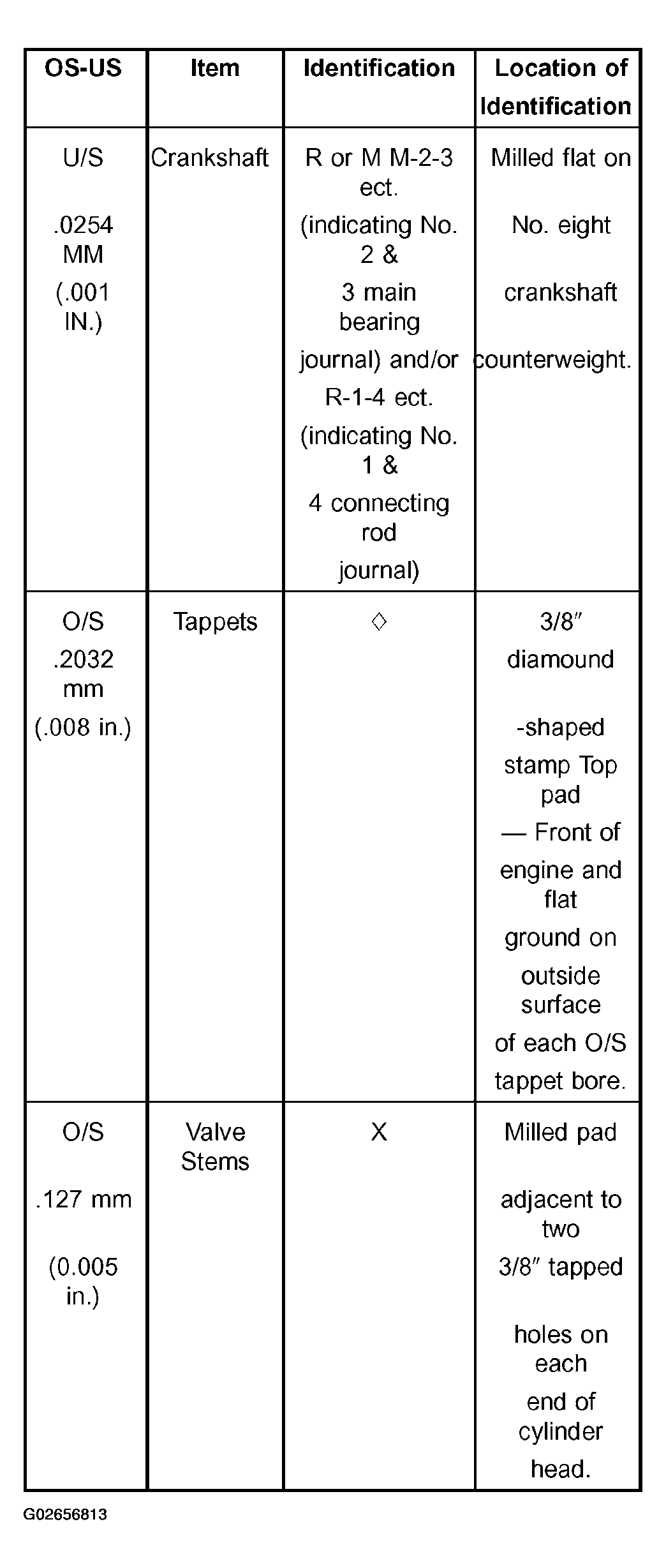

Fig 8: Oversize And Undersize Engine Component Markings Chart
