Diagnosis And Testing-Engine Diagnosis-Lubrication

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

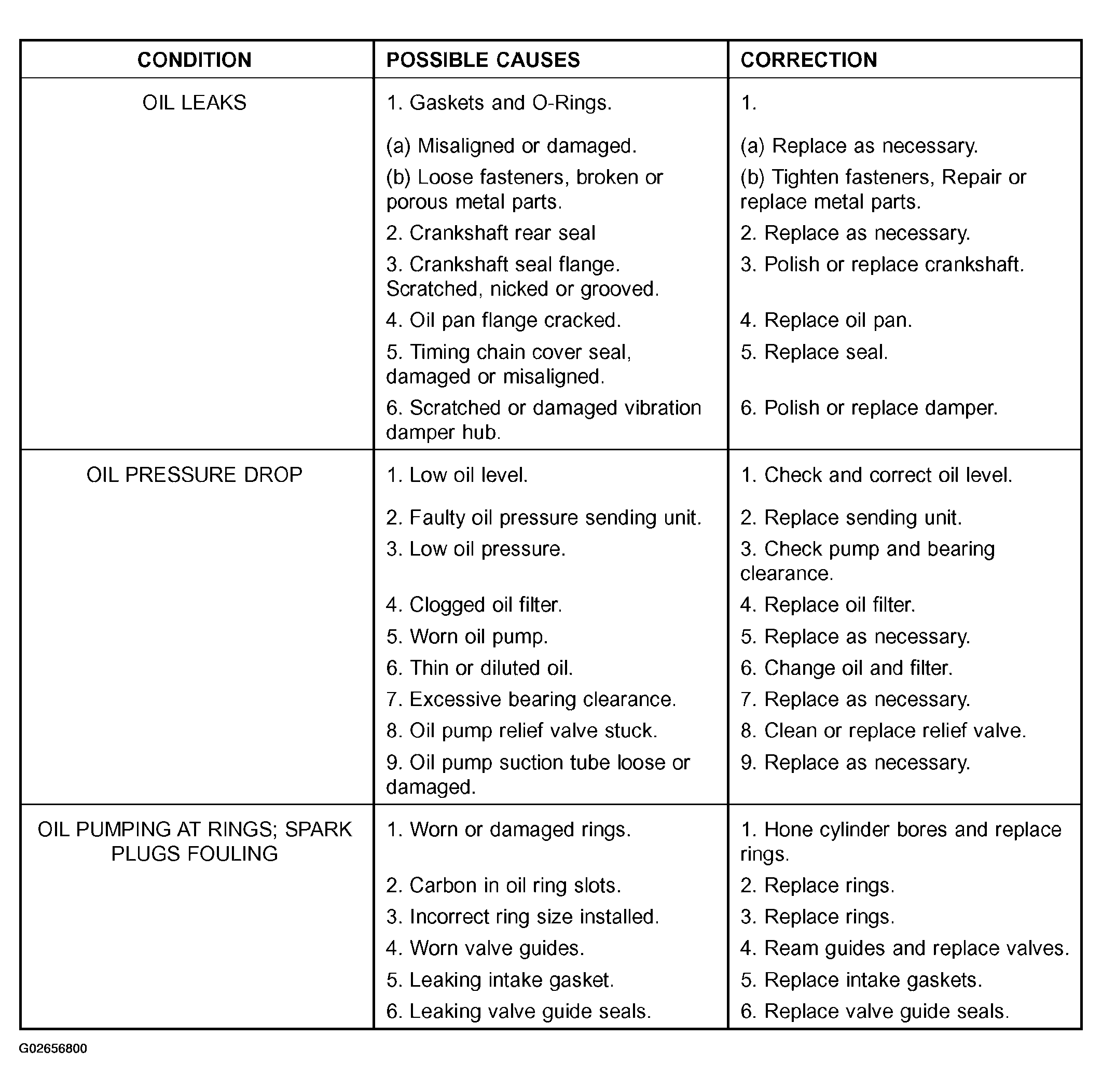

Fig 1: Engine Diagnosis-Lubrication Chart
G02656800Courtesy of DAIMLERCHRYSLER CORP.
