Diagnosis And Testing- Engine Diagnosis-Mechanical

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

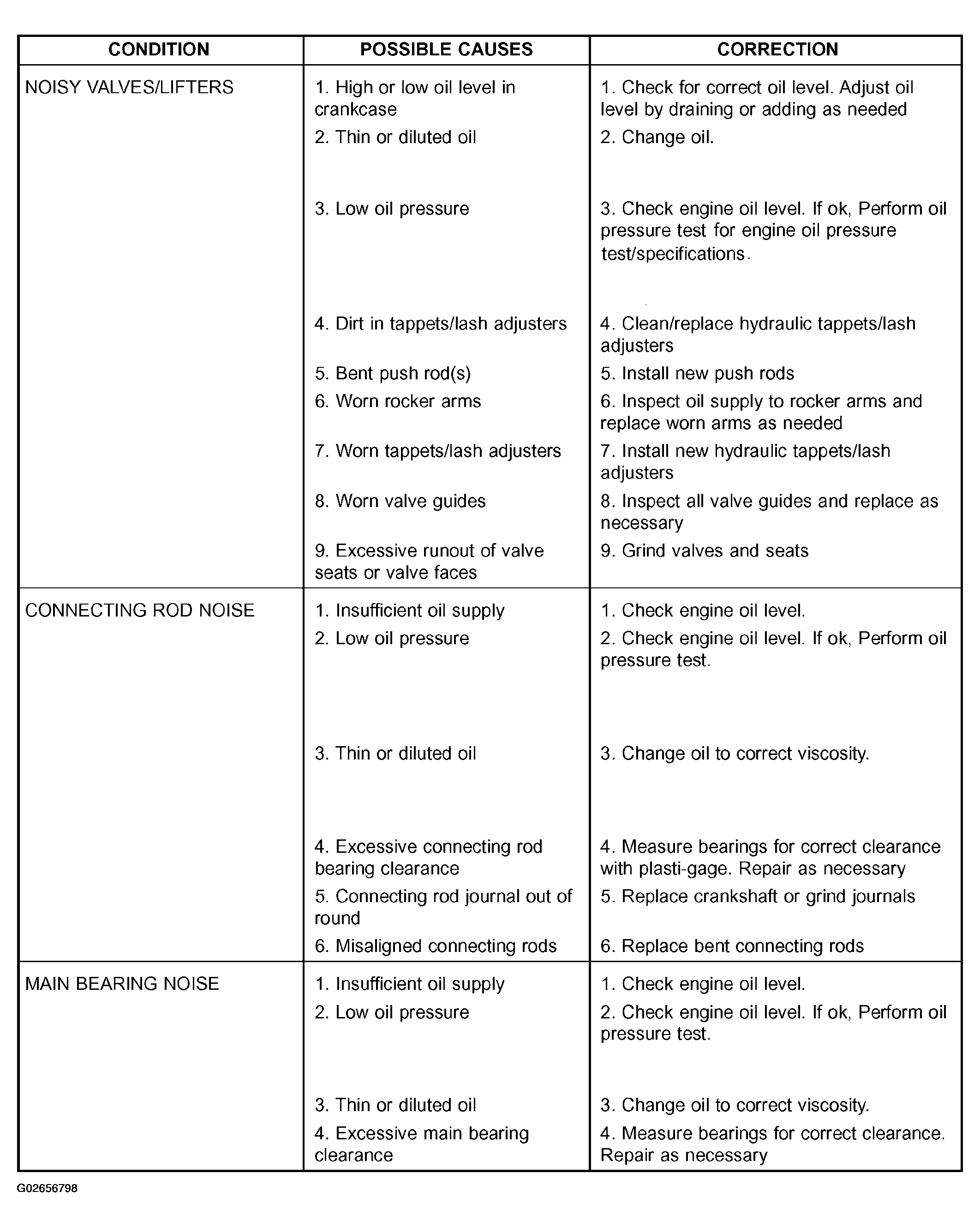

Fig 1: Engine Diagnosis-Mechanical Chart (1 Of 2)
G02656798Courtesy of DAIMLERCHRYSLER CORP.

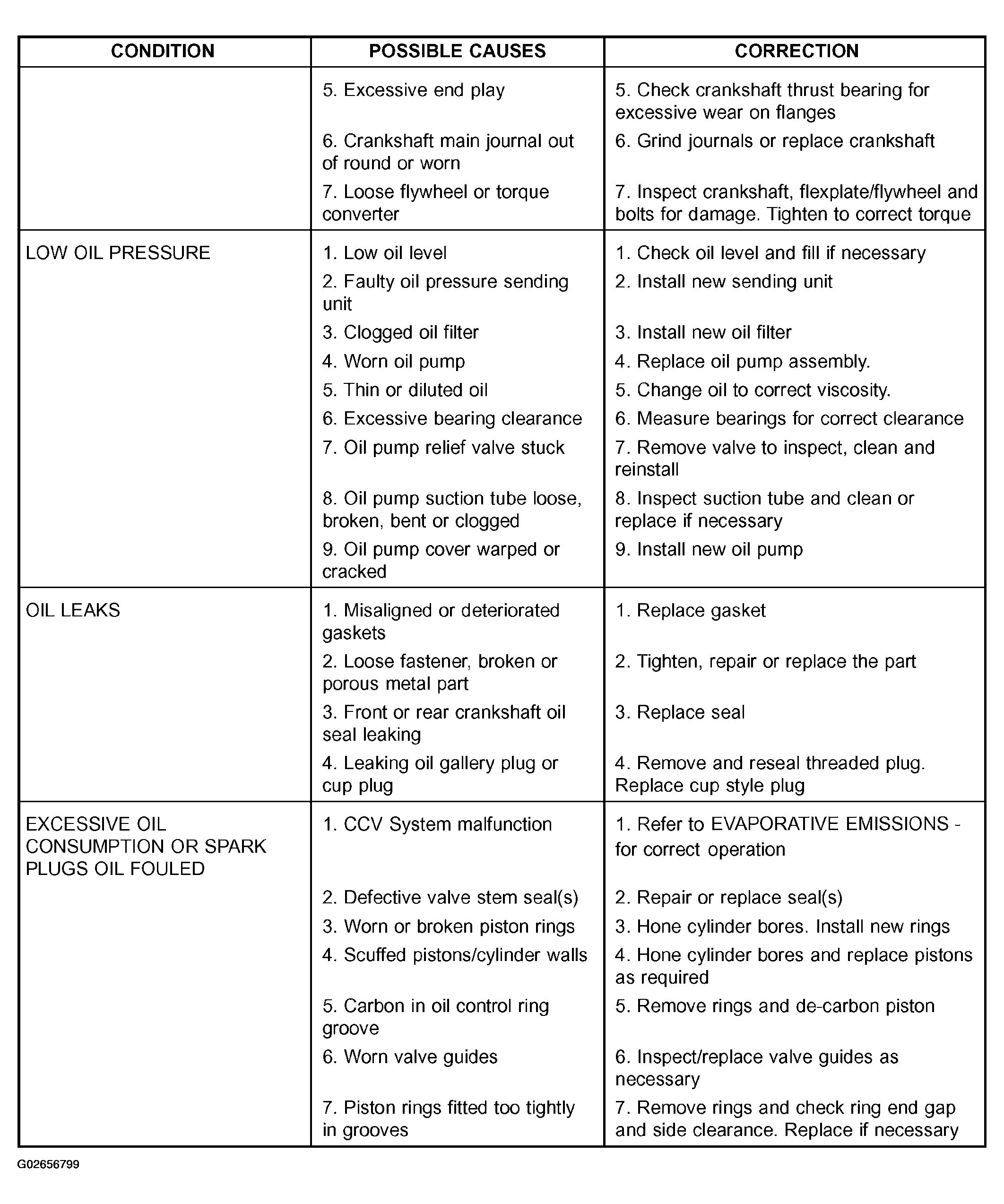

Fig 2: Engine Diagnosis-Mechanical Chart (2 Of 2)
G02656799Courtesy of DAIMLERCHRYSLER CORP.
