Distributor Bushing: Removal

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove distributor (Refer to DISTRIBUTOR ).
  2. Remove the intake manifold (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD REMOVAL  ).
  3. Insert Distributor Drive Shaft Bushing Puller Tool C-3052 into old bushing and thread down until a tight fit is obtained (Fig 1 ).

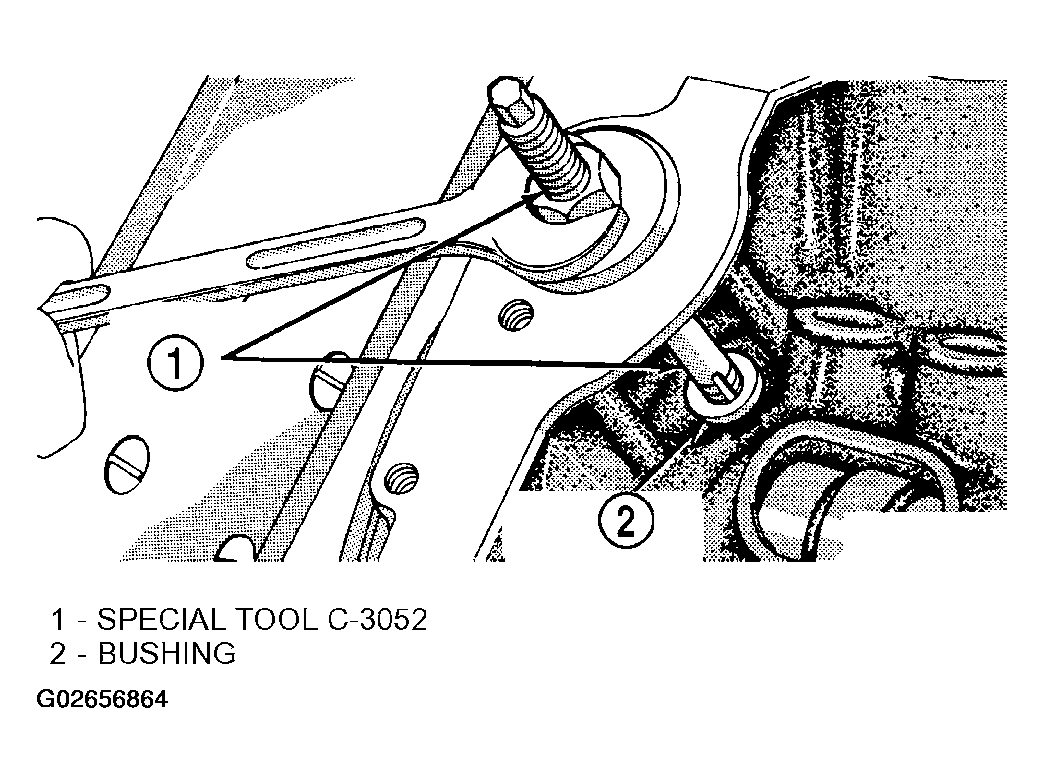

    Fig 1: Removing Distributor Driveshaft Bushing
    G02656864Courtesy of DAIMLERCHRYSLER CORP.
  4. Hold puller screw and tighten puller nut until bushing is removed.
