Distributor Bushing: Installation

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

Slide new bushing over burnishing end of Distributor Drive Shaft Bushing Driver/Burnisher Tool C-3053. Insert the tool and bushing into the bore.
Drive bushing and tool into position, using a hammer (Fig 1 ).

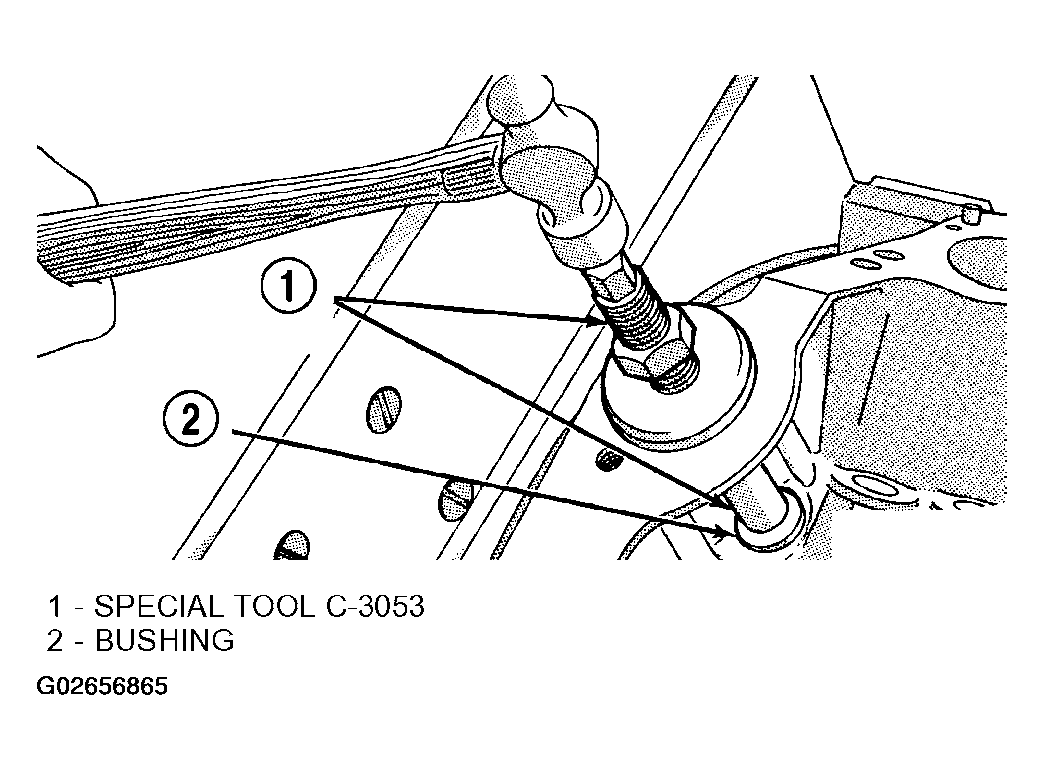

Fig 1: Installing Distributor Driveshaft Bushing
Courtesy of DAIMLERCHRYSLER CORP.
As the burnisher is pulled through the bushing, the bushing is expanded tight in the block and burnished to correct size (Fig 2 ). DO NOT ream this bushing.
CAUTION: This procedure MUST be followed when installing a new bushing or seizure to shaft may occur.

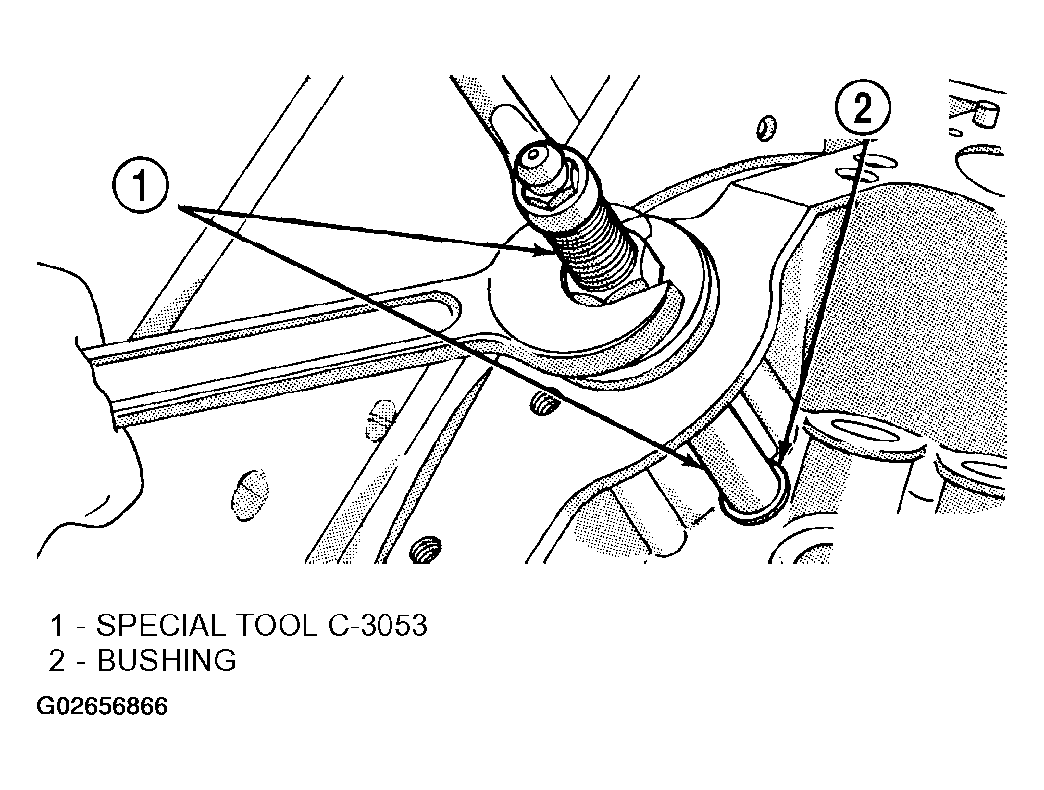

Fig 2: Burnishing Distributor Bushing
Courtesy of DAIMLERCHRYSLER CORP.
Install the intake manifold. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD-INSTALLATION ).
Install the distributor.
