Cylinder Head: Description

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.

The cast iron cylinder heads (Fig 1 ) are mounted to the cylinder block using eight bolts. The spark plugs are located in the peak of the wedge between the valves.

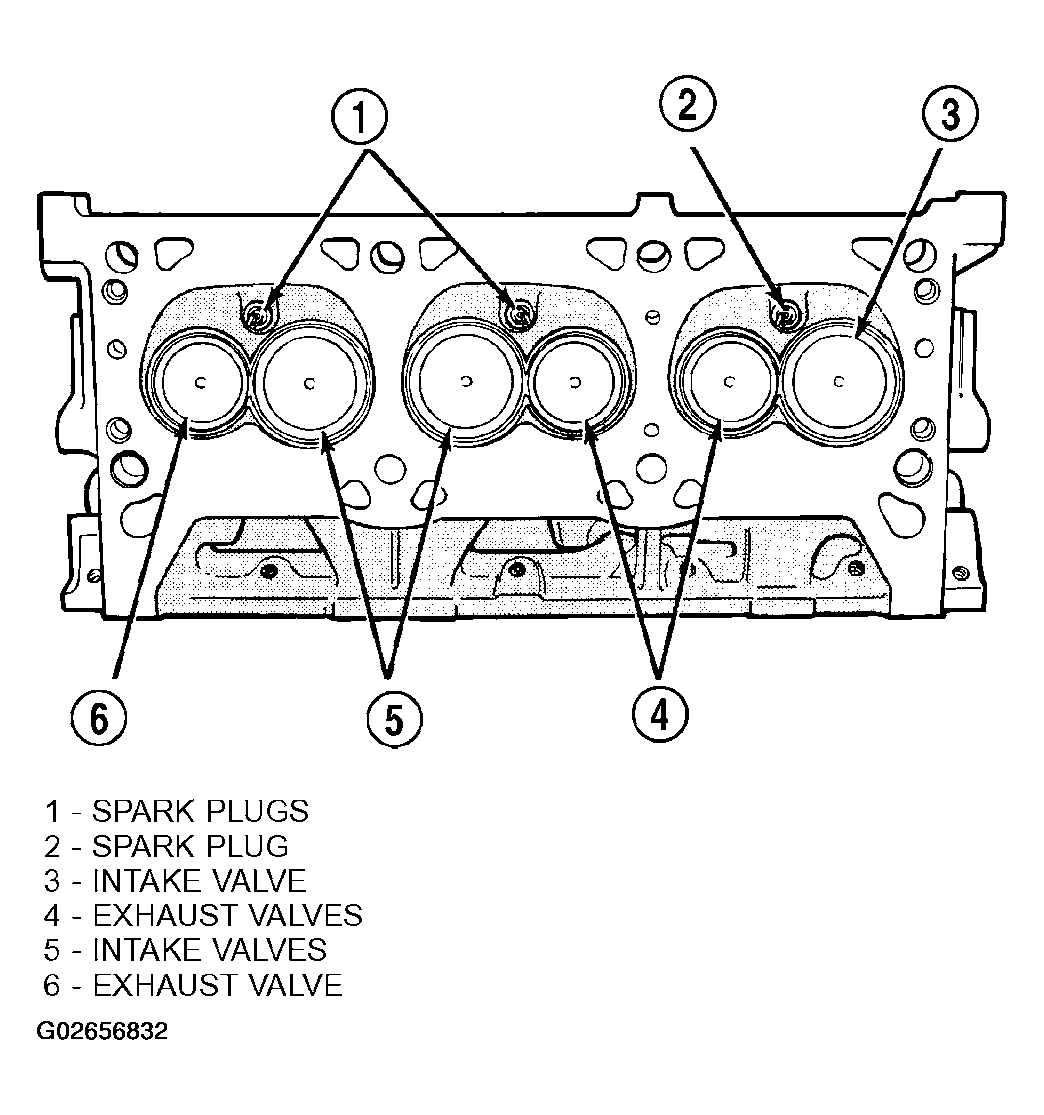

Fig 1: Identifying Inlet Valve, Exhaust Valve And Spark Plug Holes On Cylinder Block

Courtesy of DAIMLERCHRYSLER CORP.
