Camshaft & Bearings (In Block): Removal: Removal-Camshaft

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery negative cable.
  2. Remove radiator. (Refer to RADIATOR ).
  3. Remove intake manifold. (Refer to ENGINE/MANIFOLDS/INTAKE MANIFOLD-REMOVAL  ).
  4. Remove distributor assembly (Refer to DISTRIBUTOR ).
  5. Remove cylinder head covers (Refer to ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S)-REMOVAL  ).
  6. Remove rocker arms .
  7. Remove push rods and tappets (Refer to ENGINE/ENGINE BLOCK/HYDRAULIC LIFTERS (CAM IN BLOCK)-REMOVAL  ). Identify each part so it can be installed in the original locations.
  8. Remove timing chain cover. (Refer to ENGINE/VALVE TIMING/TIMING BELT / CHAIN COVER(S)-REMOVAL  ).
  9. Align timing marks (Fig 1 ) and remove timing chain and sprockets.

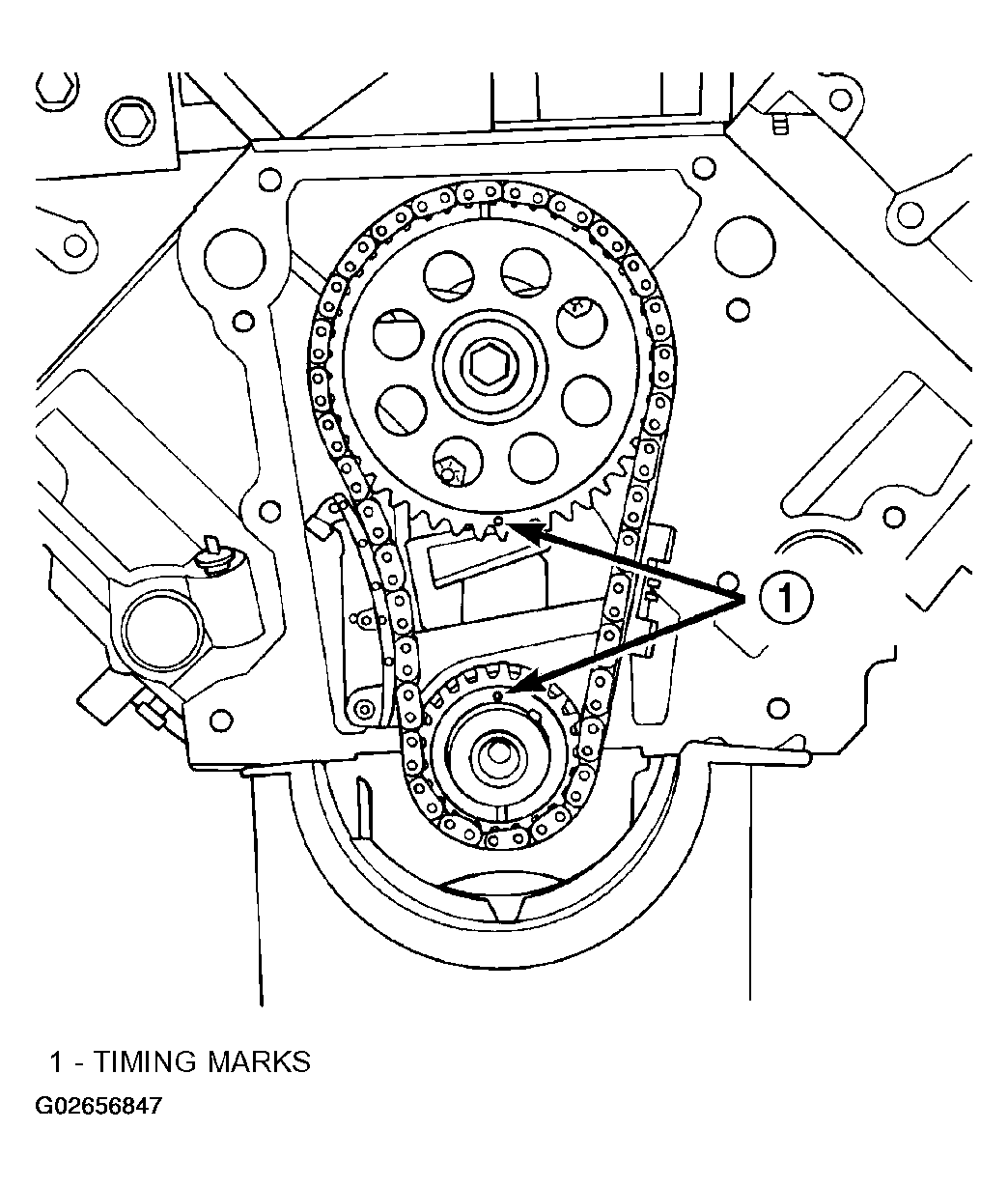

    Fig 1: Aligning Timing Marks On Crankshaft And Camshaft Sprocket
    G02656847Courtesy of DAIMLERCHRYSLER CORP.
  10. Remove the three tensioner to block mounting bolts and remove tensioner.
  11. Install a long bolt into front of camshaft to aid in removal of the camshaft. Remove camshaft, being careful not to damage cam bearings with the cam lobes.
