Removal-Camshaft Bearings

WARNING: This page is about a different car, the 2003 Dodge Dakota. However, it is still accessible from the selected car via links, so may be relevant.
  1. With engine completely disassembled, drive out rear cam bearing core hole plug.
  2. Install proper size adapters and horseshoe washers (part of Camshaft Bearing Remover/Installer Tool C-3132-A) at back of each bearing shell. Drive out bearing shells (Fig 1 ).

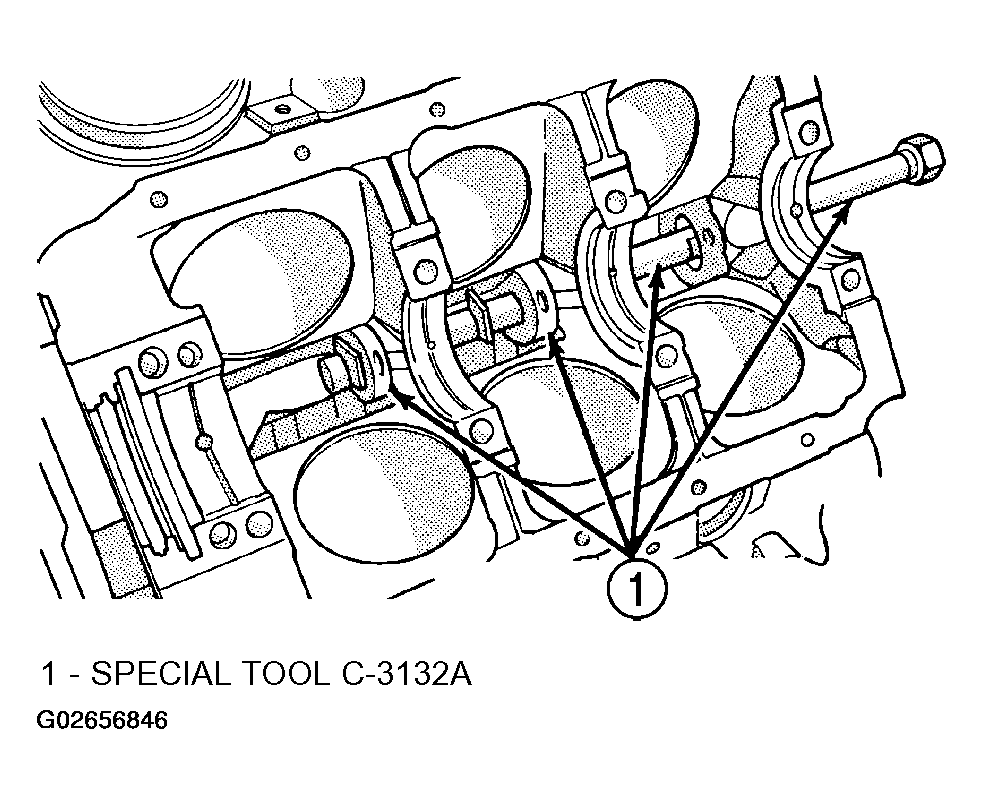

    Fig 1: Removing And Installing Camshaft Bearings By Tool C-3132-A
    G02656846Courtesy of DAIMLERCHRYSLER CORP.
